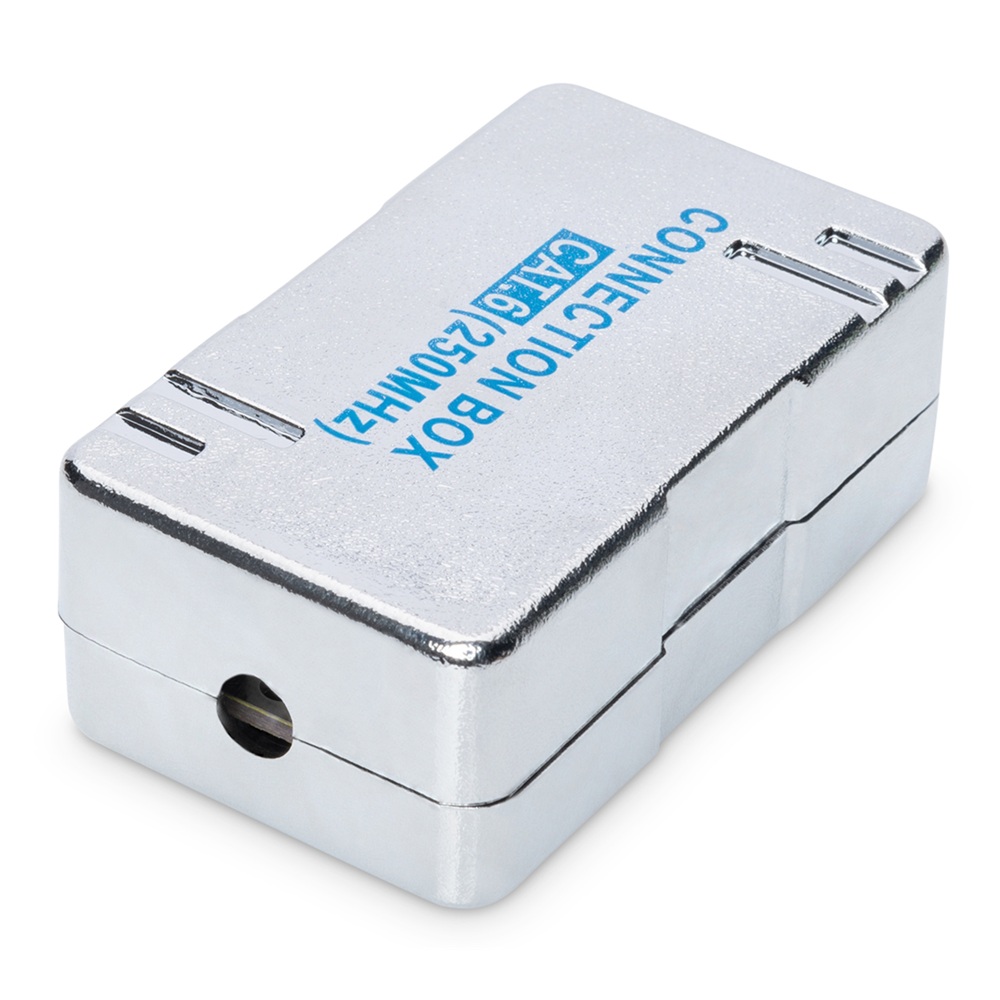

DIGITUS CAT 6 Connection module for Twisted Pair Cables
Product number: DN-93903
EAN: 4016032267133
connection module for twisted pair cables LSA, shielded, CAT 6

Future-oriented standards and high-end quality for your network.

Description
The DIGITUS® Connection module is for the purpose of connecting or extention of Twisted Pair Cables.

Technical details
Transmission properties: Category 6
Area of application: Up to 250 MHz, 1GBase-T
Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
General properties:
Suitable for installation in trunking, surface and flush mount

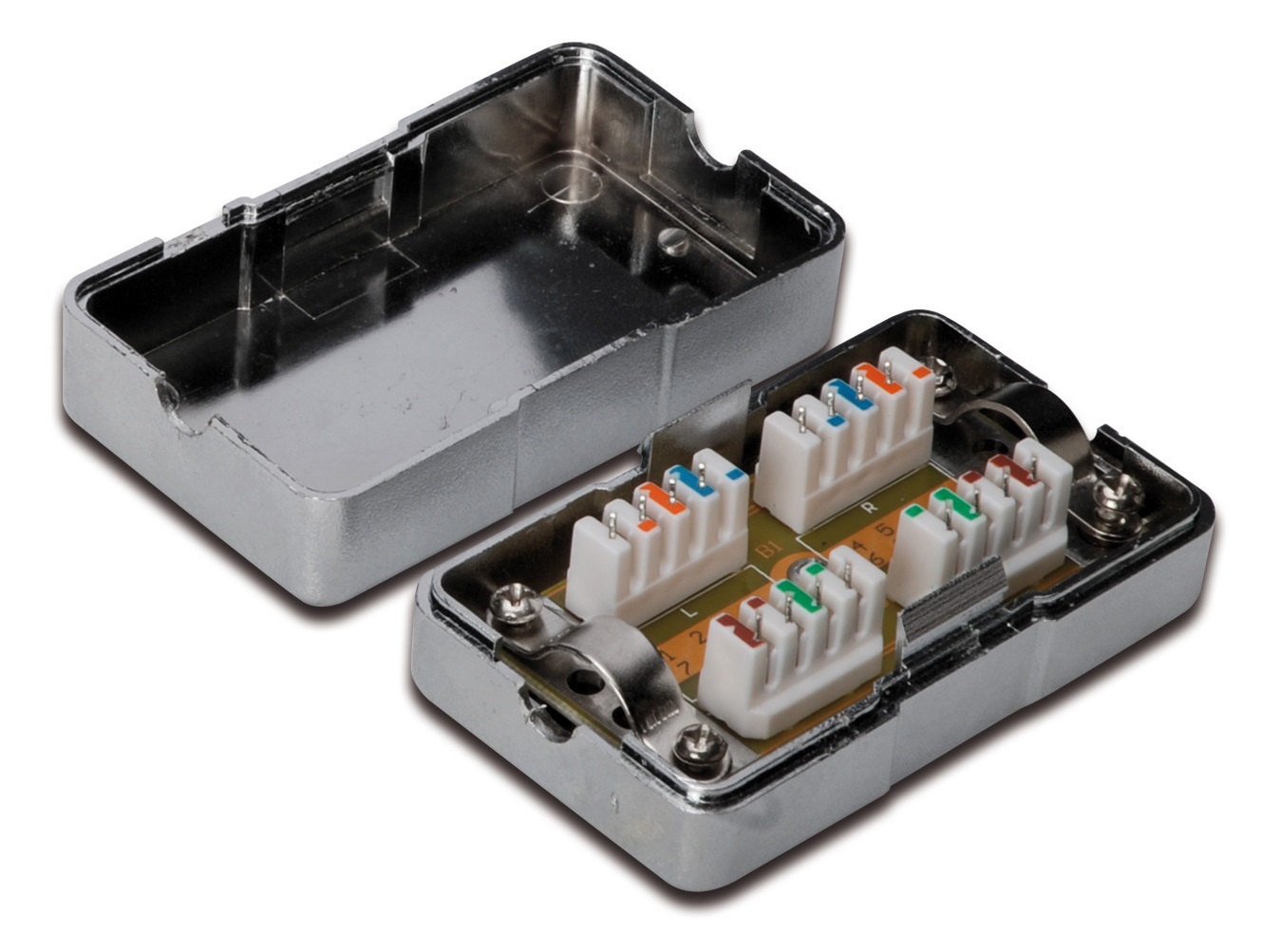

Cable installation via LSA stripes, color-coded as per EIA/TIA 568 A - B
Suitable for connection of installation cables - extension of cables, replacing of defect cable links
Integrated strain relief for installation cables
Suitable for cables with AWG 22-26 diameter
Technical properties:
Housing material: ABS UL-94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
RJ45 shielding: Tinned bronze
LSA termination clamp: Krone LSA+, UL 94V-0, zinc plated phosphor bronze
Conductor plate: FR4, UL 94V-0
Physical properties:
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
IDC wire size: 22 – 26 AWG solid and stranded conductor
Insulation resistance: - 500 MOhm
Contact resistance: - 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
