Quick and safe wire terminations without any special tool

Transmission properties: Category 6A, Class EA
Area of application: Up to 500 MHz, 10GBase-T
Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
General properties:
Suitable for patch panels and mounting outlets
RJ45 female, 8P8C
Cable installation via LSA strips, color coded according to EIA/TIA 568 A - B

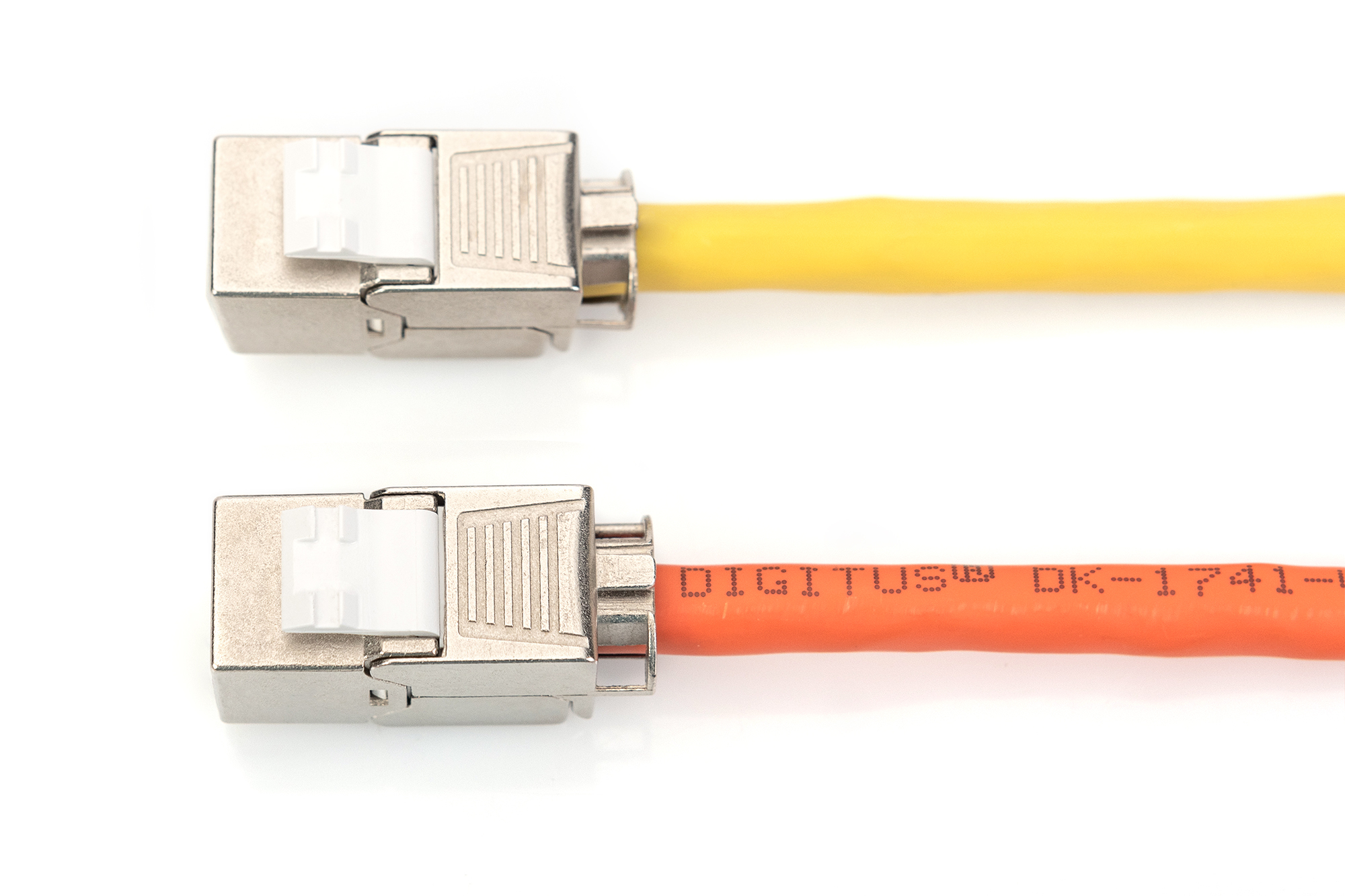

Cable fixing with cable tie
Tool-free installation
360° shield coverage
Dust cover included
Technical properties:
Housing material: Zinc die-cast, nickel-plated
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
RJ45 shielding: Tinned bronze
LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
Conductor plate: FR4, UL 94V-0
Physical properties:
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Mating cycles female: - 750 acc. to ISO/IEC 11801, IEC 60603-7-5
Clamp: - 200 acc. to ISO/IEC 11801, IEC 60603-7-5
IDC wire size: 22 – 26 AWG solid and stranded conductor
Insulation resistance: - 500 MOhm
Contact resistance: - 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)

Dimensions (HxWxD): 20,14,34 mm
Weight: 22 g
