Technical Specification

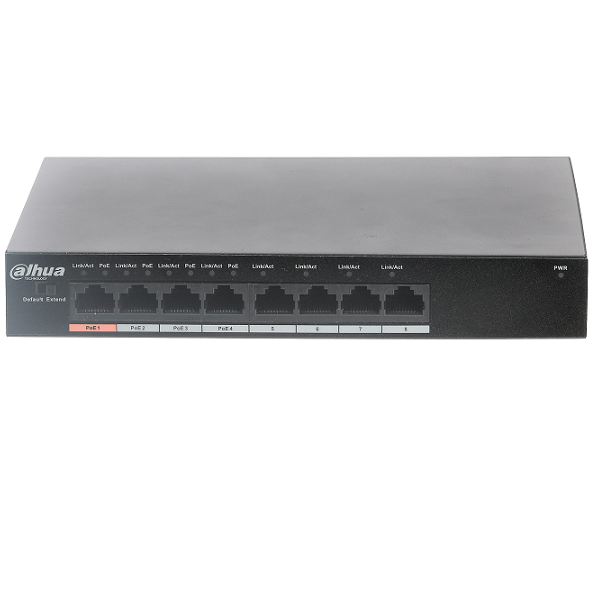

Model PFS3008-8ET-60
Ethernet Port 4*10/100 Mbps PoE ports 4*10/100Mbps ports
PoE Power Consumption Port1≤60W, Port2-4≤30W, Total≤60W
PoE Protocol IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
Switching Capacity 1.8Gbps
Packet Forwarding Rate 1.19Mpps
Packet Buffer Memory 768Kb
MAC Table Size 2K
Flow Control Enable by default
Application Humidity 10%~90%
Power DC48~57V power adapter
Lightning Protection Common Mode 2KV Differential Mode 0.5KV
Working Temperature -10°C~+55°C
Weight 0.48kg
Dimension(W×D×H) 190mm×100mm×30mm
