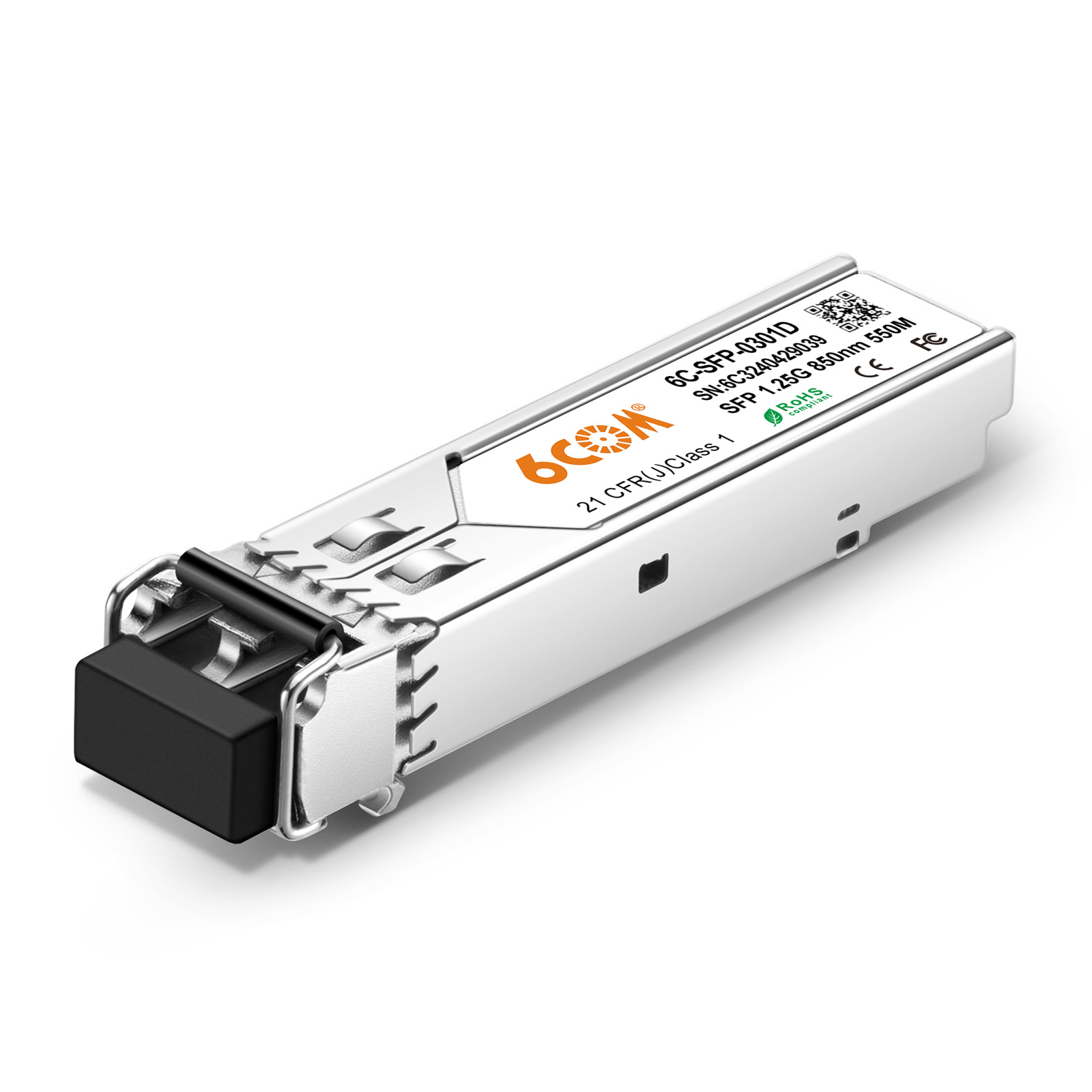

6C-SFP-0301D 1000BASE-SX SFP 850nm 550m Optical Transceiver Module

Features
1. DDM Duplex LC Connector
2. Max. Power Consumption 0.8W
3. For Campus Networks, Enterprise LAN Networks, and other optical links
4. Compatible with 100+ Vendors
5. Compliant with SFF-8472 and SFP MSA

Application
Campus Networks, Enterprise LAN Networks

Parameters Table
Part Number 6C-SFP-0301D Vendor Name 6COMGIGA
Form Factor SFP Data Rate 1.25Gbps
Wavelength 850nm Distance 550m
Connector LC Duplex Cable Type OM2 MMF
Transmitter Type VCSEL Receiver Type PIN
TX Power -9.5 ~ -3dBm Receiver Sensitivity - -18dBm
Power Consumption - 0.8W Temperature 0 to 70°C (32 to 158°F)
DDM Support Bit Error Ratio (BER) 1E-12
Protocols IEEE 802.3z, SFF-8472, SFP MSA Compliant Warranty 3 Years
