DIGITUS 483 mm (19“) DIN Rail Holder, 4U
Product number: DN-19-DIN-4U
EAN: 4016032456100

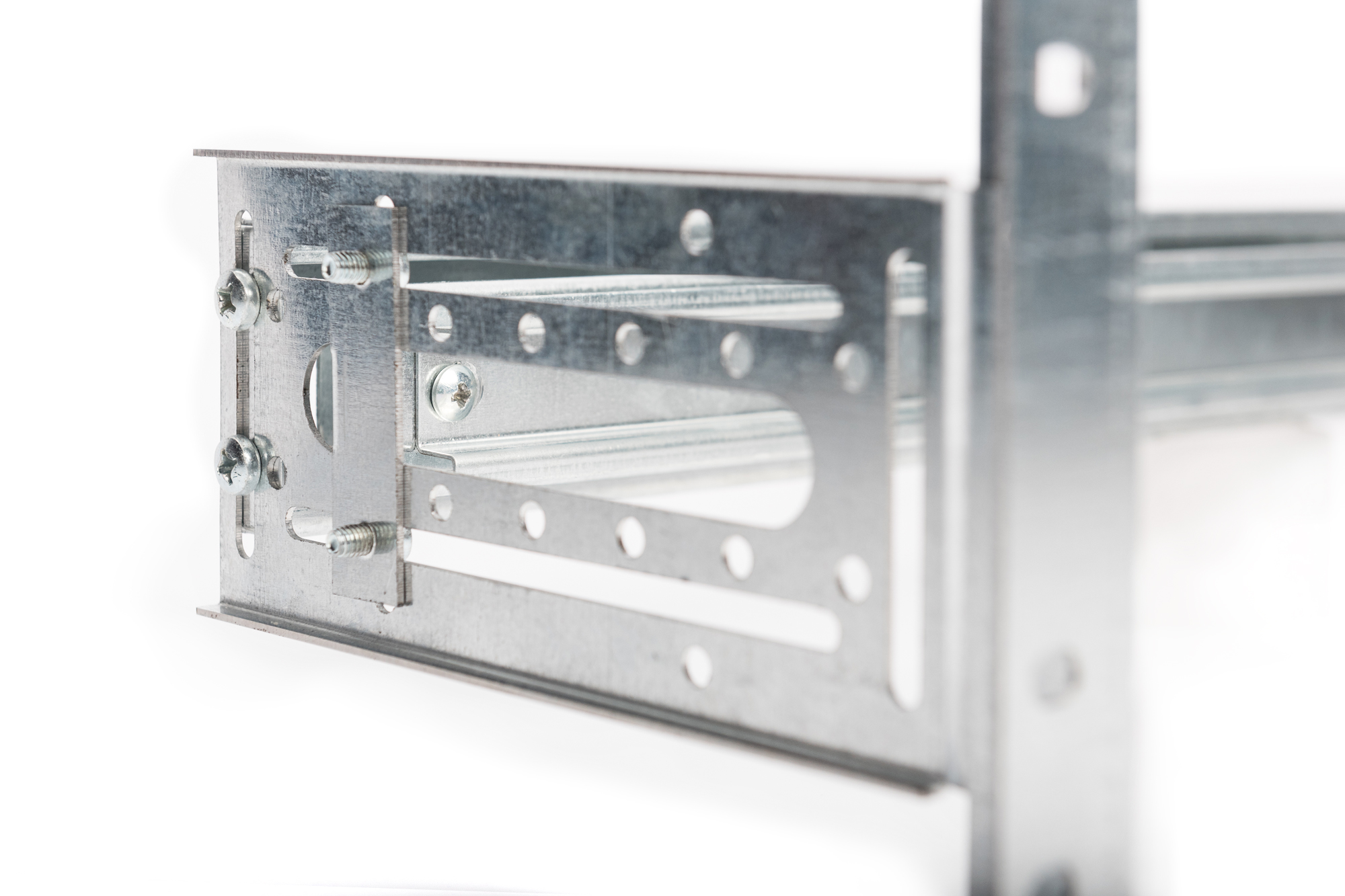

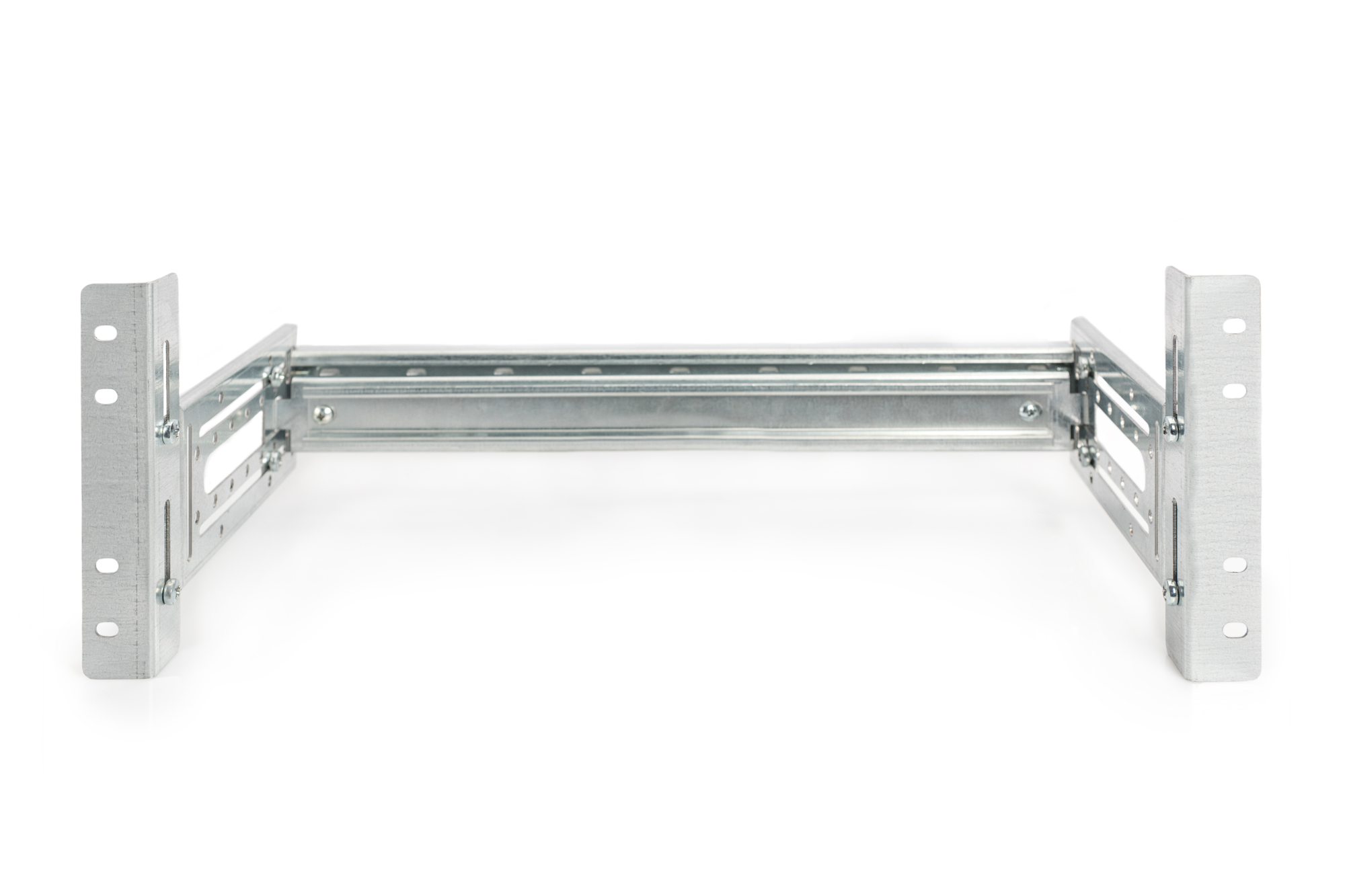

DIN rail holder, 4U, 178x483x223 mm, galvanized incl. din rail, variable depth and height

For quick and screwless mounting of 35 mm DIN rail equipment

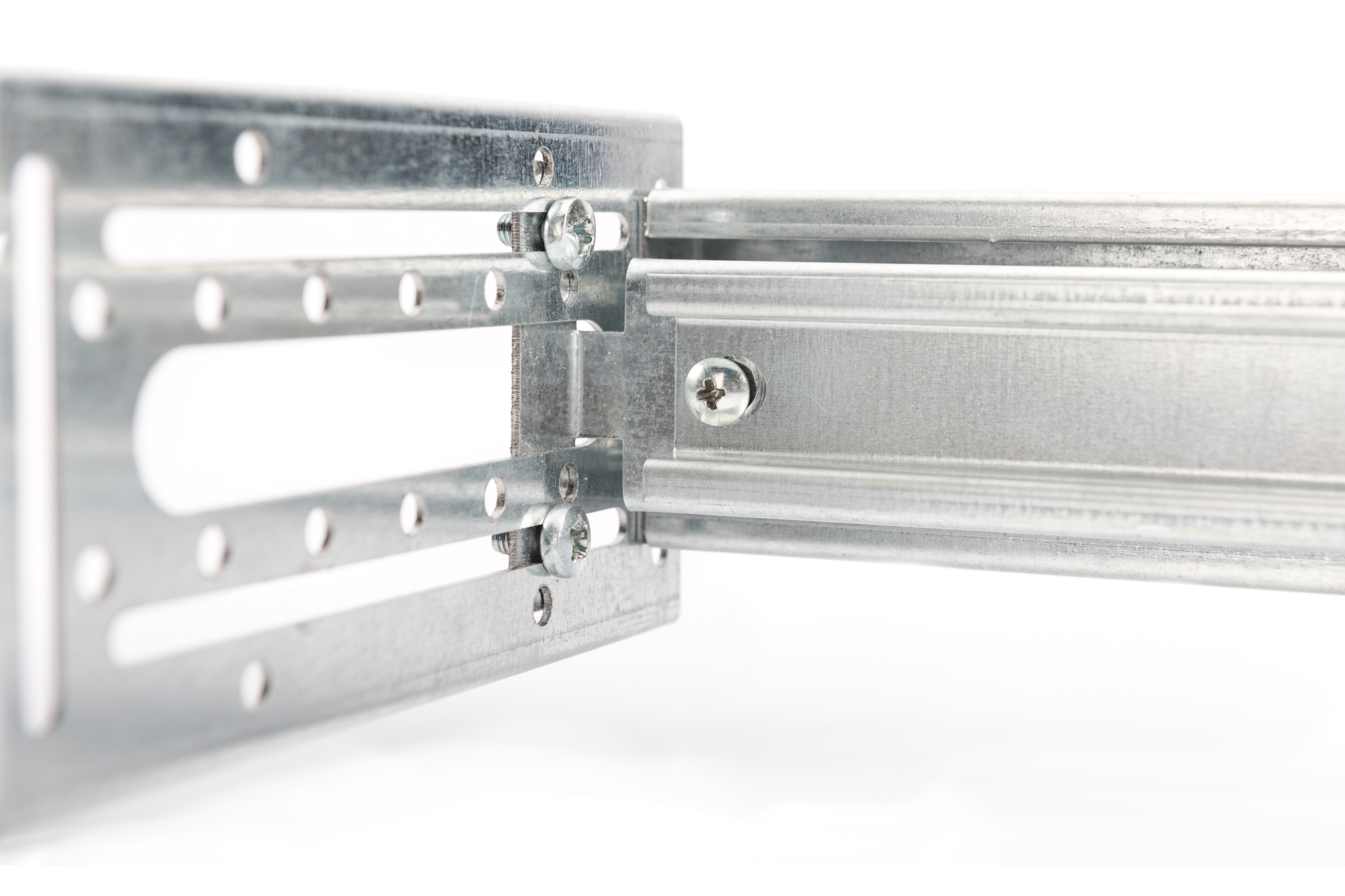

Incl. mounted DIN rail acc. to DIN EN 60715 (HxW= 35x390 mm), variable in depth

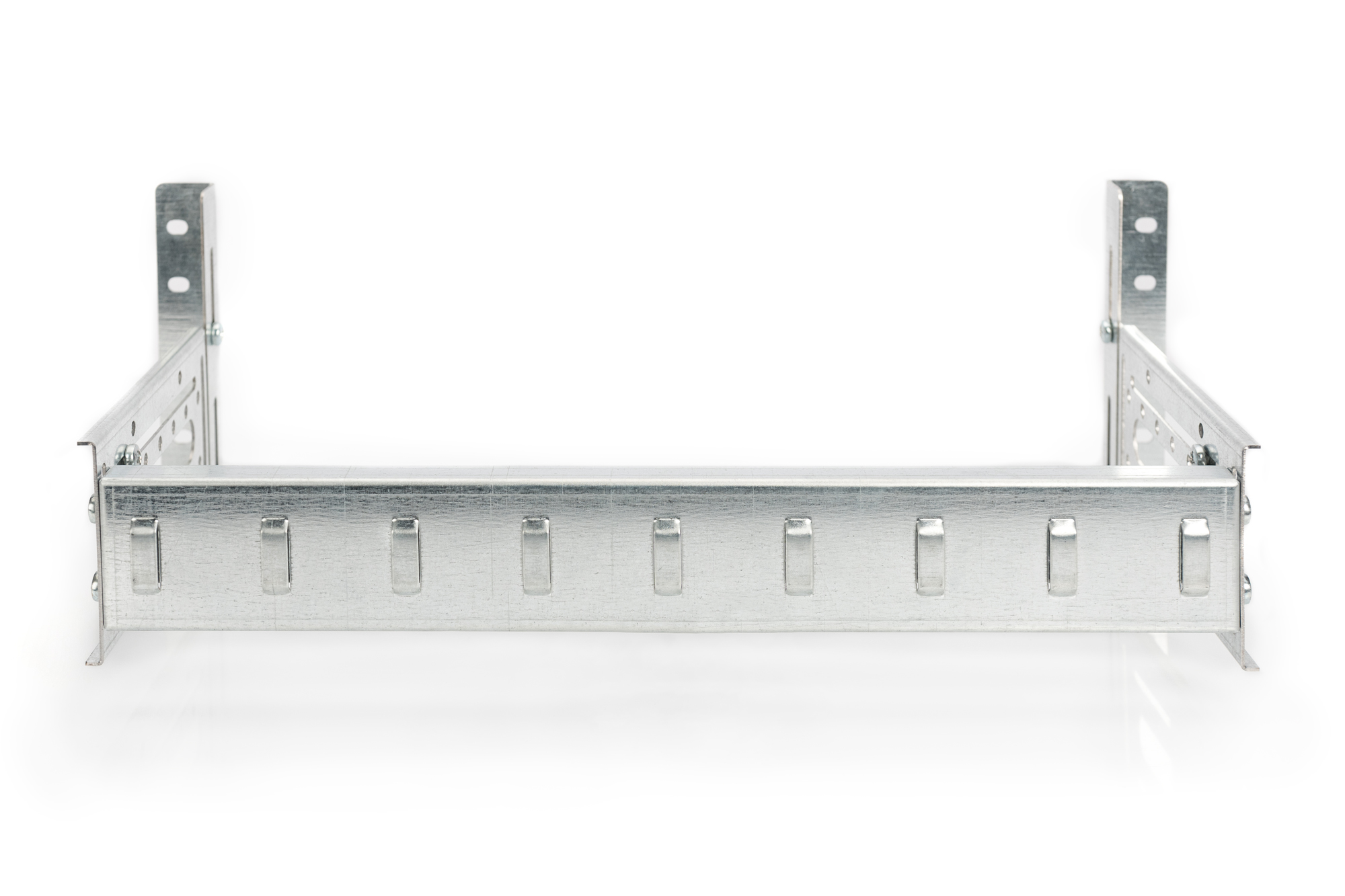

Rear side with c shaped cable tray for optimized cabling, variable in height

DESCRIPTION

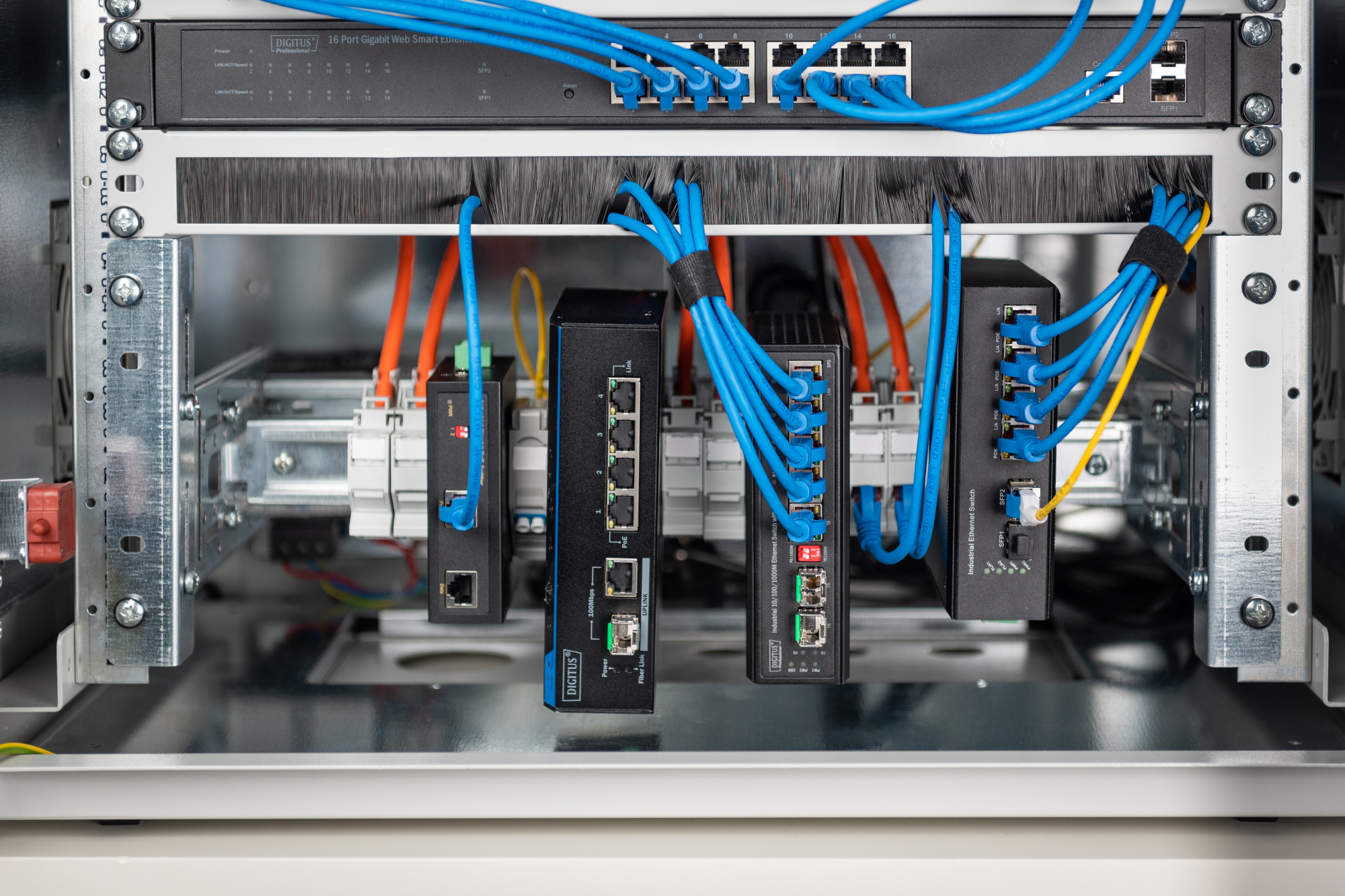

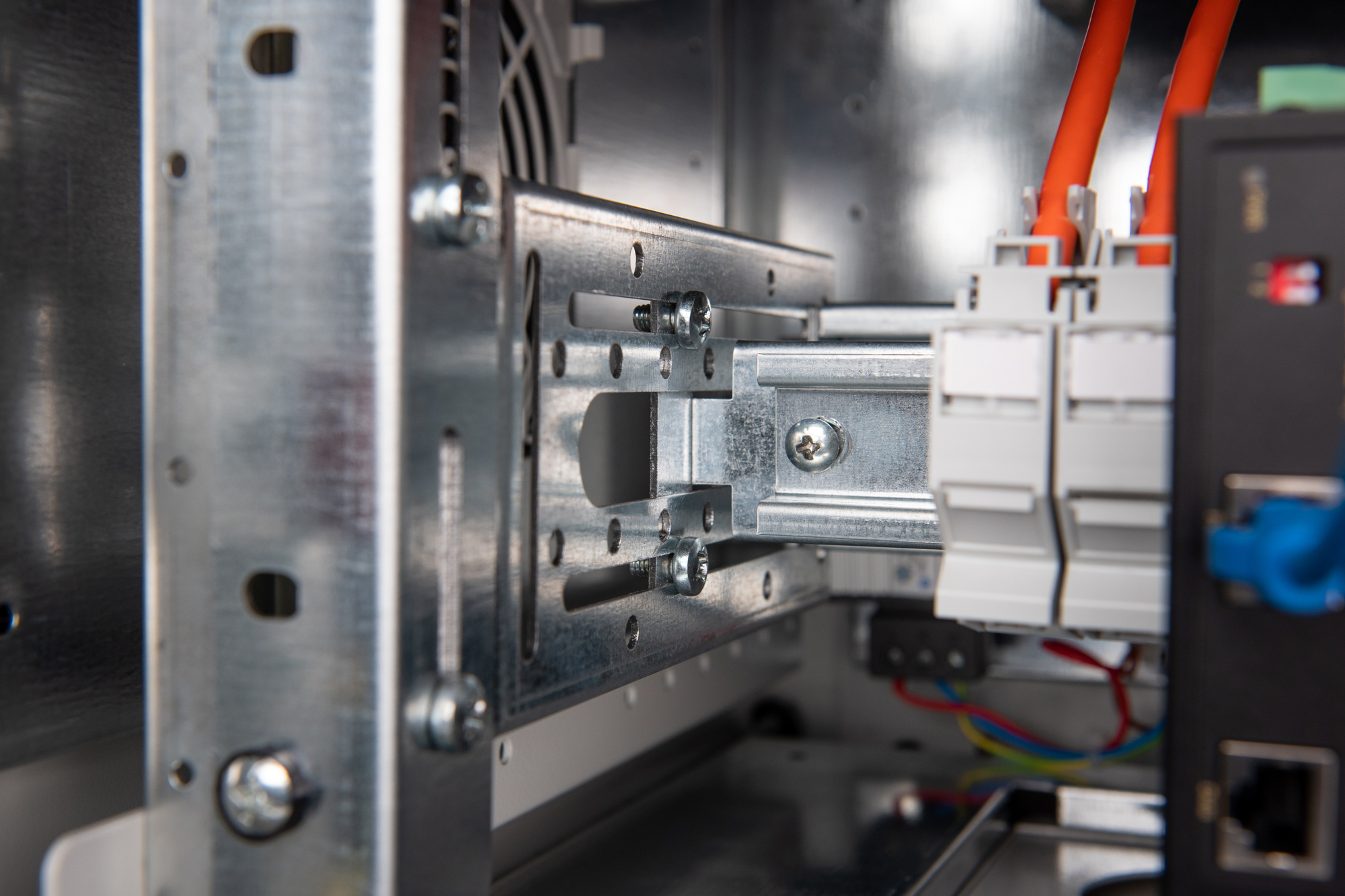

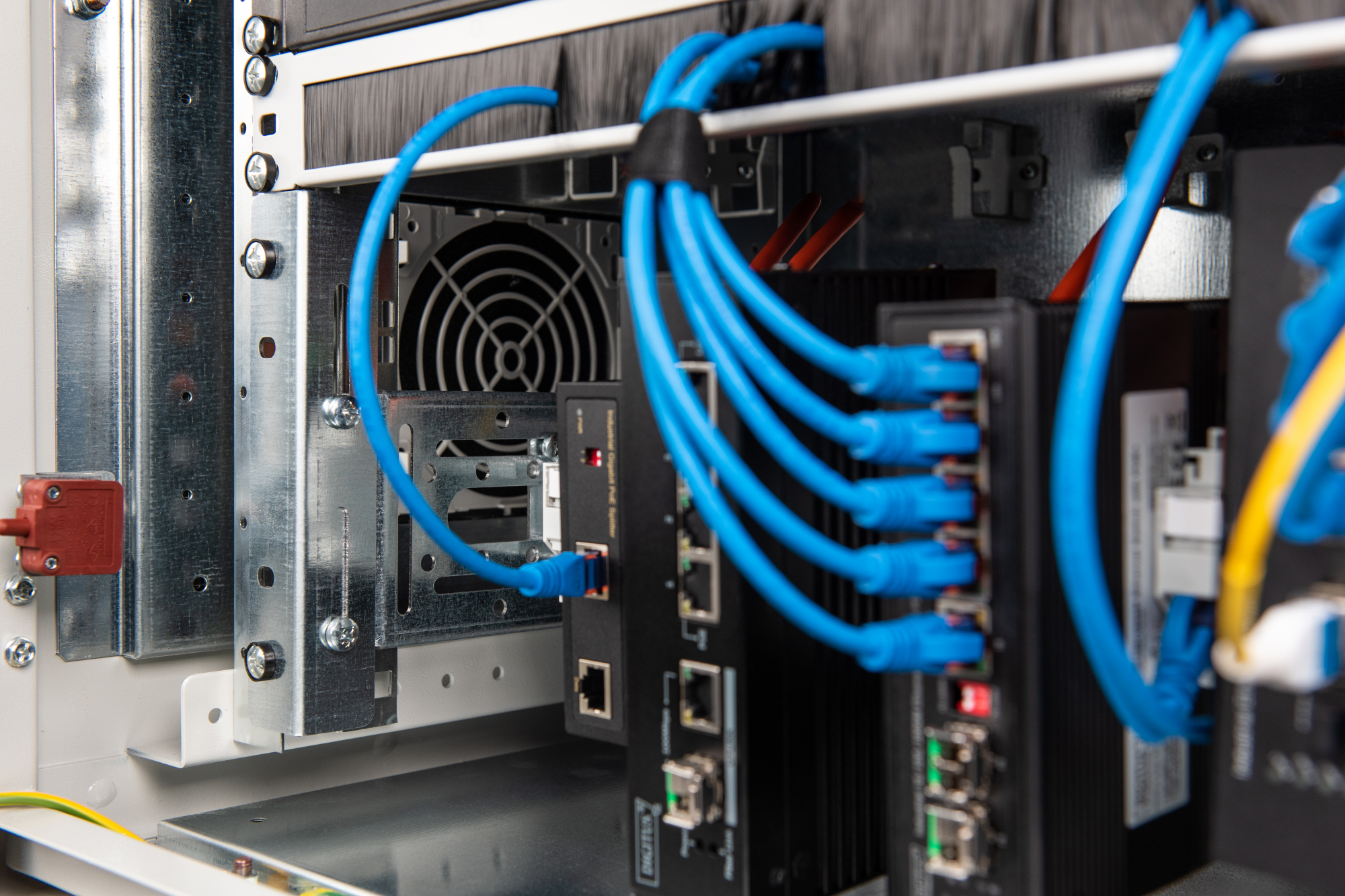

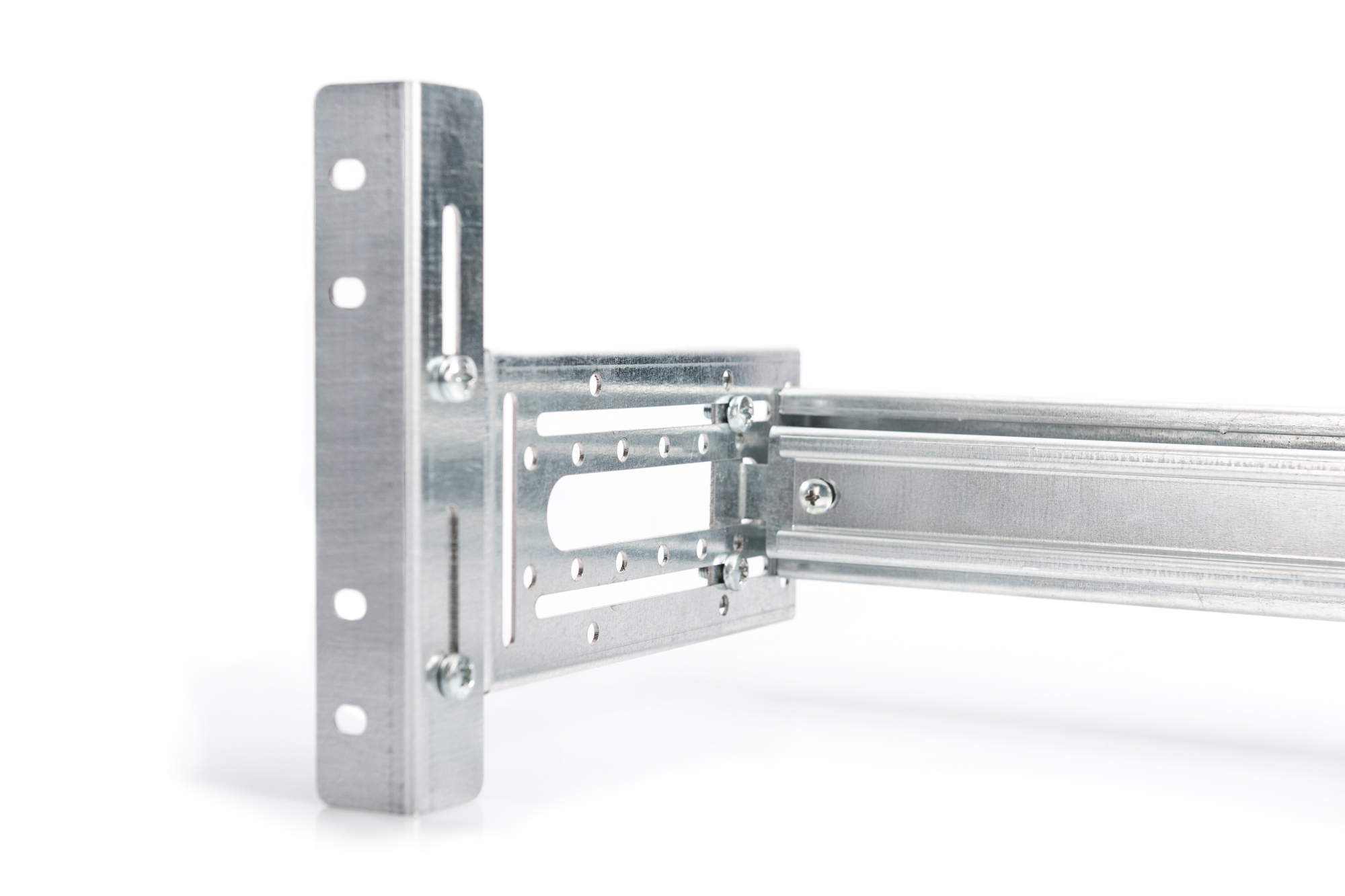

The 483 mm (19“) DIN Rail Holder makes the installation of suitable equipment on the already mounted 390 mm width DIN rail possible. It is variable in depth and can be turned 90° up or down to install the components horizontally if necessary. The rear side is equipped with a height variable C shaped cable tray with fixing points for tape or cable ties. The complete frame can also be adjusted in height (4U brackets are fixed in the rack) to suit individual needs of space.

TECHNICAL DETAILS
galvanized steel sheet
Load capacity: 20 kg
PACKAGE CONTENT
Installation set (screws, cage nuts, washers)
