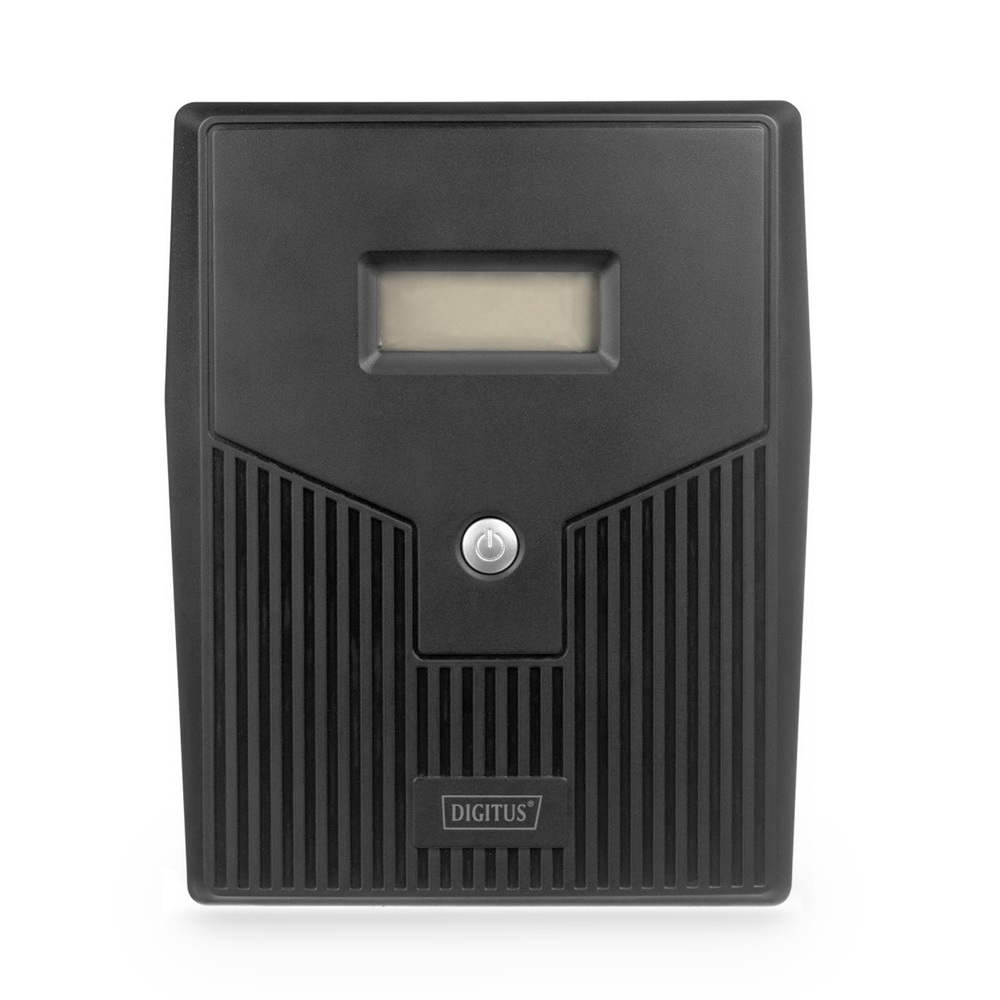

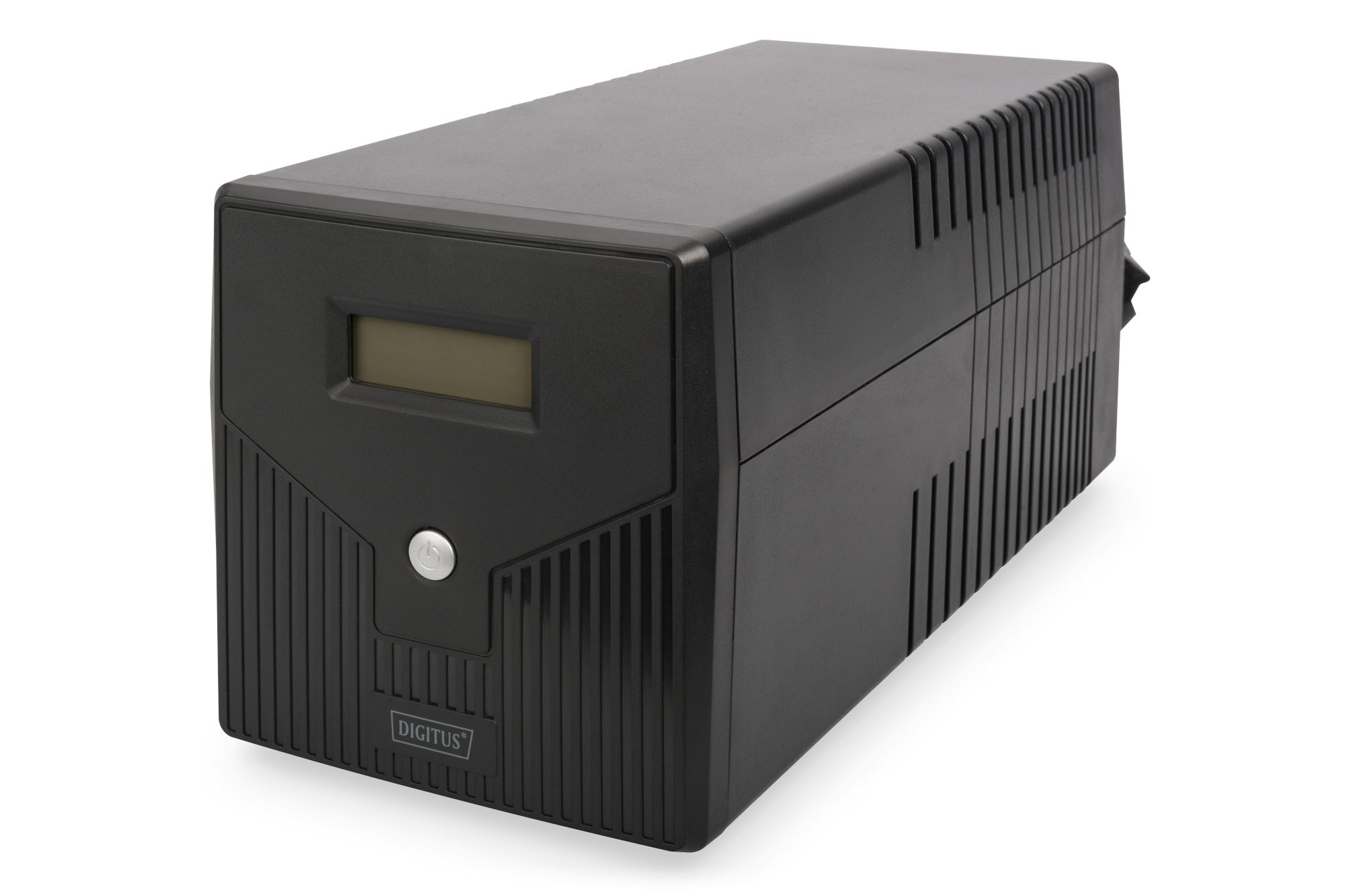

DIGITUS Line-Interactive UPS, 1000 VA/600 W
Product number: DN-170074
EAN: 4016032441366
Line-Interactive UPS, 1000VA/600W 12V/7Ah x2 battery,4x CEE 7/7,USB,RS232,RJ45,LCD
High performance protection for your business and office computer systems against data loss and damage
Boost and buck AVR for voltage stabilization
Fast bridging times in case of power blackout
Compact enclosure for space saving installation in your IT infrastructure
Quick charging time
Produce a low noise level under 40 dB
Description
The DIGITUS® Line-Interactive UPS come with a compact size and an excellent microprocessor control, which guarantees high reliability. With an user friendly operation they provide high performance protection for your business and office computer systems against data loss and damage. Features like overload-, discharge and overcharge protection, cold start functions and energy saving features, as well as an acoustic alarm system are just a few advantages of the DIGITUS® Line-Interactive UPS units.
Technical details
Excellent micro process management guarantees a high reliability in case of electricity failure
Auto restart while AC is recovering
Cold start function

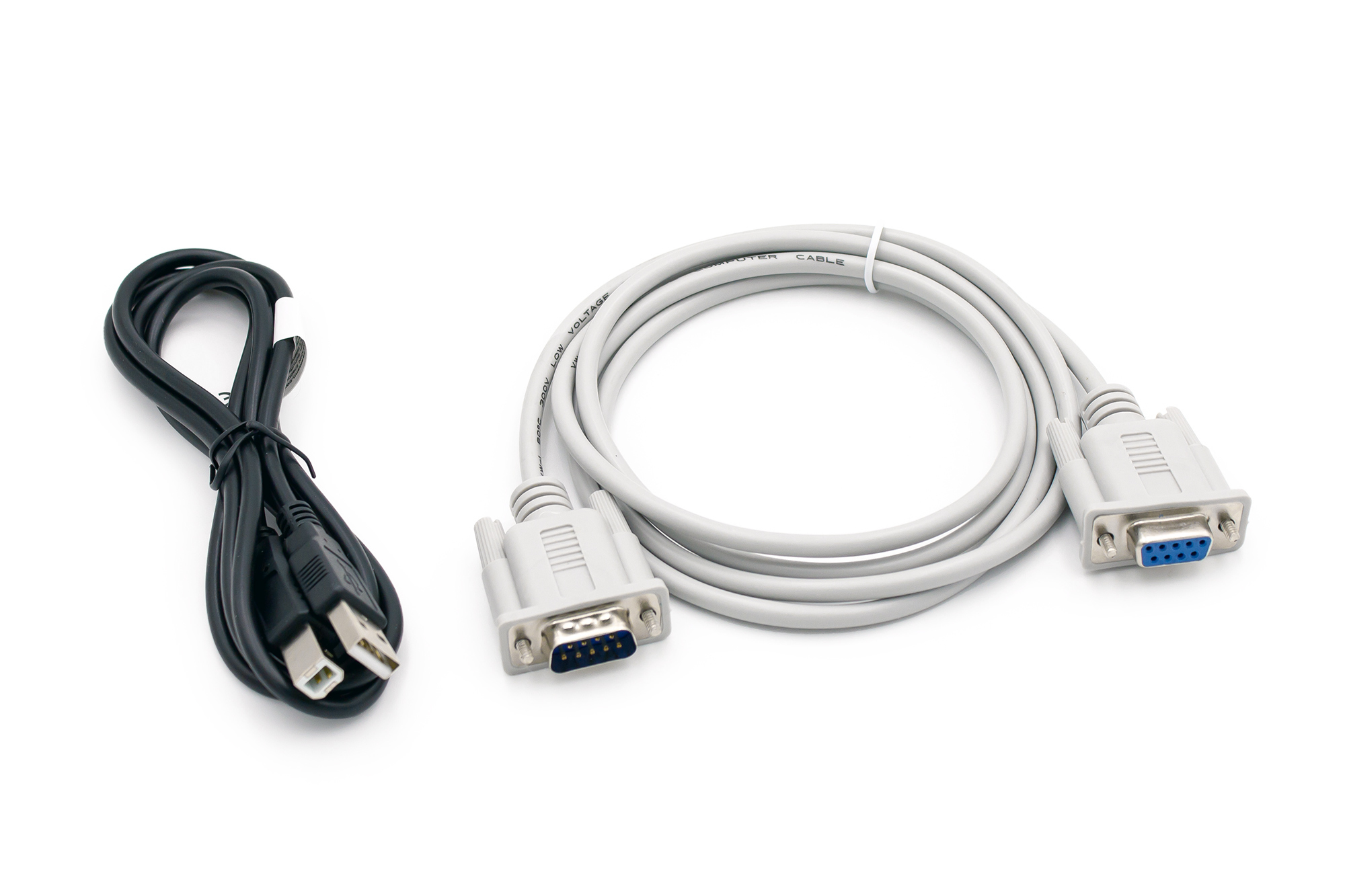

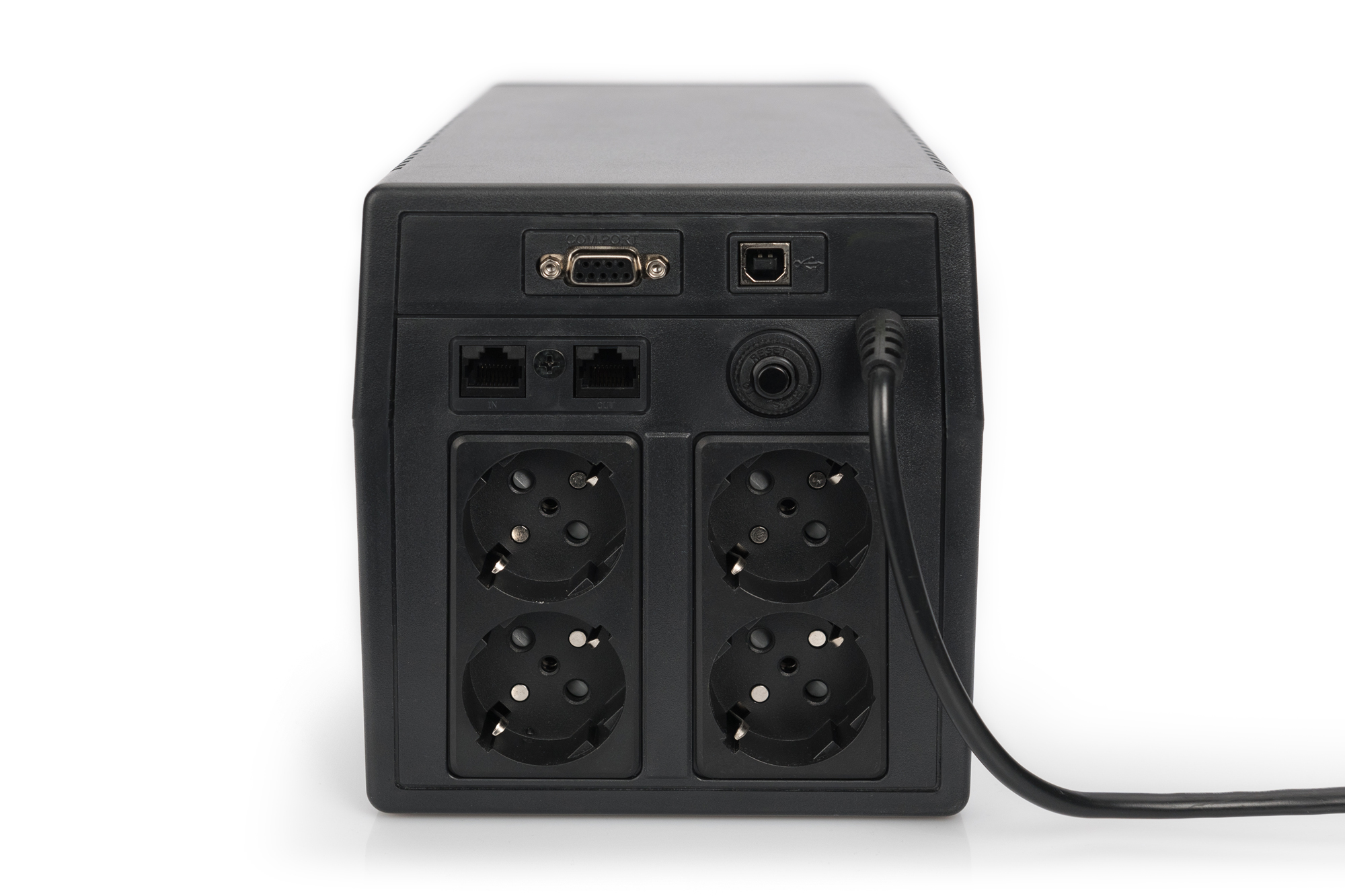

Connection Type: 4x safety outlets, 2x RJ45, 1x RS232, 1x USB 2.0 type B
Input voltage: 230 VAC
Voltage range: 162-290 VAC
Frequency range: 50 Hz (auto sensing)
Output voltage: 230 VAC ± 10%
AC voltage regulation (battery mode): 10%
Capacity: 1000 VA/600 W
Frequency range (battery mode): 50 Hz ± 1%
Typical transfer time: 2-6 ms
Waveform (battery mode): Simulated sine wave
Battery: 12V/7Ah x 2
Typical recharge time: 6-8 hours to recover 90% of capacity
Alarm sounds: Battery mode (sounding every 10 sec.), low battery (sounding every second), overload (sounding every 0.5 seconds), fault (continously sounding)
Humidity: 0-95% RH @ 0 °C to +40 °C (non condensing)
Noise level: Less than 40 dB
Boost and buck AVR for voltage stabilization
LCD display
With overload-, discharge-, and overcharge protection
Dimensions (H x W x D): 162 x 150 x 338 mm
Weight: 7.8 kg
Installation: Desktop
Plug: CEE7/7
Power: 600VA – 1000VA
Technology: Line-interactive
