DIGITUS Wall Mounting Cabinet 254 mm (10-) - 312x300 mm (WxD)
Product number: DN-10-09U
EAN: 4016032445647

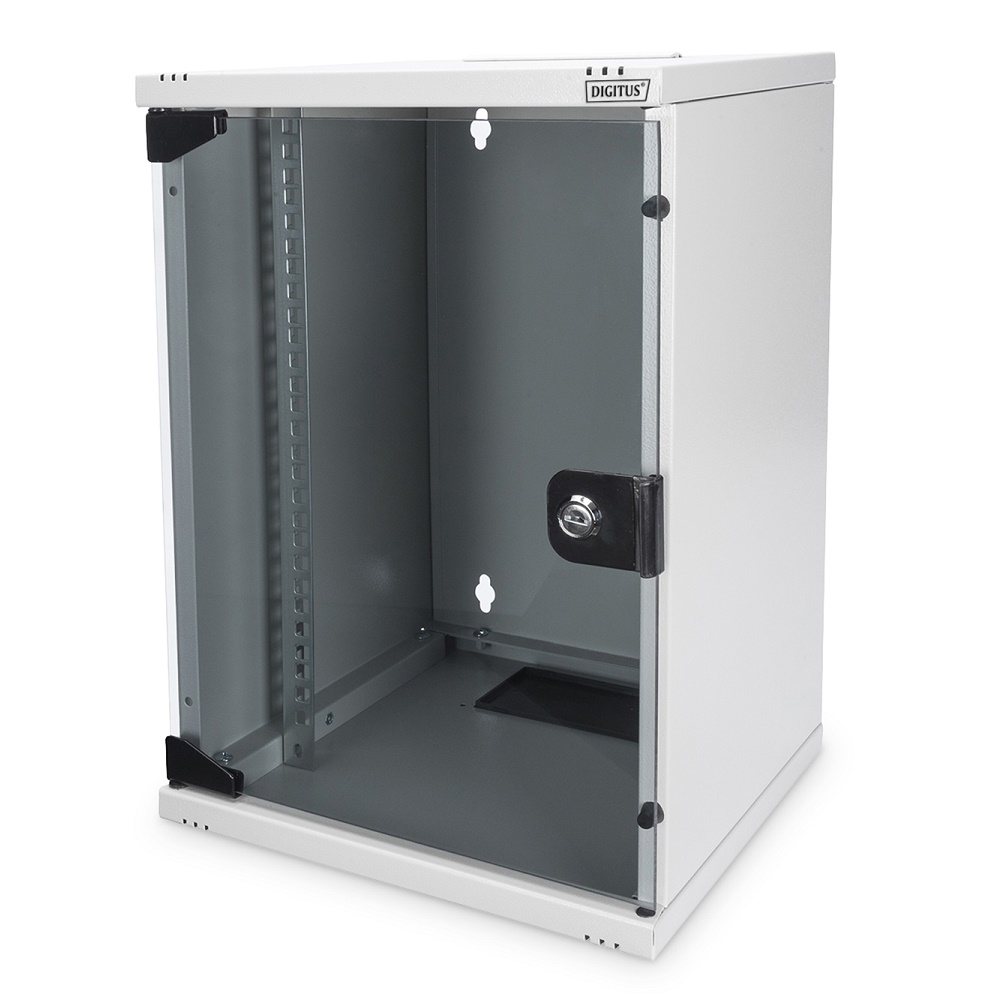

254 mm (10-) 9U wall mounting cabinet 464x312x300 mm, color grey (RAL 7035)
The DIGITUS® Wall Mounting Cabinets are made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany
Very compact enclosure
Easy to assemble in your office building
Provides a neat cable management
DESCRIPTION
Whether for private areas, office or sub-distribution units with limited space: With the compact 254 mm (10”) solutions, you can install your network wherever you like. The wall housings available in three rack units (6 rack units, 9 rack units, 12 rack units) are equipped with a full glass door as well as a cable entry with brushes in the roof and floor. A pairs of galvanized 254 mm (10”) profile rails labeled with easy-to-read rack units are installed on the inside. Their depth can be adjusted. Each cabinet is made of up to 1.5 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). The door hinges can be switched. Furthermore, the cabinets can be completely dismantled if necessary due to their collapsible design.
TECHNICAL DETAILS
Safety class rating IP20
Lockable safety-glass door
200° door opening angle
1-point-locking-mechanism on the front door
254 mm (10-) profile rails mounted on the front side inside of the cabinet, galvanized
254 mm (10-) profile rails are adjustable in depth
1.1 - 1.5 strong sheet steel with a high loading capacity, powder coated
Cable entry with brush strip on the top and with plastic cover on the base
Ventilation slots for active and passive ventilation and exhausting
Equipment mounting depth max.: 240 mm
Cabinet type: Wall mounting cabinet
Color: light grey, RAL 7035
Depth: 300 mm
Front door: Glass door, single opening
Load capacity: 30 kg
Side panels: Both sides
Units: 9
Width: 312 mm
IP protection class: IP20
Mounted: yes
PACKAGE CONTENT
Installation set (screws, cage nuts, washers)
2x Keys
