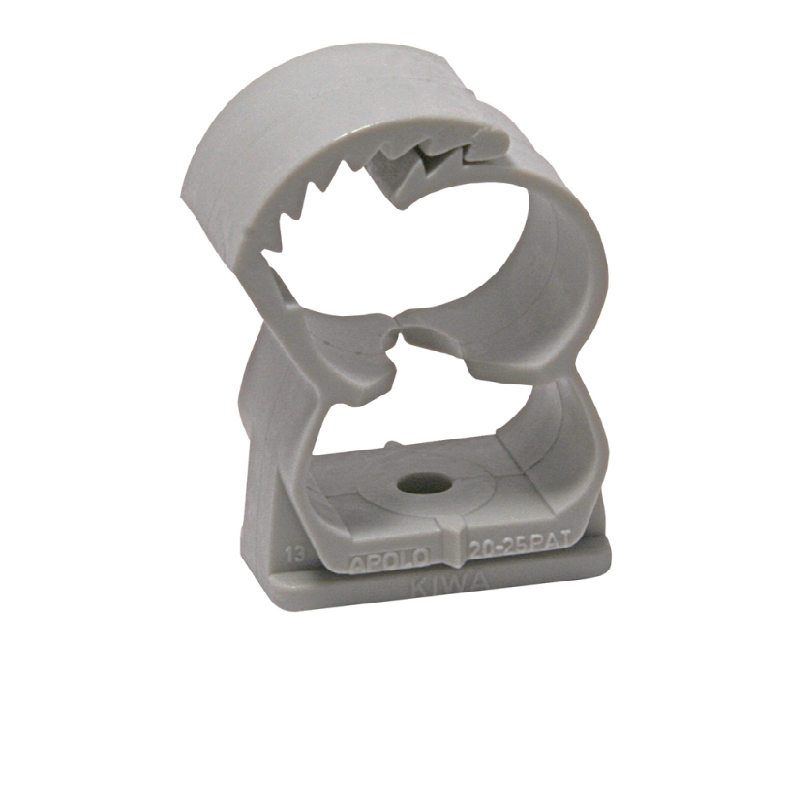

Let the patented nylon multidiameter clamp ABT Ø 20/25 grey convince you: Installed in only 3 seconds with the FORCE ONE gas nailer.

The multidiameter clamp ABT is made of nylon and especially designed to save time installing tubes and conduits when using a nailer. Each reference covers up to 3 different tube diameters. The tube is simply pushed in and the ABT closes automatically around it offering high security values. In addition, its nylon properties provide additional performance against expansion due to the temperature contrast of the tubes.

Benefit from a quick and easy installation, just by pressing the tube you will be able to close several clamps at the same time without tools. Its installation is also very fast and easy with CELO nailers (FORCE ONE and AG) or fixing it directly to channels such as our E2000PB, E2000PG and 1000PVC channels. In addition, through its hole, it can be screwed directly to the wall with a 4.5x35/45 screw and an FX Ø6 four-side expansion plug.

Plus, it has the same height as the junction box for easy installation without bending the rigid tube.

The clamp is UL approved, halogen free and RoHS compliant. The alignment marking on the clamp allows easy mounting in series. As the KIWA certification confirms, the clamp can be used for hot water pipes up to +90°C.
