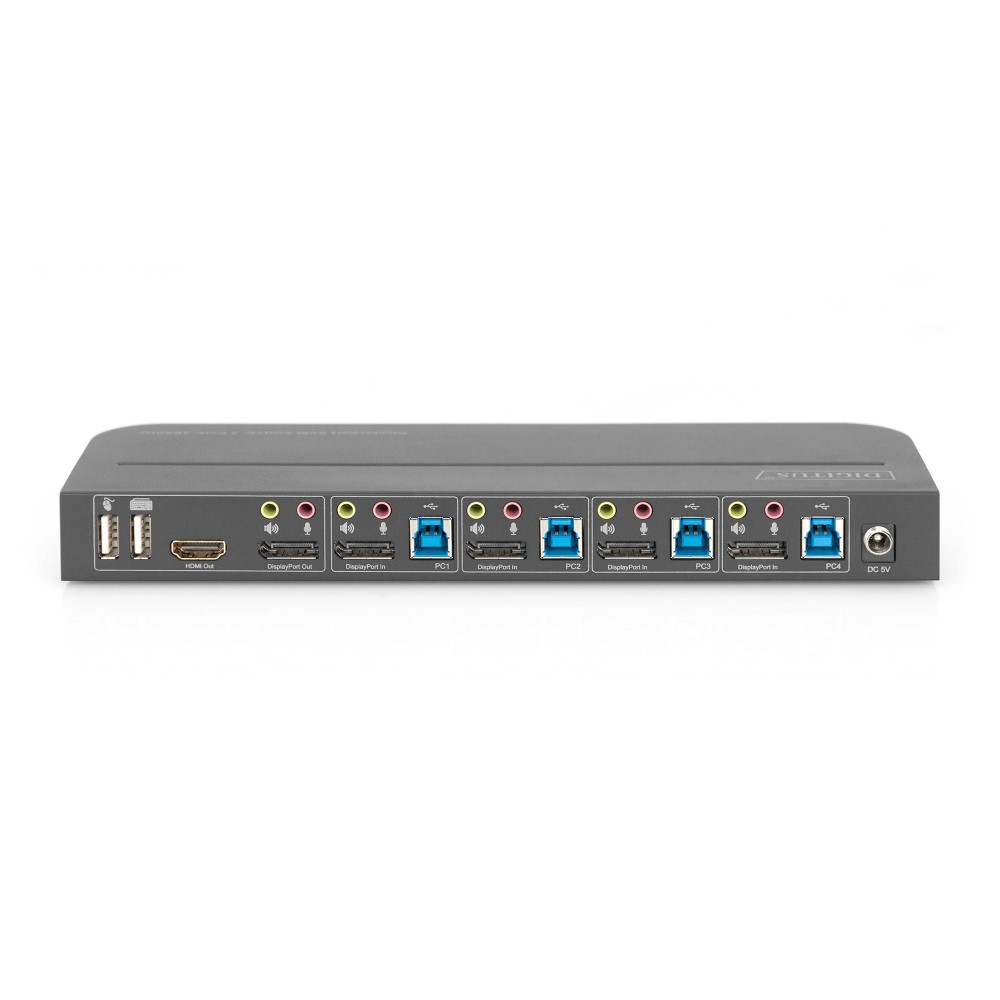

Inputs: 4 x DisplayPort™, 4 x USB B (3.0), 4 x audio input, 4 x audio output
Output: 1 x DisplayPort™, 1 x HDMI®, 1 x audio input, 1 x audio output, 2 x USB A 2.0

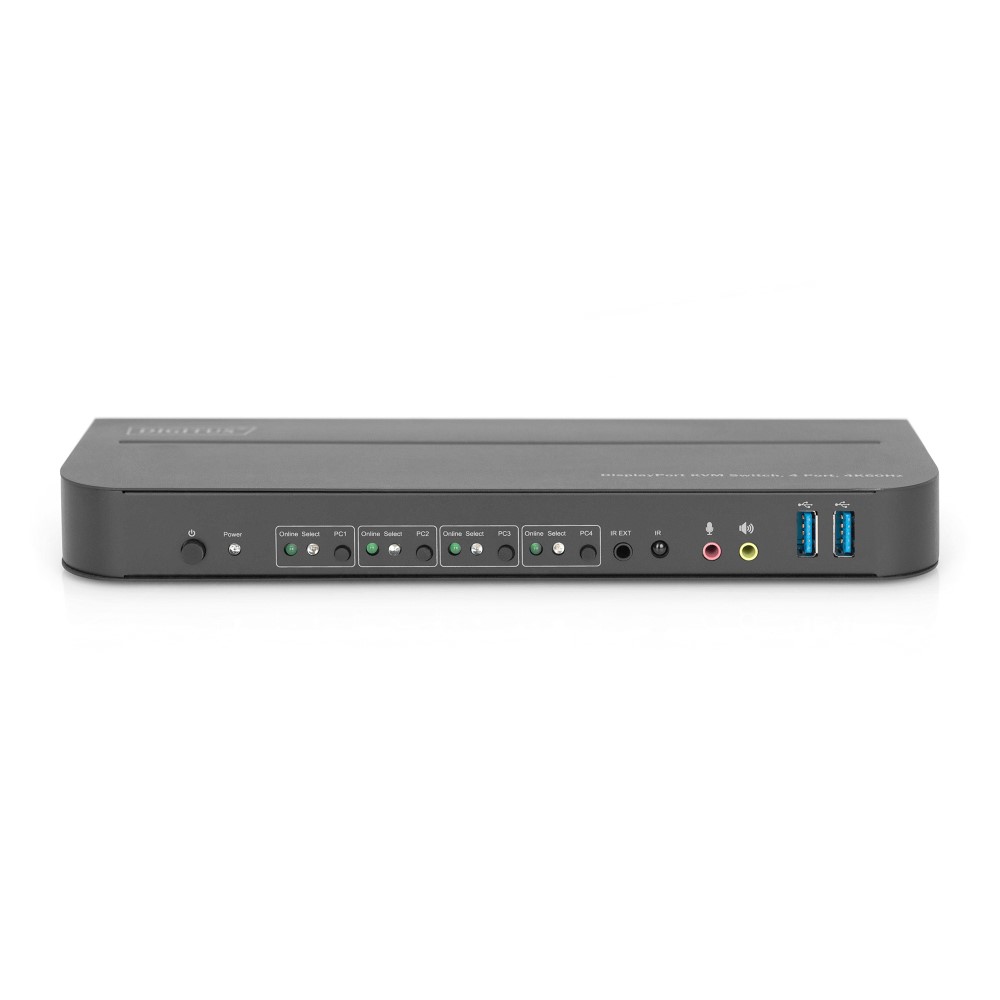

Additional connections front side: 2 x USB A 3.0, 1 x audio input, 1 x audio output, 1x infrared receiver, 1x IR output
Audio inputs/outputs: 3.5 mm stereo jack socket
LED front side: Power, 4 x Online, 4 x Selection PC
Switch: Power On/Off, Toggle PC1 / PC2 / PC3 / PC4
HDMI® version: 2.0
HDCP version: 2.2 / 1.4
DisplayPort™ version: 1.2
UHD resolution: 4096 x 2160p / 60 Hz
Subsampling: RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2/ YCbCr 4:2:0
Bandwidth DisplayPort™: 32.4 Gbps all channels (8.1 Gbps per channel), supports HDR
Bandwidth HDMI®: 18 Gbps all channels (6 Gbps per channel), supports HDR
Color depth DisplayPort™: 48 bit (all channels)
Color depth HDMI®: 36 bit (all channels)
Power supply power adapter: 100 - 240 V AC / 50/60 Hz, 0.6 A
Power supply KVM switch: 5 V / 3 A / 15 W
Operating temperature: 0°C ~ 45°C
Operating humidity: 10% - 85% RH (non-condensing)
Housing material: Metal
Installation bracket for wall mounting included
External receiver for signals from remote control included
Dimensions: 24,3 x 7.5 x 2.6 cm (WxDxH)
Weight: 505,4 g
Color: Black
Number of ports: 8


Package content
1 x KVM Switch, 4-Port, 4K60Hz, 4 x DP in, 1 x DP/HDMI out
1 x Power adapter for KVM switch
4 x USB 3.0 connection cable (USB B to USB A)
4 x DisplayPort™ cable 1.2 m
1 x Infrared remote control
1 x Infrared recipient with connection cable
2 x Mounting bracket for table/wall installation
1 x User manual
