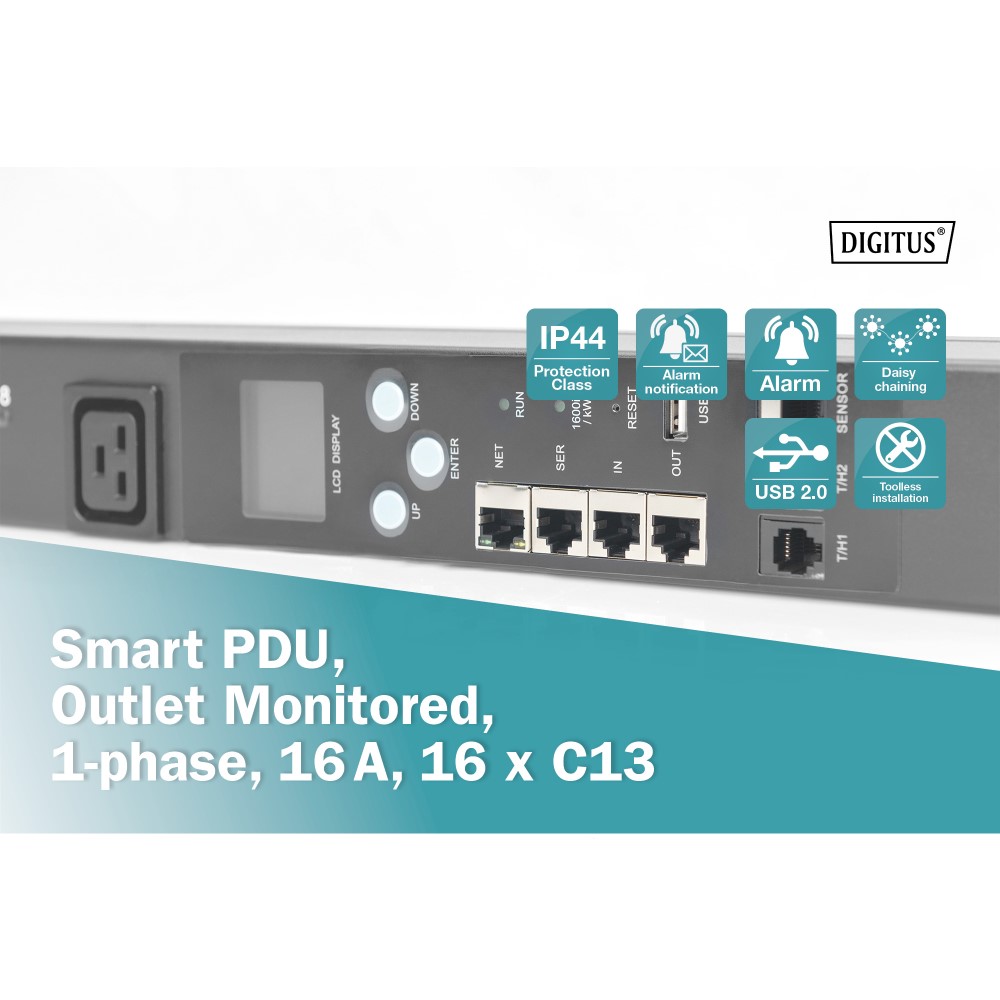

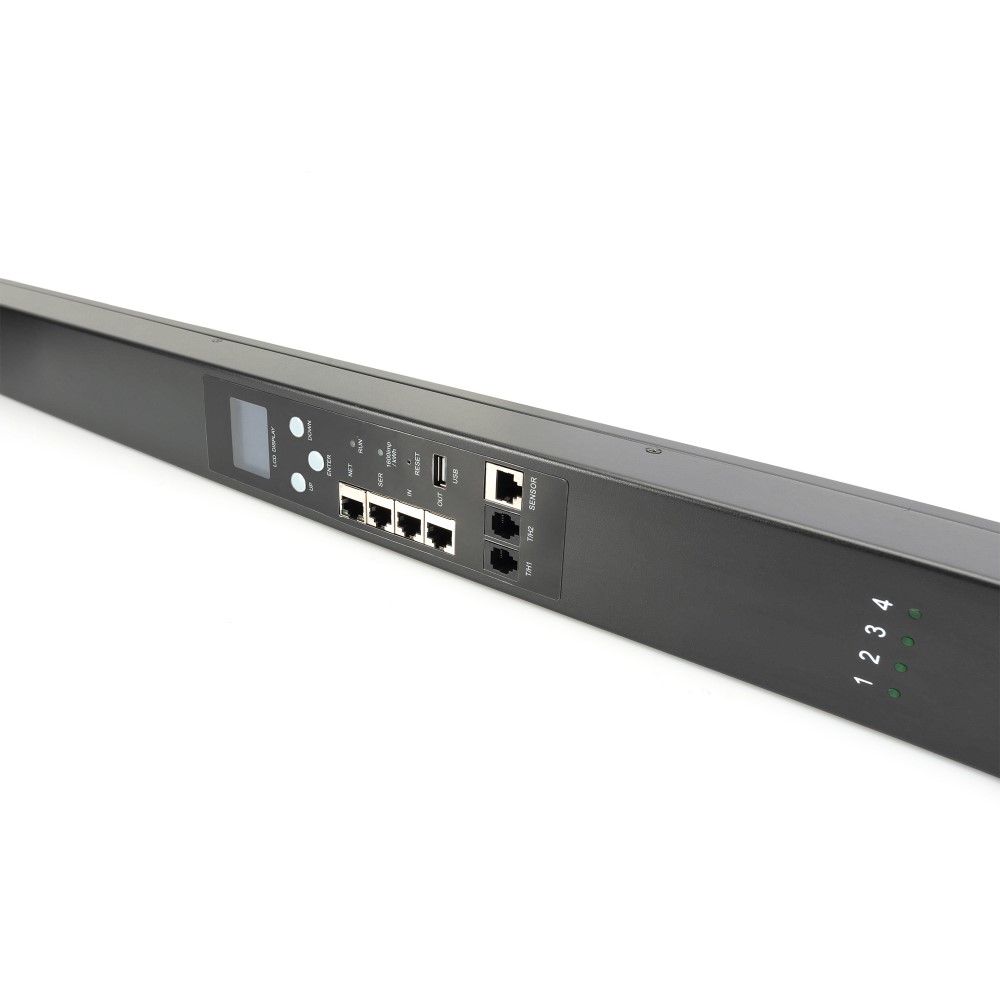

The DIGITUS® Smart PDU offers you the option to remotely monitor the current, voltage, total energy consumption, total power and power factor at the input level, as well as the current, power and energy consumption at the output level. The limit value can be set for the total current and the alarm warns you about potential system overloads. Monitoring of the operating status is also enabled as well as for the current, energy and power at the circuit breaker level. This makes it possible to efficiently manage and distribute power. The device can be accessed and configured via web, SNMP and Telnet interfaces. With the option of connecting sensors, the unit can comprise a complete environment monitoring system to control the temperature, smoke, humidity and leaks in the racks. Up to five power strips which share the same network connection and IP address can be connected in series. Furthermore, the PDU can easily be integrated into the racks with tool-free installation options.
Technical details
Monitoring of input current / voltage / total energy consumption / total power / power factor
Monitoring of output current / total energy consumption / total power

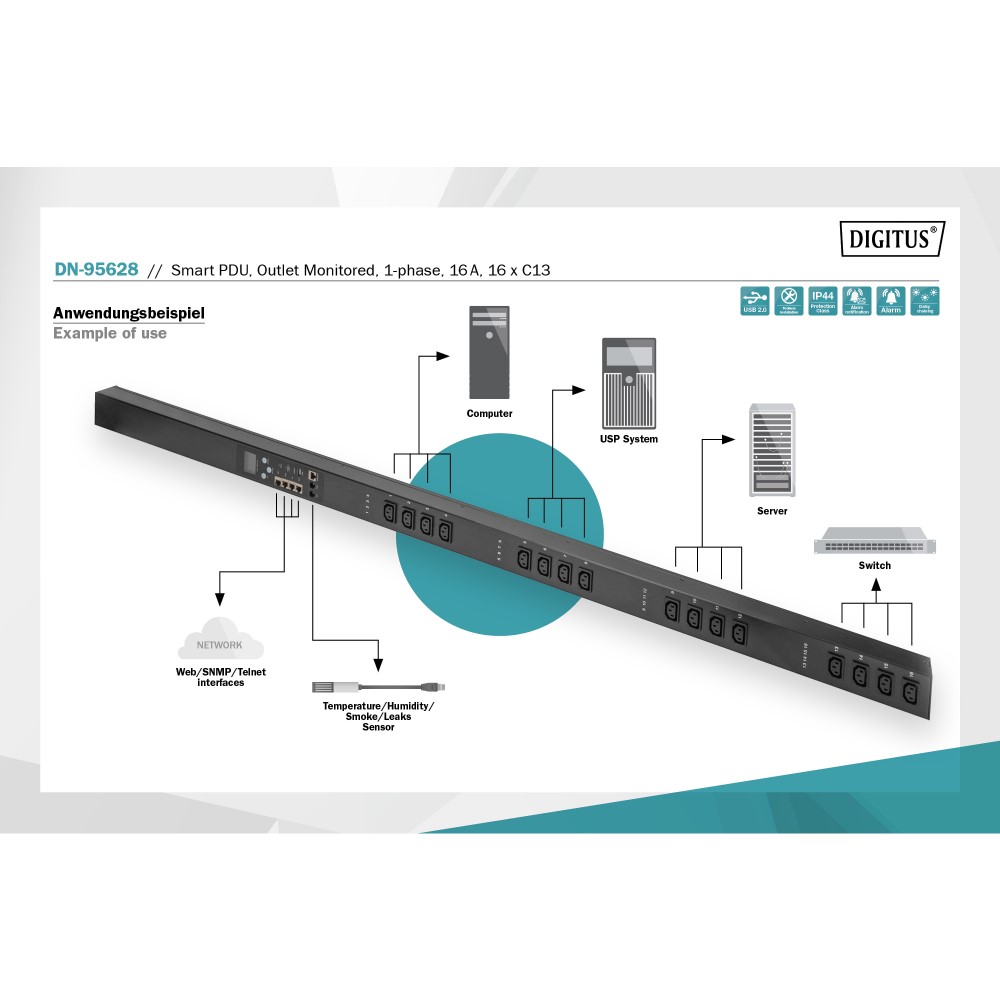

Remote access method: Web interface, HTTP, HTTPS, SNMP (v1 / v2c / v3), Telnet and serial console
Daisy-chaining of up to five PDUs (including master device)
Multi-stage user access
Compatible with temperature/humidity/smoke/leak sensors
User-defined alarm: E-mail notification - alarm signal if threshold values are exceeded for total current, temperature / humidity
Standard system alarm: If the total nominal power is exceeded; if smoke, water or an open door is detected

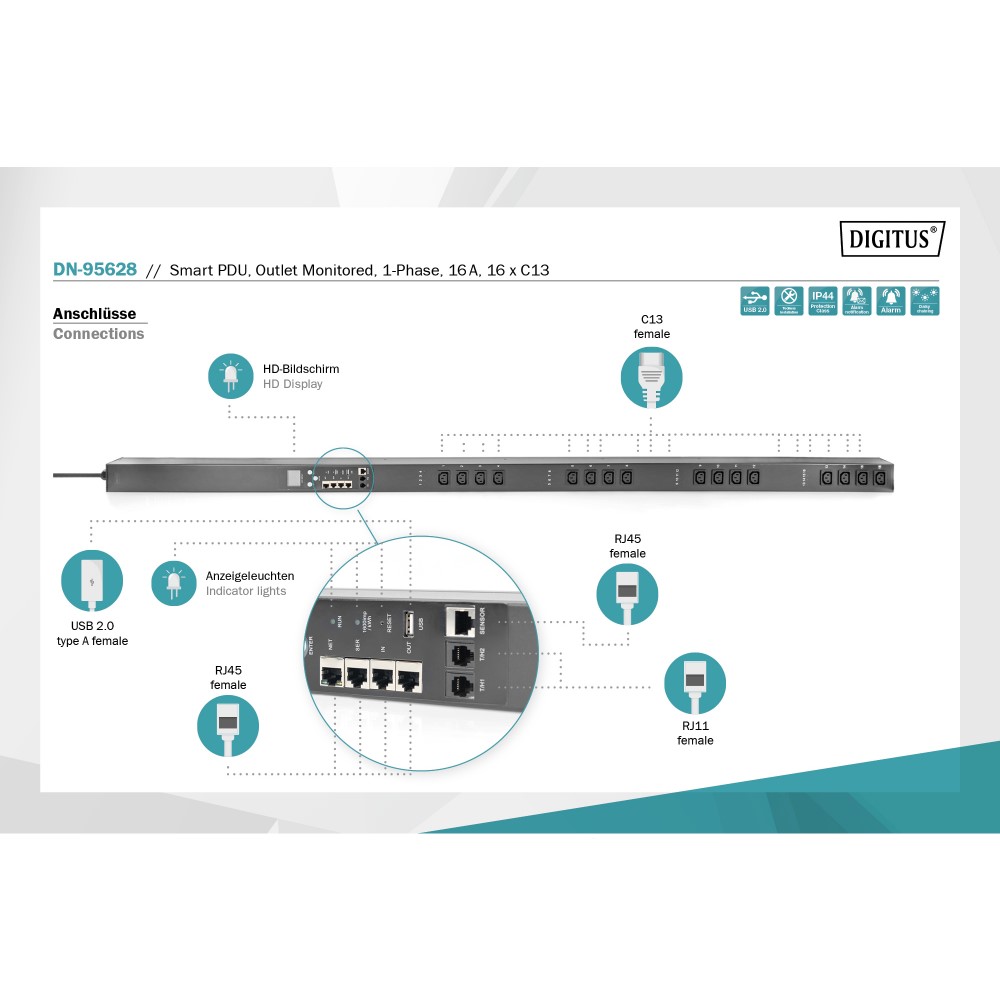

RJ45 connections for Ethernet and serial communication
USB A port for WIFI access or software upgrade

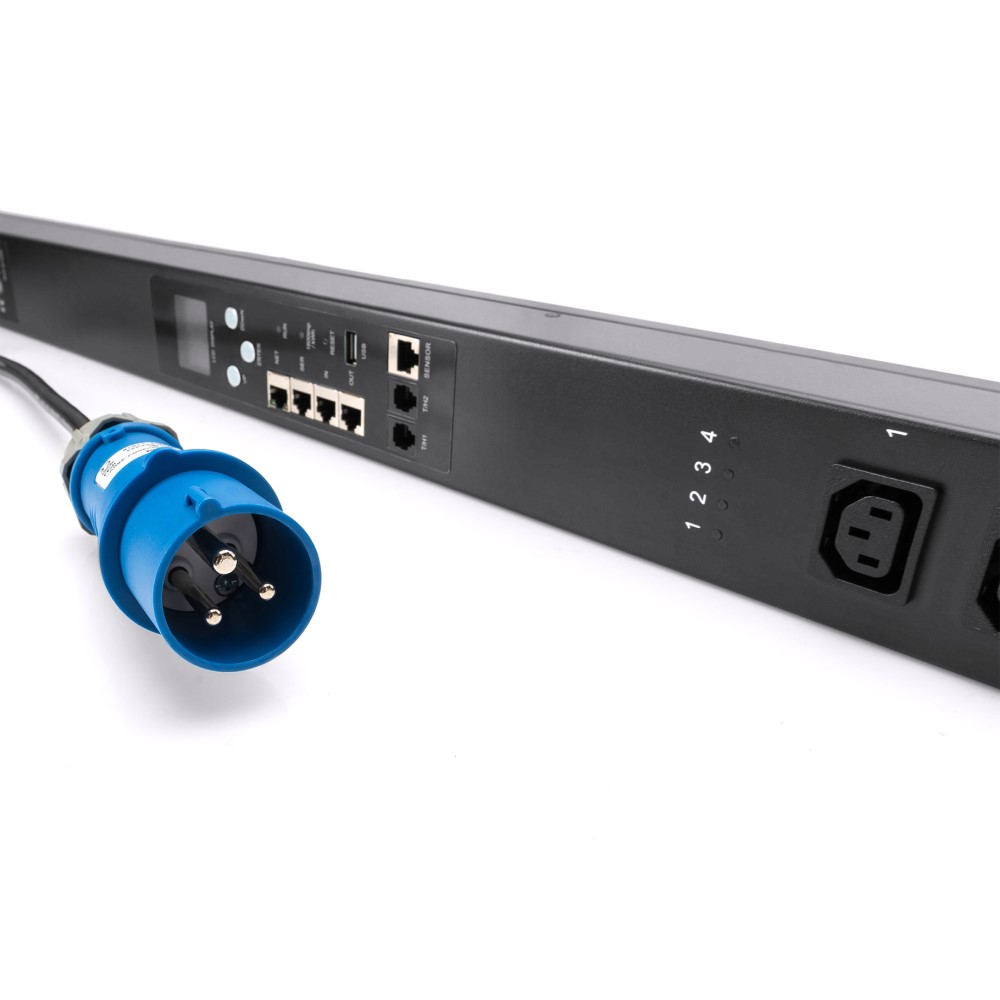

Mains cable: 3 x 2.5 mm², IEC60309 16 A plug
Cable: 3 m
Max. load: 4000 W / 250 V AC / 16 A (50/60 Hz)
Outlets: 16 x C13 outlet
Output power: C13 (10A)
180 degree rotating HD display
Dimensions (LxWxD): 1730 x 66 x 52 mm
Temperature range (operation / storage): 0 °C to +45 °C/ -20 °C to +70 °C
Humidity range (operation / storage): 5% - 95% RH / 5 - 95% RH (non-condensing)
Maximum height above sea level (operation / storage): 0 - 3,000 m / 0 - 15,000 m
Color: Black
Protection type: IP44
