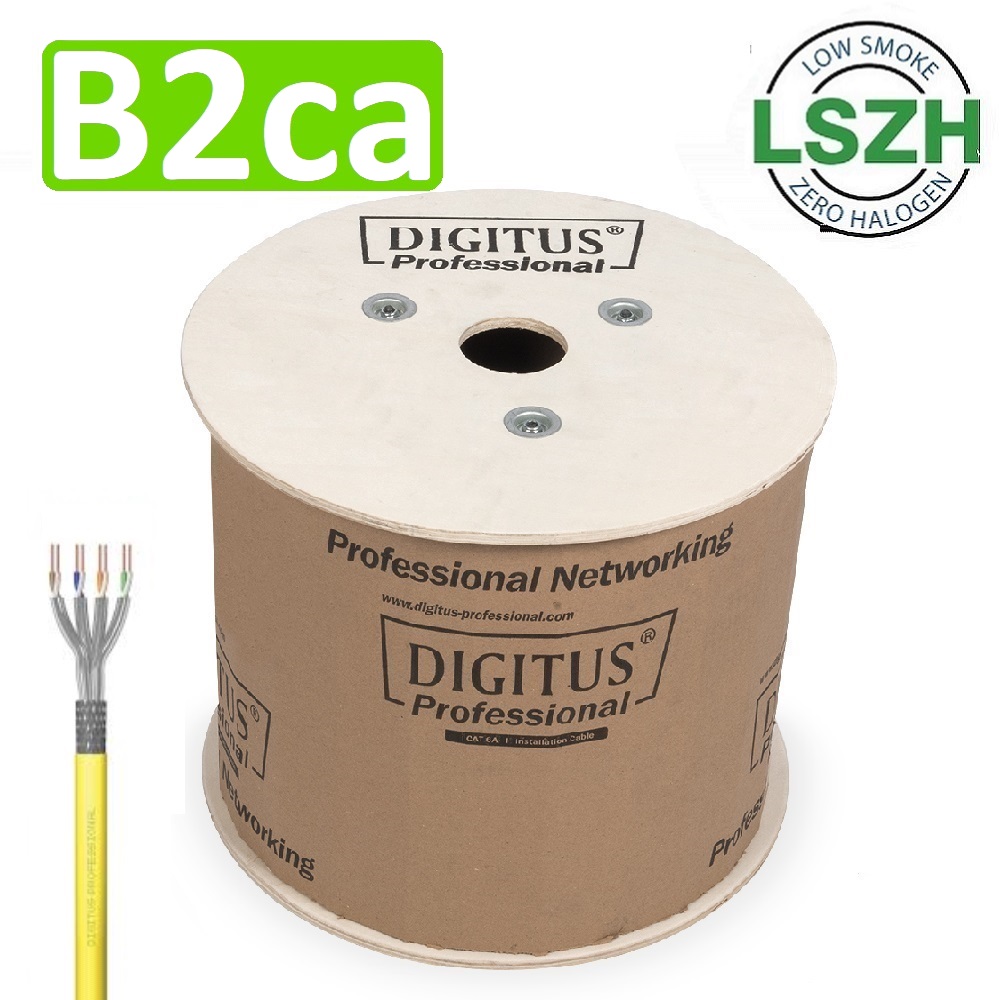

DIGITUS CAT 7A S/FTP installation cable, 1000 m, Simplex, B2ca
Product number: DK-1745-A-VH-10
EAN: 4016032435938
CAT 7A S-FTP installation cable, 1500 MHz B2ca (EN 50575), AWG 22/1, 1000 m drum, sx, ye

DIGITUS® CAT 7A S/FTP installation cable 4x2x AWG22/1 up to 1500 MHz. The halogen-free cable sheath complies with the standards IEC 60332-3-24, FRNC-C, LSZH-3 and CPR Euro class B2ca. Complies with ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.

10 GBit Ethernet
1500 MHz transmission frequency
Permanent link certified
PoE Power over Ethernet support
BauPVO category B2ca

Description
The DIGITUS® CAT 7A S/FTP installation cable features the following cable structure 4x2x AWG22/1 and achieves a transmission frequency of up to 1500 MHz. The halogen-free cable sheath complies with the standards IEC 60332-3-24, FRNC-C, LSZH-3 and CPR Euro class B2ca. The cable is suitable for building cabling in secondary and tertiary areas. Complies with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.

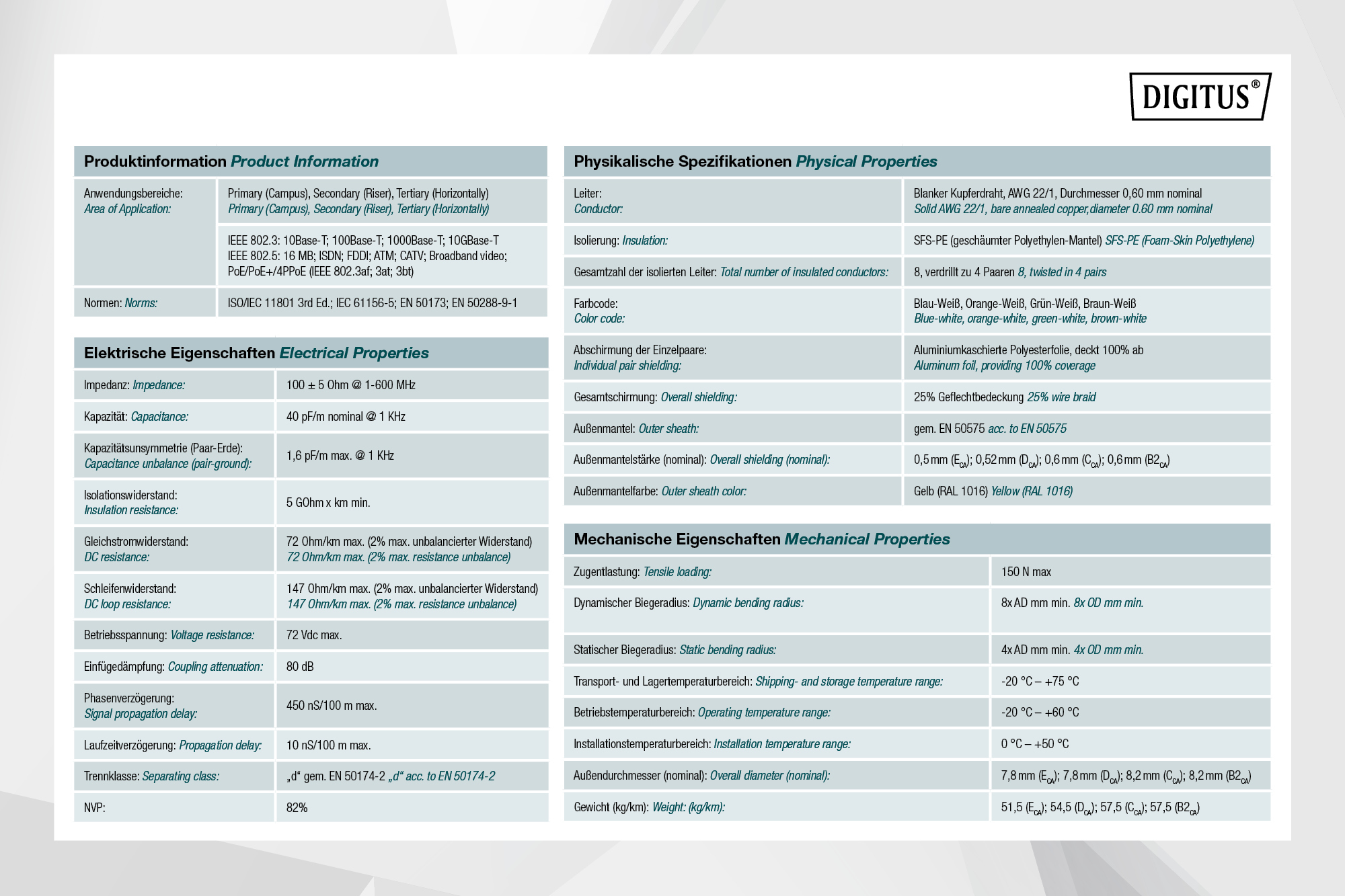

Technical details
Physical properties:
Conductor: Bare annealed copper, solid AWG 22/1
Insulation: SFS-PE (Foam-Skin Polyethylene)
Total number of insulated conductors: 8, twisted in 4 pairs
Color code: Blue-white, orange-white, green-white, brown-white
Individual pair shielding: Aluminum foil, providing 100 % coverage
Overall shielding: Copper braid
Outer sheath: Eca - B2ca acc. to EN 50575; LSZH
Outer sheath diameter (nominal): 0.50 mm (Eca); 0,52 mm (Dca); 0,60 mm (Cca); 0,60 (B2ca)
Color: orange (RAL 2000)
Mechanical properties:
Tensile loading: 150N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Shipping- and storage temperature range: -20 °C up to +75 °C
Operating temperature range: -20 °C bis +50 °C
Installation temperature range: 0 °C to +50 °C
Overall diameter Simplex (nominal): 7,0 mm (Eca); 7,2 mm (Dca); 7,5 mm (Cca); 7,5 mm (B2ca)
Weight (kg/km): 49,5 kg (Eca); 51 kg (Dca), 53 kg (Cca); 53 kg (B2ca)
Electrical properties:
Impedance: 100±15 Ohm @ 4 - 1000 MHz; 100±25 OHM @ 100-600 MHz
Capacitance: 45 pF/m nominal @ 1 KHz
Capacitance unbalance (pair-ground): 1,6 pF/m max. @ 1 KHz
Insulation resistance: 5 GOhm x km min.
DC resistance: 95 Ohm/km max. (2% max. resistance unbalance)
DC loop resistance: 190 Ohm/km max. (2% max. resistance unbalance)
Voltage resistance: 72 Vdc max.
Coupling attenuation: CA-Type 1b
Signal propagation delay: 450 nS/100 m max.
Propagation delay: 10 nS/100 m max.
Separating class: „d“ acc. to EN 50174-2
NVP: 79%
Assortment: Twisted Pair Installation Cables
Category: CAT 7A
Shielding: S-FTP, pairs in metal foil and braid shielding
CPR: B2ca
Length: 1000 m
Color: yellow
Jacket: LSOH
Structure: 4 x 2 AWG 22/1, solid twisted pair
