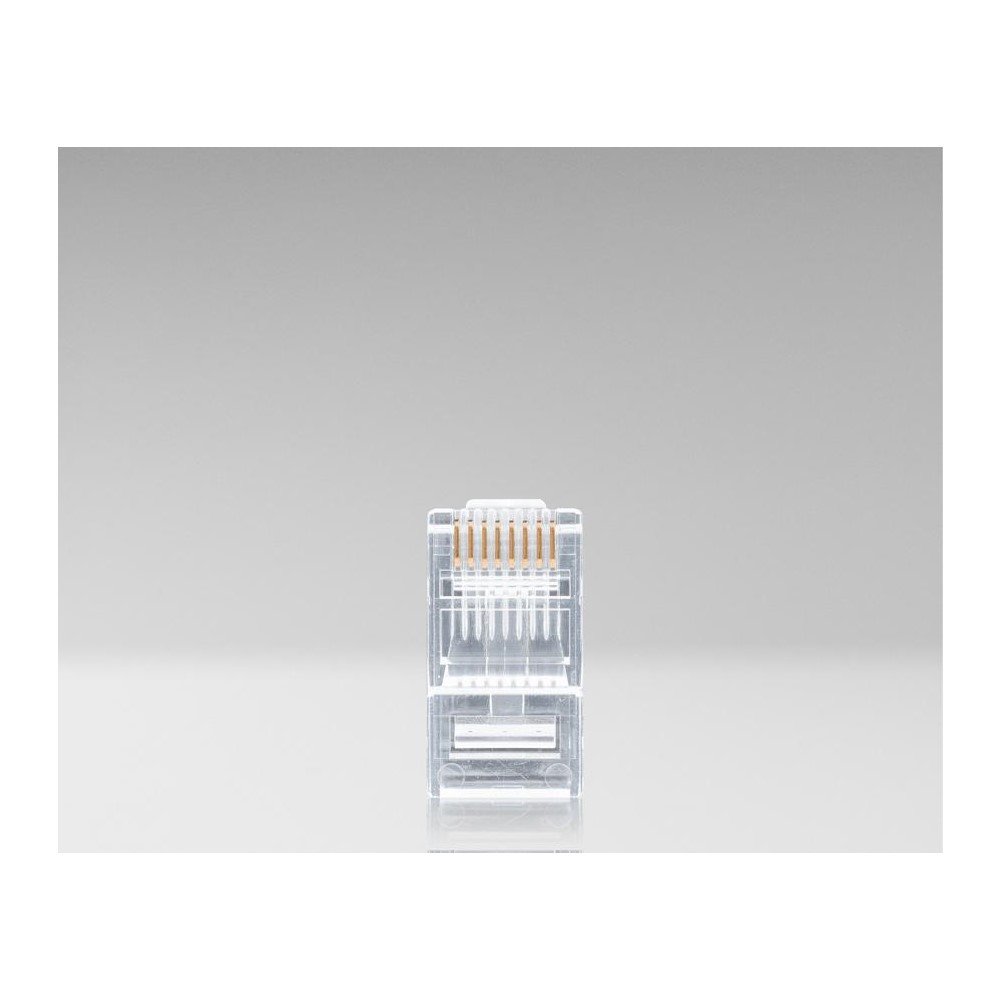

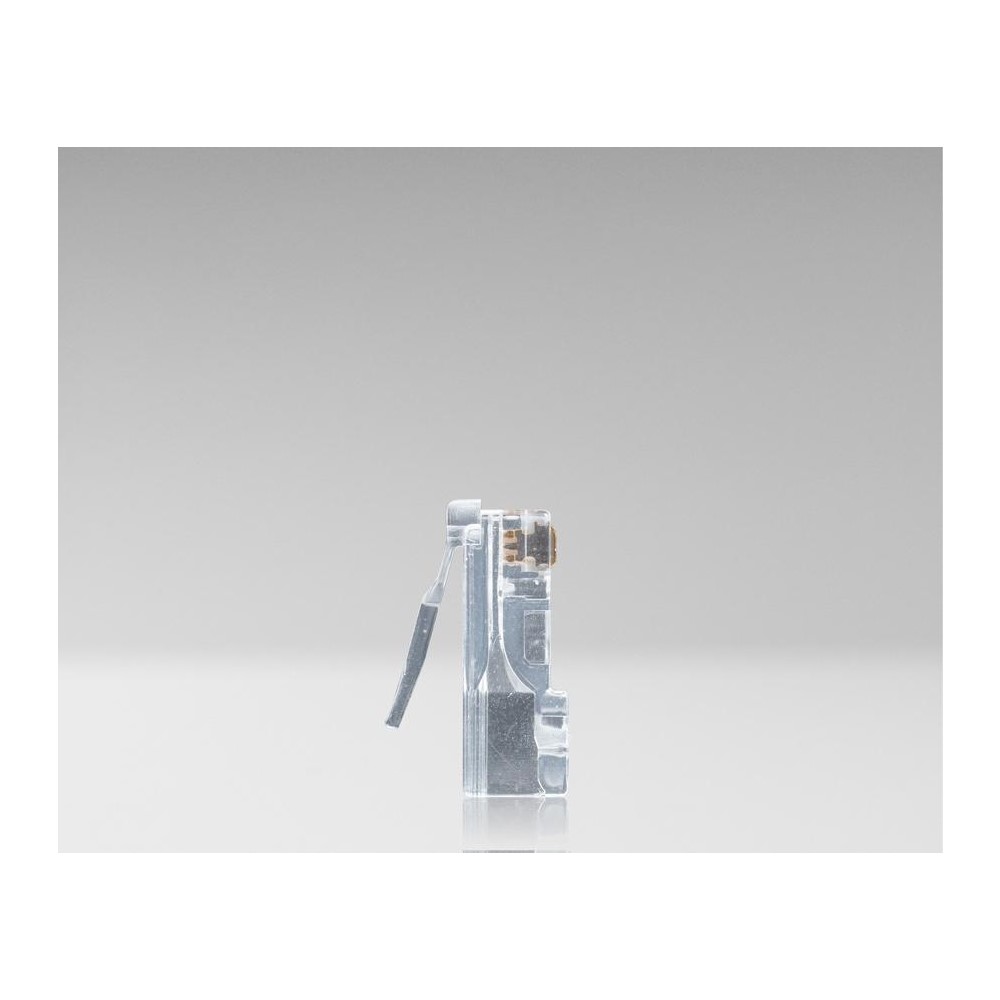

The Jonard Tools CAT6 RJ45 Pass-Through Connectors are used by network installers/technicians in order to terminate CAT6 network cables with a pass-through crimper. They are used in households and businesses and are ideal for terminating a round network cable or even replacing an existing connector. These connectors feature the following:

50 μin gold plating on contact surfaces provides greater signal quality than the competition
Tripoint-type prongs allow you to use stranded or solid CAT6 cables

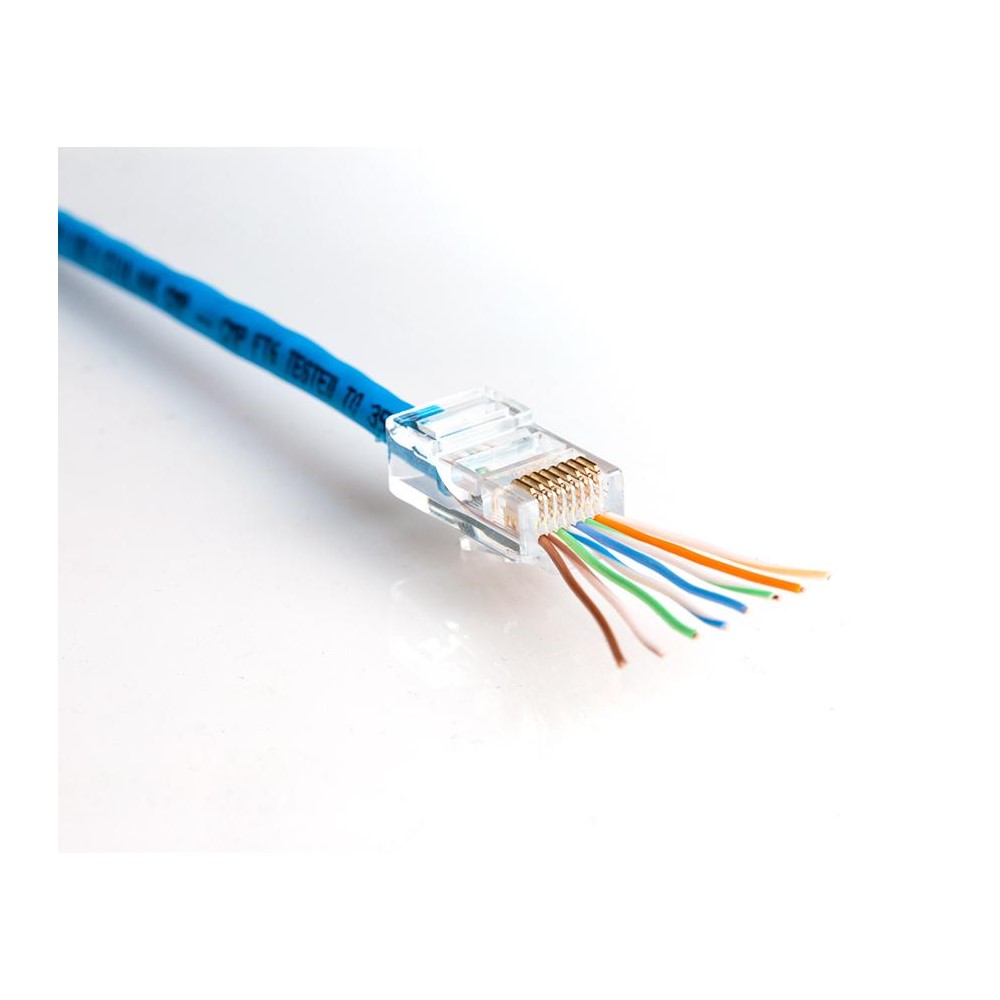

Simplify twisted pair network cable termination by allowing the wires to pass through the connector
Advantage of the pass-through feature is that you do not have to measure and cut the wires before termination, which can lead to having poor connection and signal loss

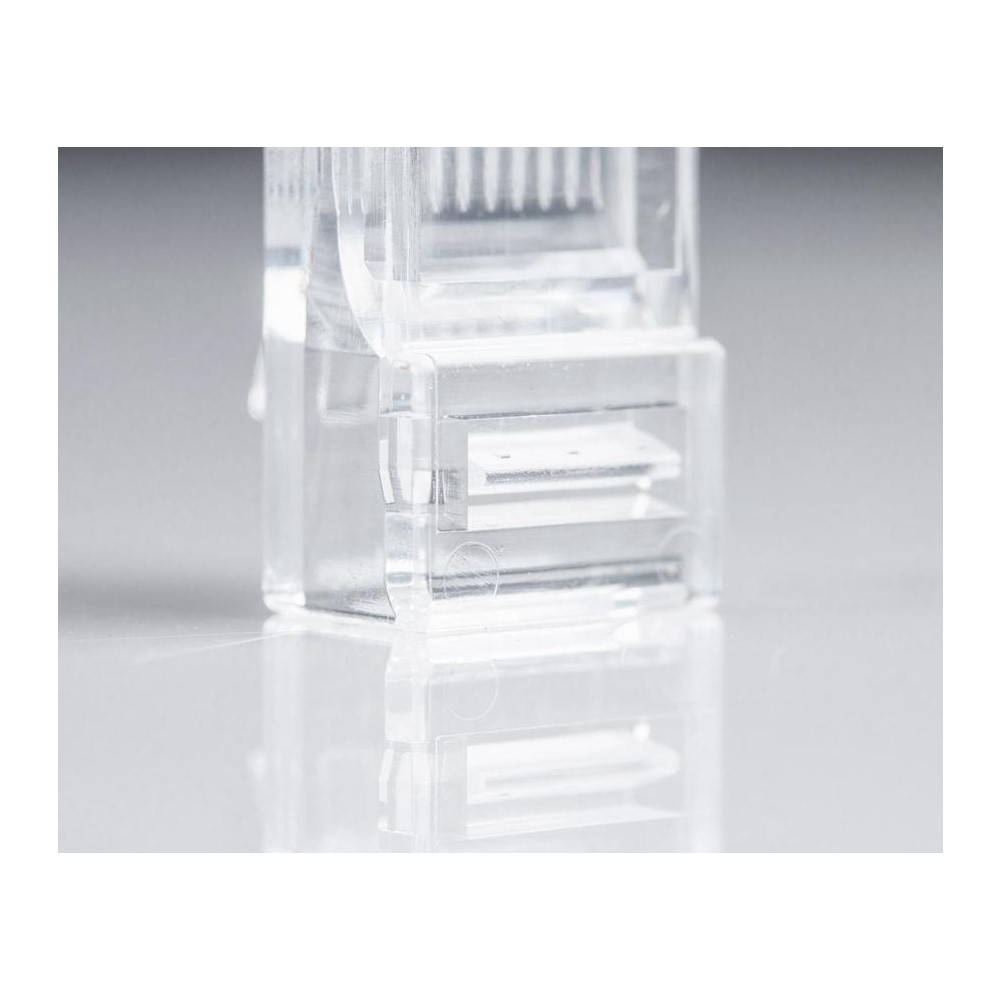

Clear housing allows the operator to see the wire pairs easily
This product comes in a bag of 25 connectors.

Intended for use with our RJ11 and RJ45 connector crimping tool: UC-4569

Specifications
Number of Connectors
25

Cable Type
CAT6, CAT6a Network Cables

Connector Type
Three-prong RJ45

Plating Thickness
50 micro-inches

Housing Material
Polycarbonate

Standards
UL 94V-2, RoHS Compliant

Operating Temperature
-10°C to 60°C

Weight 0 lb (0 g)
UPC # 810053350607
