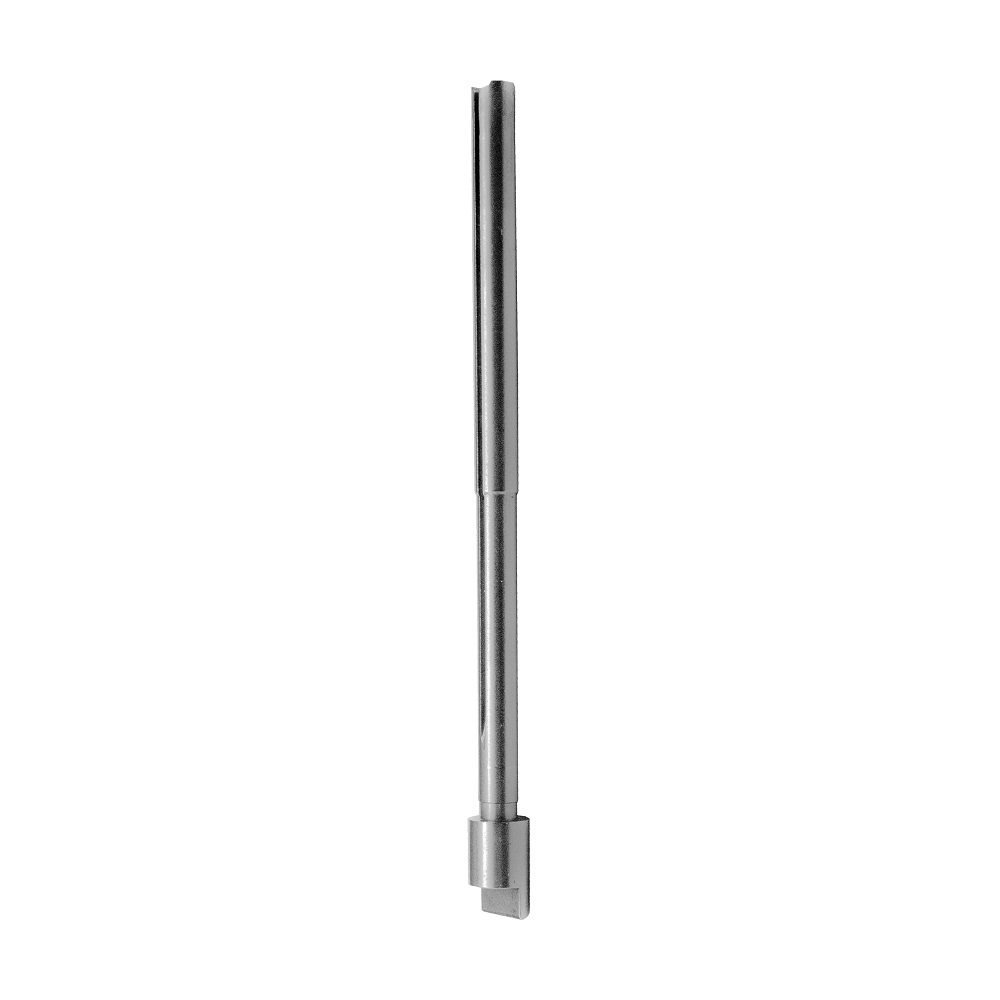

Fully compatible with any make or model of wire wrapping tools, this 3- wire wrapping bit is perfect for wrapping 20-22 AWG wire around binding posts when used in conjunction with a wire wrapping tool.

Compatible Wrap Sleeve Part No.: P2224, P2224INS

Specifications
Sleeve Part No.
P2224 and P2224INS (sold separately)

Wrap Function
Wrap

Wrap Type
Regular

Wire Gauge
20-22 AWG (0.80 mm - 0.65 mm)

Minimum Terminal Diagonal
0.042- (1.07 mm)

Maximum Terminal Diagonal
0.073- (1.85 mm)

Terminal Hole Depth
1- (25.4 mm)

Terminal Hole Diameter
0.075- (1.9 mm)

Effective Radius
0.123- (3.12 mm)

Wrap Post Size
0.045- (1.14 mm)

Dimensions 3.13 in x 0.23 in x 0.23 in (7.94 cm x 0.59 cm x 0.59 cm)
Weight 0.02 lb (7.264 g)
