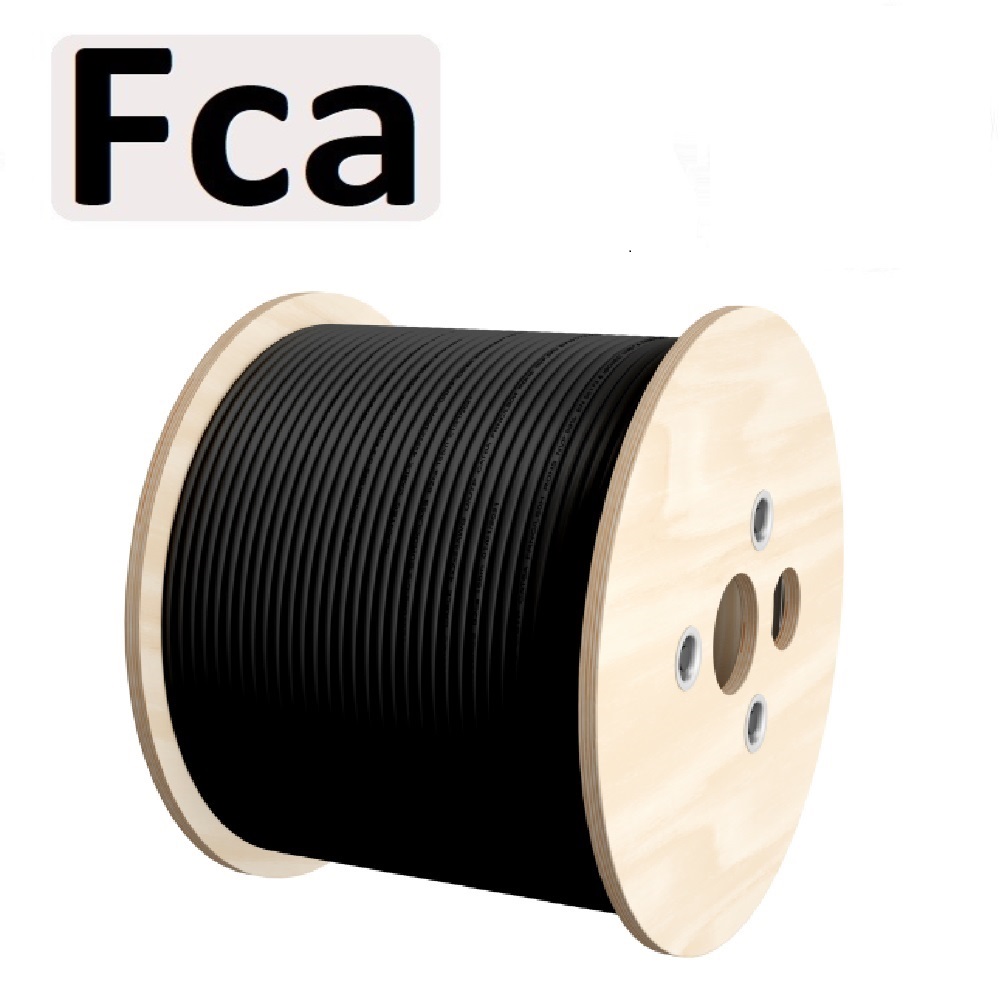

Each cable consists of 8 colour coded polyethelene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. The printing detail on the sheath, includes the cables part number, specification details and a unique 305 metre marking on each spool supplied, allowing for quick and easy measurement of cable installed and the amount remaining on the spool.

Technical Specifications
CONSTRUCTION AND ELECTRICAL
Category 6
Class E (250MHz)
Twisted element 4x2x23AWG
Conductor 100% Cu - bare copper wire 0,57mm
Insulation polyethylene
Fire euroclass Fca
Twisting 4 pairs
Screen Yes. Polyester film coated with a layer of aluminum placed inside a metal layer, the earth wire screen of tinned copper wire diameter min. 0,4mm
Jacket polyethylene PE resistant to UV radiation
PoE 802.3 at
Color black
ELECTRICAL PROPERTIES AT 20ºC
Conductor DC Resistance ≤ 93,8 Ω /km
Changing resistance ≤ 2%
Insulation resistance (500V) ≥ 5000 MΩ *km
Mutual Capacitance at 800 Hz nom. 48 nF/km
Changing capacitance passive resistance ≤ 1500 pF/km
Characteristic impedance (1-100MHz) (100 ± 15) Ω
Nominal Velocity of Propagation (NVP) 69%
Delay spread Nominal ≤ 535 ns/100m
Angle spread Nominal ≤ 20 ns/100m
Tester installation DC, 1 min. 1000 V
MECHANICAL PROPERTIES
Bend Radius 4 x overall diameter
Max. pulling force 80 N
Temperature range - work -30°C do + 50°C
Temperature range - instalation 0°C do + 50°C
Outer diameter 7,3 mm
Weight / km 49 kg
Packing spool (305m
