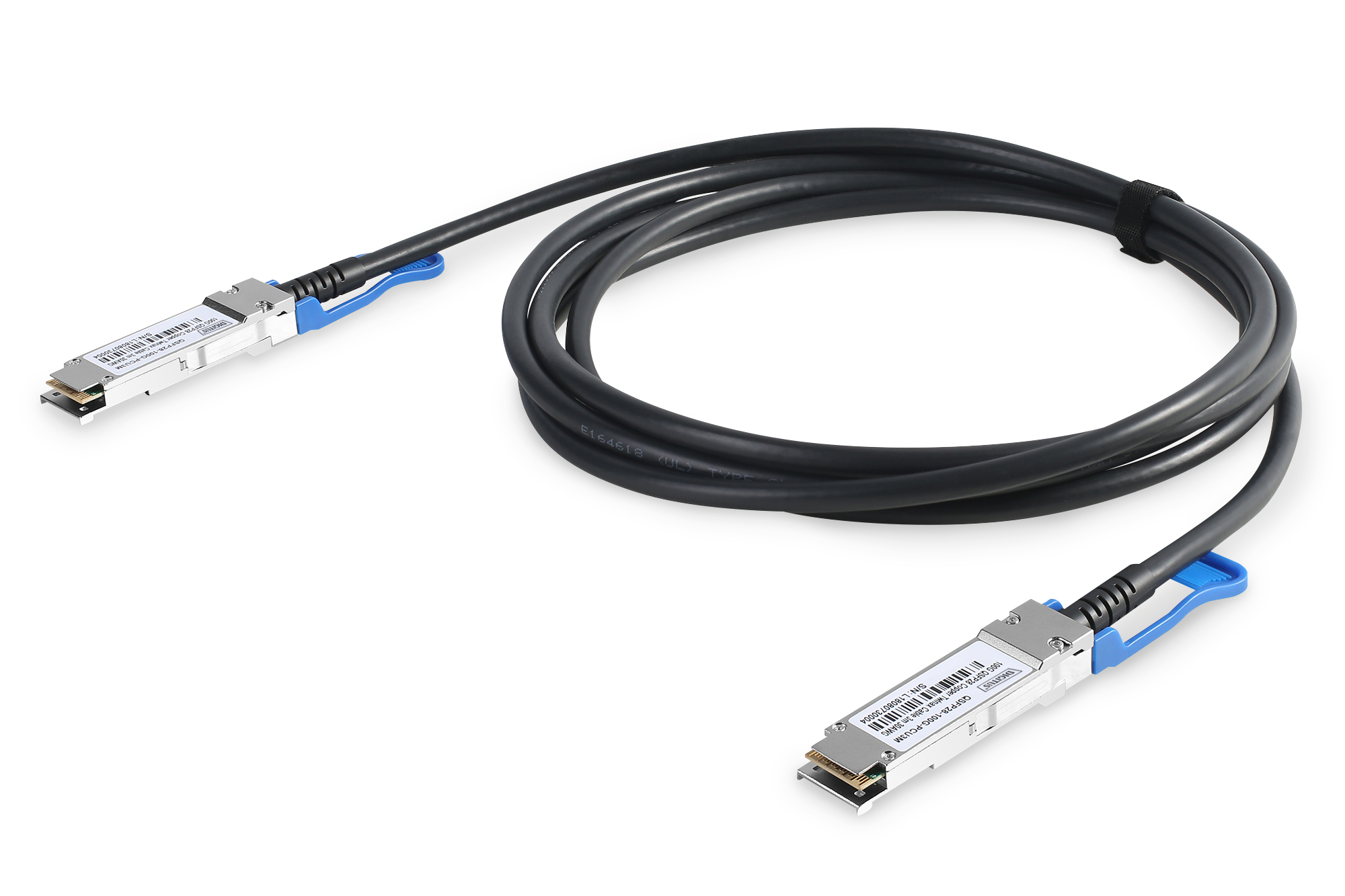

The Digitus® QSFP28 100G DAC cables are the ideal connection between switches in the backbone area. The 100G QSFP28 to QSFP28 Direct Attach Cable copper cable assemblies(DAC) are a low cost alternative for short reach applications. It is compliant with 100G Ethernet (100GBASE-CR4) specifications. It contains four high-speed copper pairs, each operating at data rates of up to 25GbE. So the QSFP28 DAC cable assembly is suitable for power-efficient connectivity for short distance interconnects, such as Data center, enterprise storage systems and High-Performance Computing.

TECHNICAL DETAILS
Transmission calbe length: 3m
Maximum aggregate data rate: 100Gb/s (4 x 25Gb/s)
Channel data rates : 28.3125Gbps
Compliant with the SFF-8665 specifications
Single +3.3V power supply
Wire AWG : 26
Type: Passive / Copper
End A =QSFP28 4X (SFF 8665)
End B = QSFP28 4X (SFF 8665)
Temperature Range : Operating: -0°C to +70°C
Storage Temperature : -40 to + 85°C
DDM Support: no
