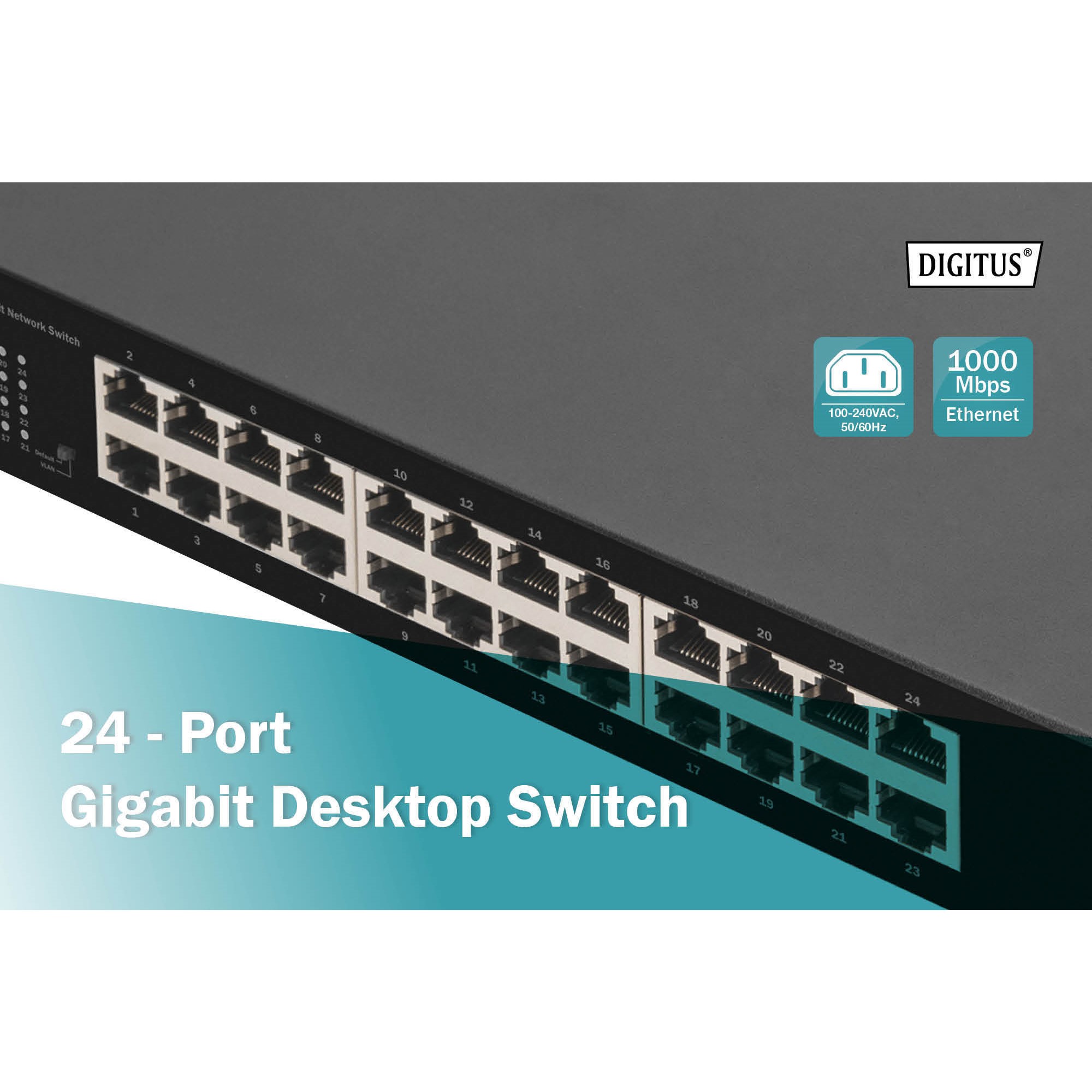

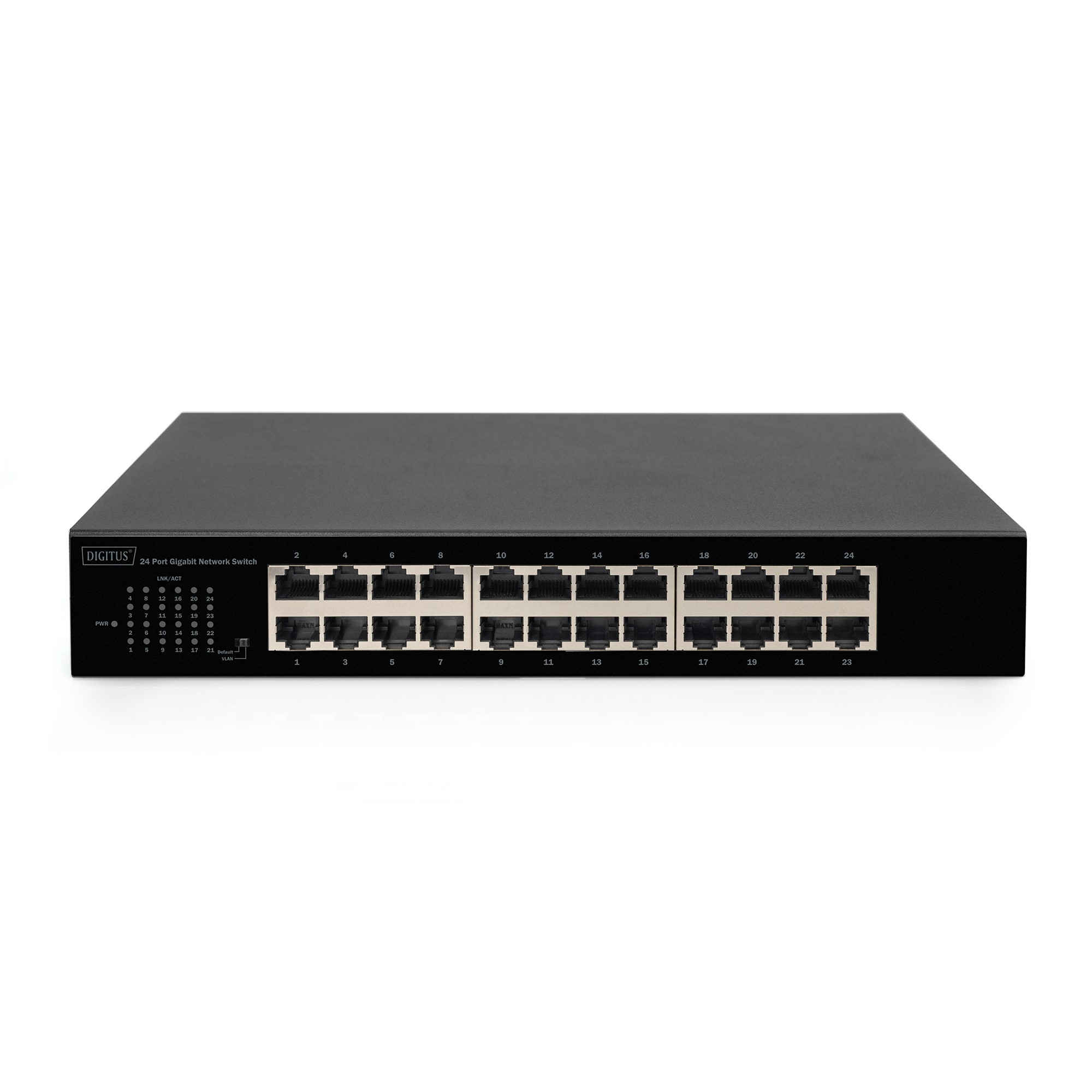

The DN-80113-1 has 24 10/100/1000 Mbps RJ45 ports, with port 23 and port 24 as the uplink ports. It uses store-and-forward technology in combination with the dynamic memory allocation for each port. The integrated VLAN function can improve the network environment and reduces network maintenance costs. The DN-80113-1 is easy to manage and maintain.

TECHNICAL DETAILS
Supports IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3az
Flow control for full duplex operation and back pressure for half duplex operation
Supports VLAN mode
LED lights for monitoring the operating status and for fault analysis
48 Gbps switching capacity
MAC address table: 8K
Supports jumbo frame up to 9216K bytes
Packet memory: 4.1 M Bit
Forwarding rate: 35.7 Mpps
Energy savings: IEEE 802.3az
LED display PWR (green), LINK / ACT: (green)
Number of ports: 24
Ethernet speed: Gigabit
Industrial usage: no
Managed: no
Outdoorsuitable: no
PoE (Power over Ethernet): no
Protection against vanadlism: no
VLAN: no

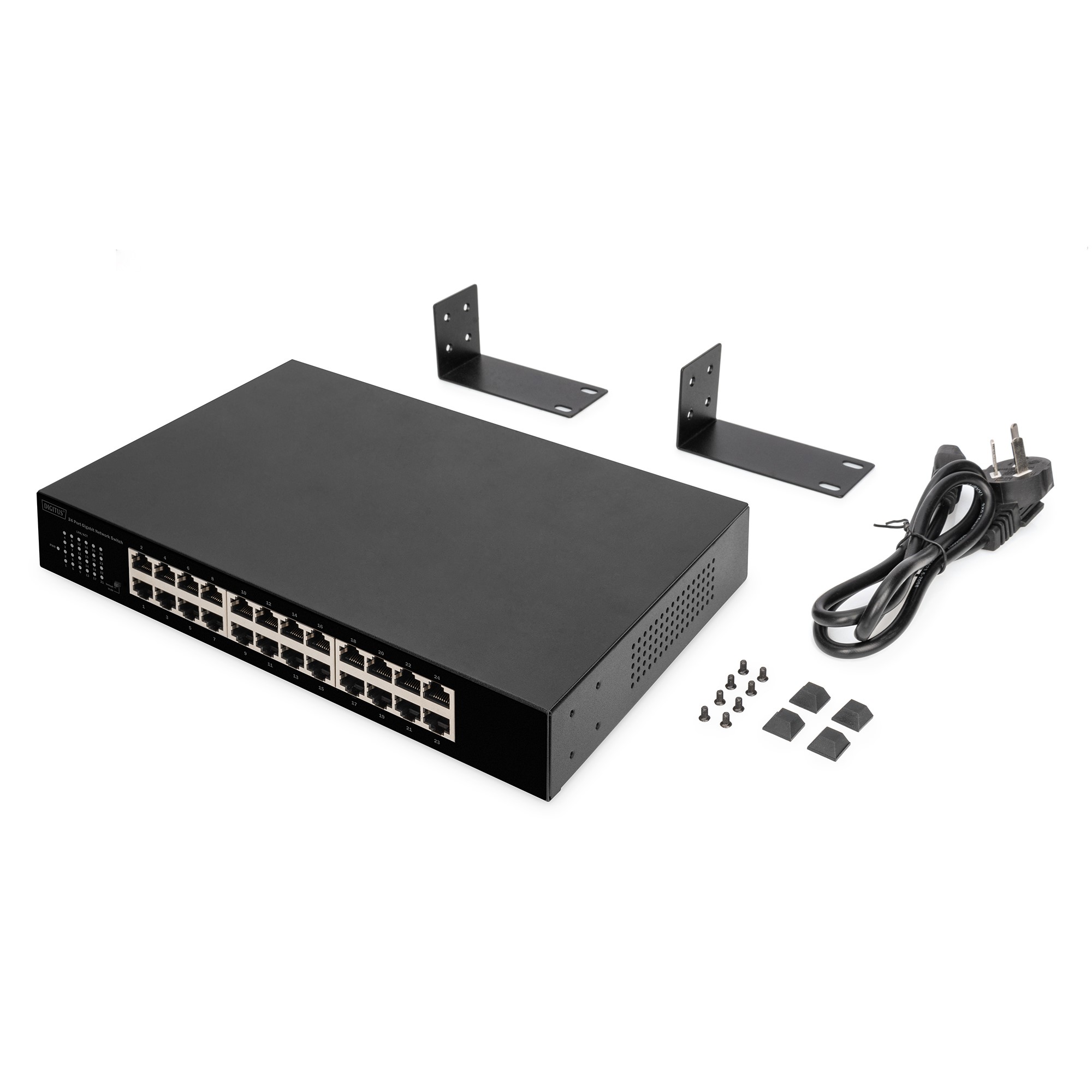

PACKAGE CONTENT
1x 24 Port Gigabit Network Switch
1x Connection cable
1x User manual
