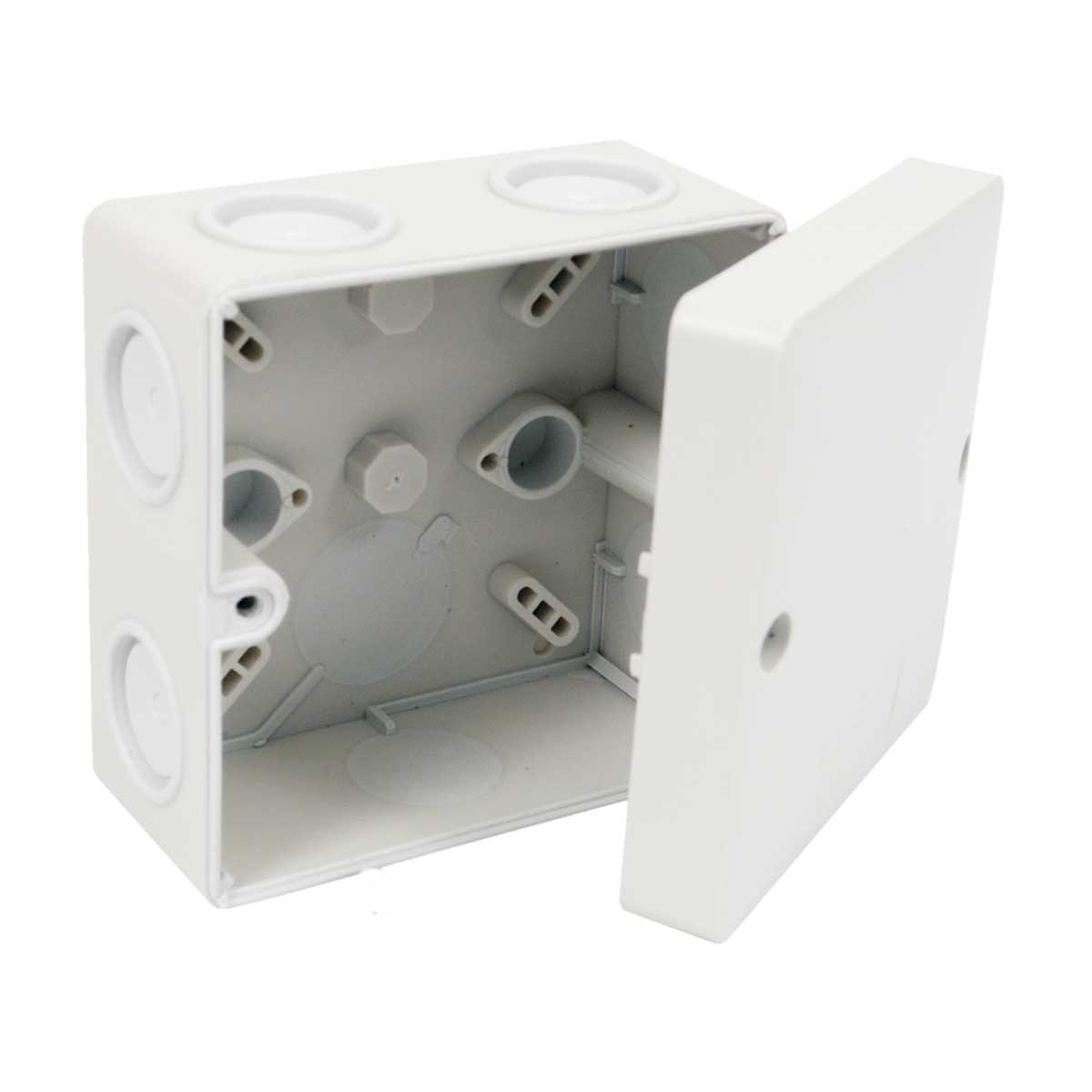

Intended for installation in environments that require IP 66 protection. Integrated knockouts for mounting on base. Intended for direct installation on the surface without having to support with insulating pad. Perfect sealing of cables and pipes, 8x knockouts with Ø20 mm. The stainless screws for lid installation and caps for the heads of the mounting screws are included in the package. Option to install special terminal plate (S-KSK 1). Integrated O-ring to install cable glands. Protected by Utility model trademark.

Weight 0,09 kg/pcs
Colour light grey RAL 7035
Material PP, lid - PA
Halogen free material yes
Leadless material yes
UV stable/UV stable material yes
Self-extinguishing 30 s
Rated voltage -= 400 V
Rated current -= 16 A
Temperature resistance -25 - 60 °C
Flaming loop test 850 °C

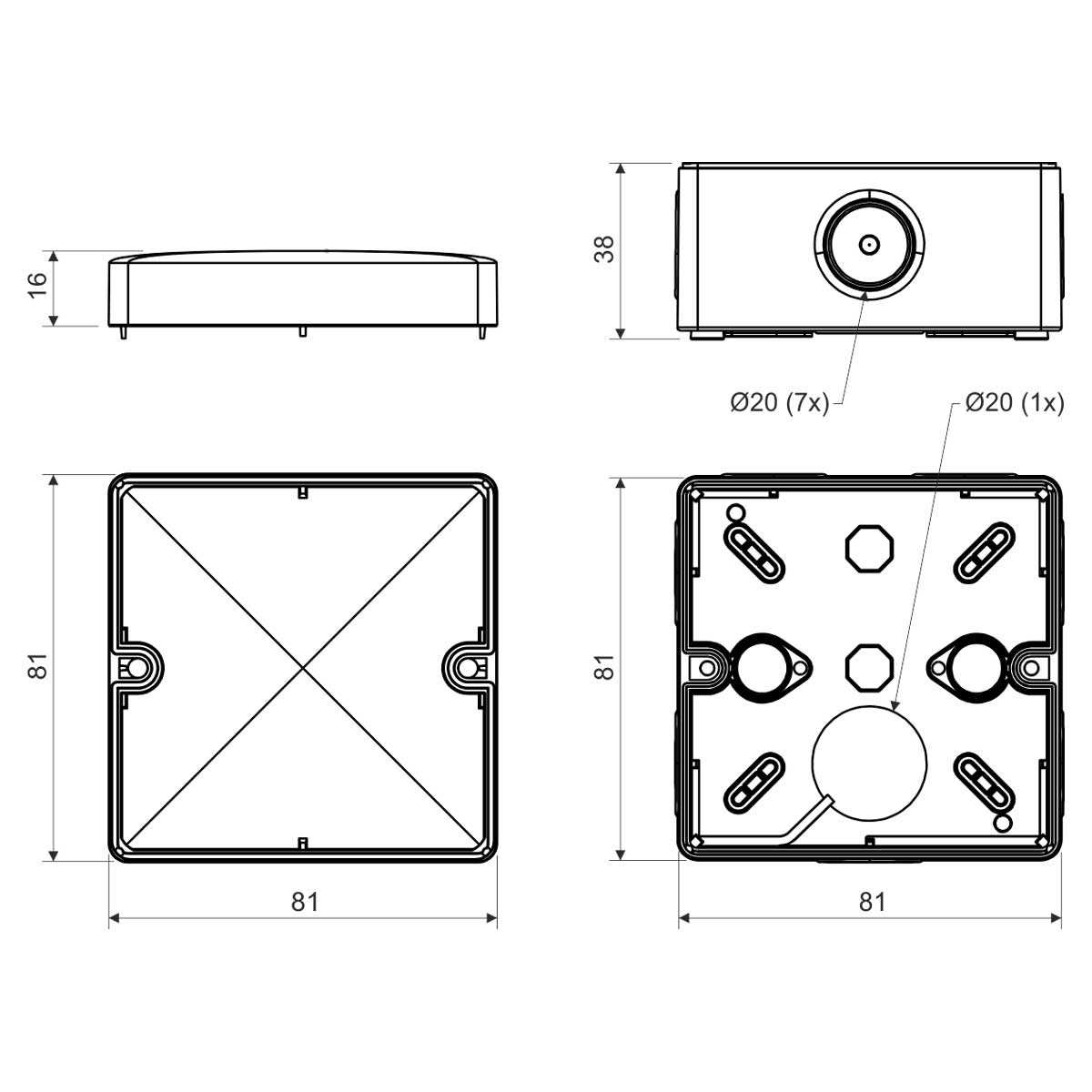

Width 81 mm
Height 81 mm
Depth 54 mm
Fire reaction class A1 - F
Protection types IP 66
Package description
the plug and lid screws inserted in the box, each box packed in shrink foil and labeled
