Weight 0,03 kg/pcs
Colour black
Material PC-ABS
Halogen free material yes
UV stable/UV stable material yes
Self-extinguishing 30 s
Temperature resistance -45 - 90 °C
Mechanical protection IK09
Pipe outside diameter 25 mm
Bending radius 85 mm
Funcionality in fire P90-R, E90, PS90
Area with explosion danger
Can be installed in a zone with the danger of explosion of flammable gases and vapors of zone 2 and into the zone of danger of explosion of flammable dusts of zone 22.
Fire reaction class A1 - F
Standards EN 61 386-2241, IEC 614-225
Fire resistance standards ČSN 73 0895, DIN 4102-12, STN 92 0205
For pipes 25

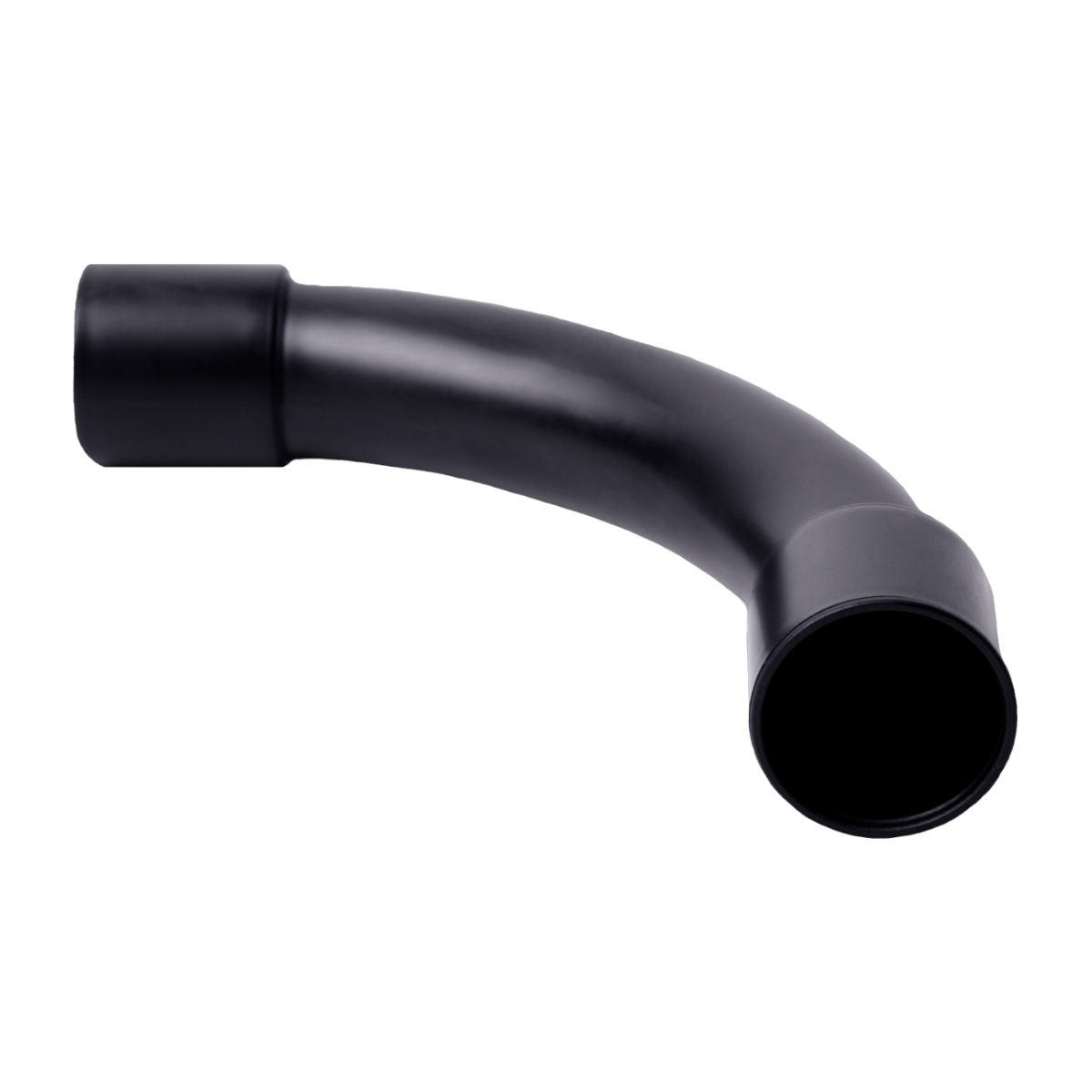

The elbows with double-sided necks are intended for 90° bends. Bending radius ensures smooth transition and allows easy retraction of wires and cables.

Note for system with maintained functionality in fire:
You find more information in the catalogue Systems with maintained functionality in fire.
