Product description

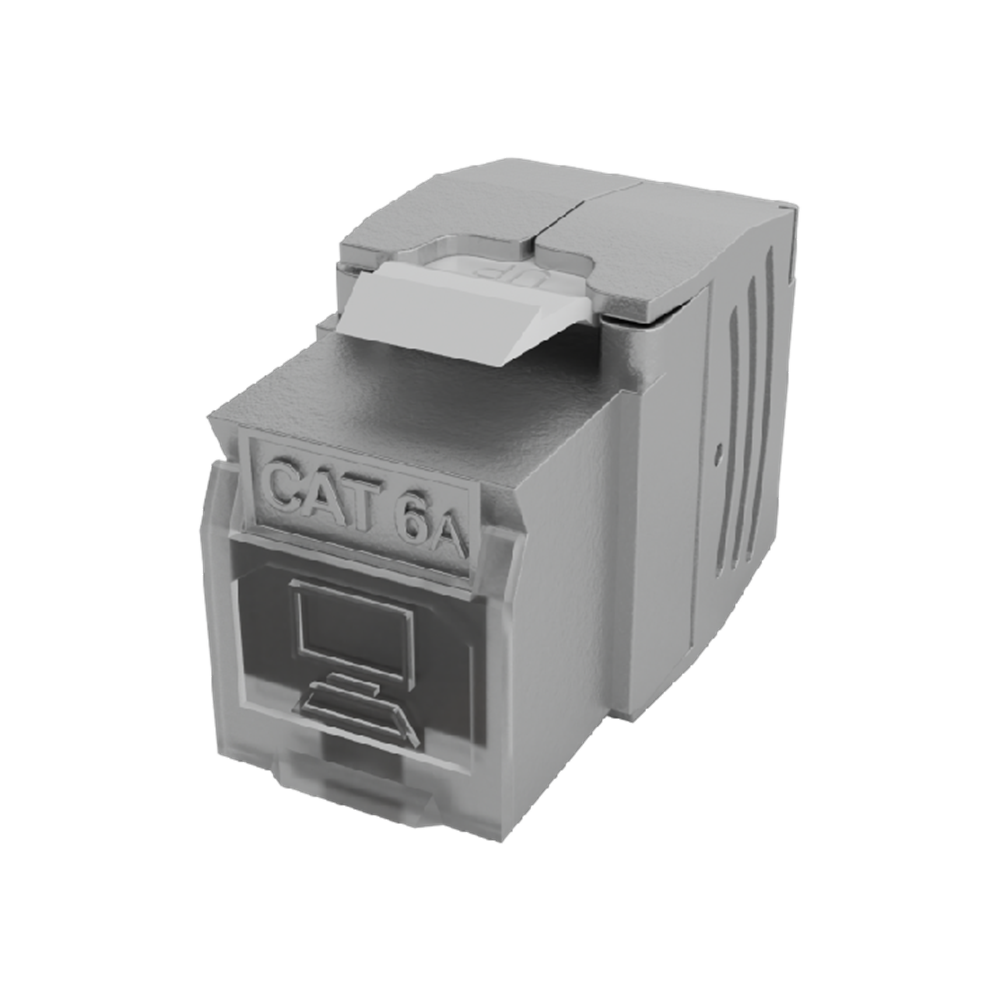

WireArte multifunction sockets are many capabilities in one piece.
Terminable without the use of specialized tools, they have the function of identification of the transmission path both through a removable, colored flap and special markers. A cover in the form of a flap protects against dust or splashing.
The module has the possibility of multilateral insertion of the installation cable. The method of cable insertion, straight or at an angle, is determined by the depth of cable routes. Cable insertion is done by means of an interchangeable guide, thanks to which the cable can be inserted from the side of the module, at an adjustable angle, every 45 degrees, as well as directly, from behind.
The guide significantly protects the terminated installation cables from installers error, pressure and bending that deteriorate transmission properties. Facilitates installation work in areas with shallow depths of installation boxes and conduits.
Typical mounting allows for use with equipment from many manufacturers.
Set includes 5 dust covers in colors:
black, red, blue, yellow and transparent
IMPORTANT advantage of ConSTRUCTIONAL: plugging in RJ11, RJ12 phone plugs does not cause damage to the socket, special design causes that connector pins do not deform.
Tested in INTERTEK independent testing lab.
Warranty type - 55 year system warranty
Compatibility » Keystone RJ45 socket
Verify the compatibility of RJ45 Keystone Modules of ALANTEC, Q-LANTEC and WireArte brands with the most popular system adapters on the market. Proper matching of the modules to the hardware guarantees the safety and reliability of the installation. The compatibility table illustrates which RJ45 socket modules made by A-LAN are compatible with the equipment of popular manufacturers of installation systems.
Compatibility » Keystone RJ45 socket
Technical Specifications
GENERAL
Category 6A
Class EA (500MHz standard) with extended characteristics up to 650 MHz / 10 Gb/s
Screen yes
Type toolless (however dedicated LSA cutter NI004 can be used for module termination)
BODY
Material Zinc oxide, conforming to EMC requirements according to EN 55022
SOCKET
Life time - 750 cycles
Life acc. to tests - 1000 cycles
Contact material phosphor bronze
Contact coating 50 μcal layer of gold on 40 μcal layer of nickel
Contact pressure 100 g per contact
Disconnection force 50N for 60s
SLOTTED COUPLING
Sequence 568A/B
Knife material phosphor bronze with 100 μcal tin layer
Accepts wires 22-24AWG
Body fire resistant plastic, according to UL 94 V-0
PCB BOARD
Material 1.6 mm thick FR4 laminate
ELECTRICAL PARAMETERS
Max. current 1,5 A
Insulation resistance 500 MΩ @ 100 Vdc
Voltage resistance 1000 Vac RMS @60Hz for 60s
Contact resistance 20 mΩ
IDC knife resistance 2.5 mΩ
POE POWER SUPPLY
Type PoE, PoE+, 4PPoE
TEMPERATURE RANGE
Storage -40oC to +75oC
Operating -20oC to +75oC
HUMIDITY
Max. 93%
