DIGITUS Network Set - 254 mm (10-) - 12U, 312 x 300 mm (W xD)
Product number: DN-10-SET-3
EAN: 4016032477518

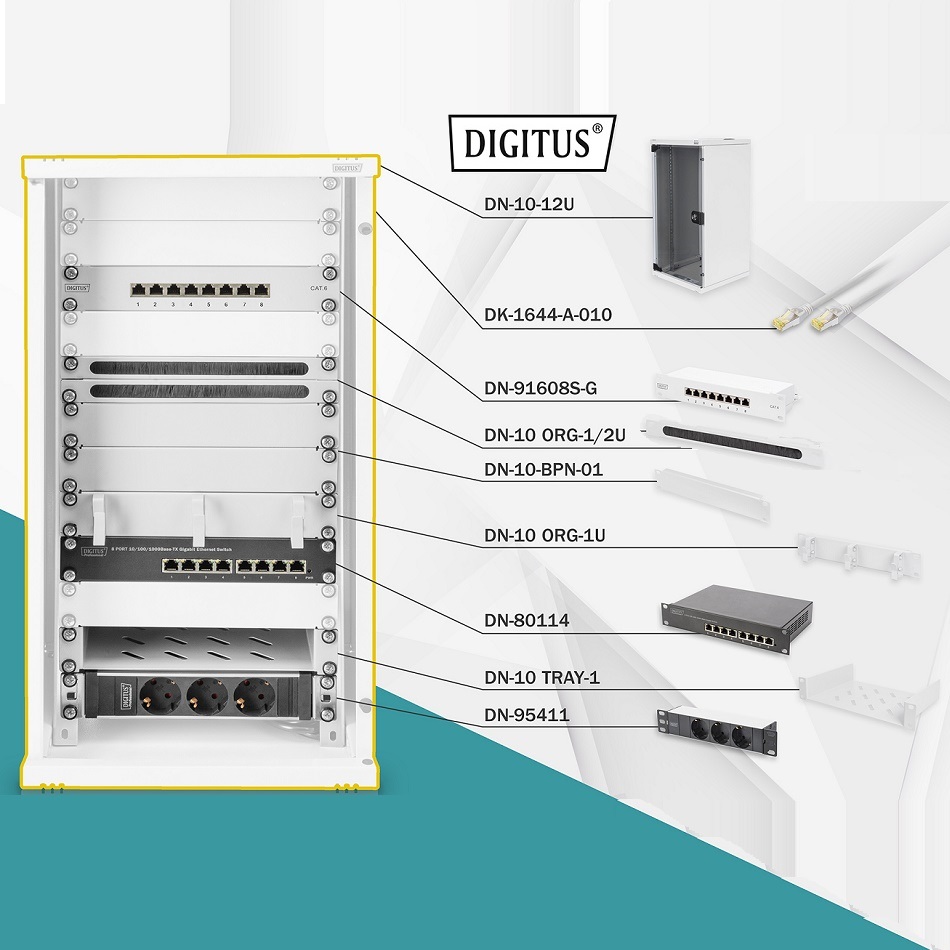

10 inch network bundle, incl. 12U cabinet, grey and various components

Complete set to build up a compact 254 mm (10-) network incl. cabinet, shelf, power strip, switch, patch panel, patch cable, dummy cover and cable management

Including wall housing, 12HE, 592 x 312 x 300 mm (DN-10-12U)

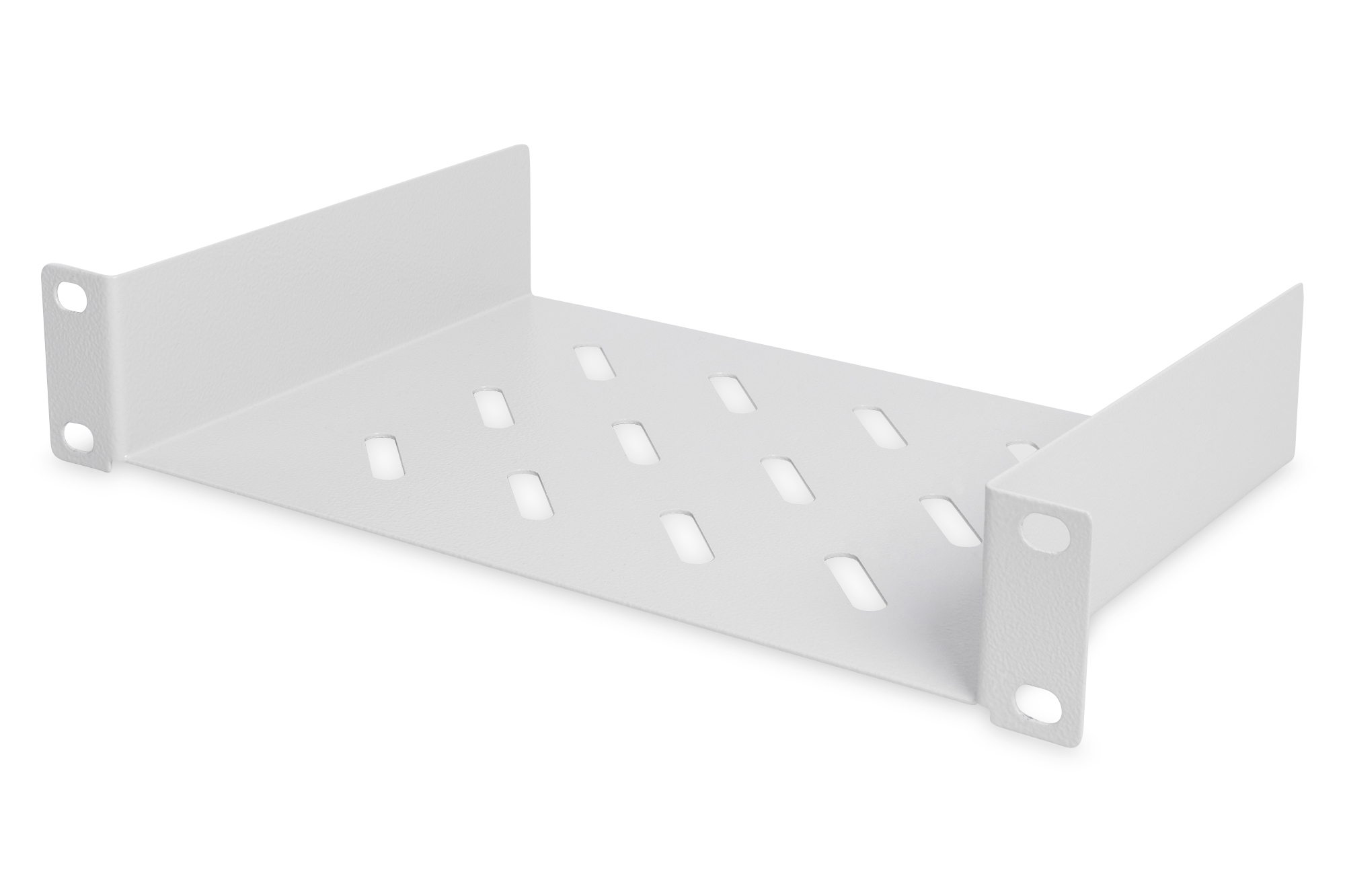

Including shelf, 1HE (DN-10 TRAY-1)
Including power strip, 1HE, 3x safety socket (DN-95411)

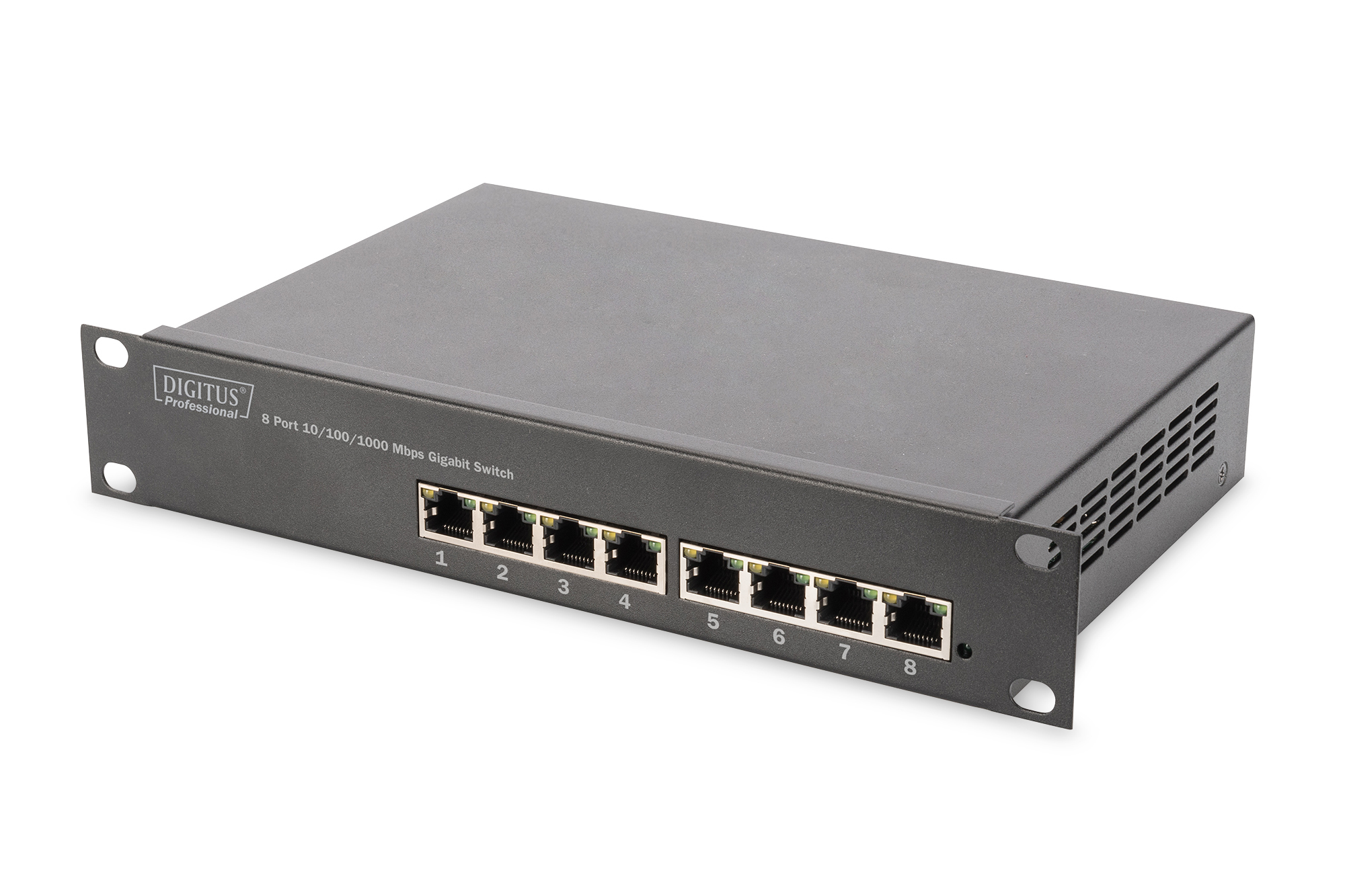

Including Gigabit Ethernet Switch, 8-port (DN-80114)

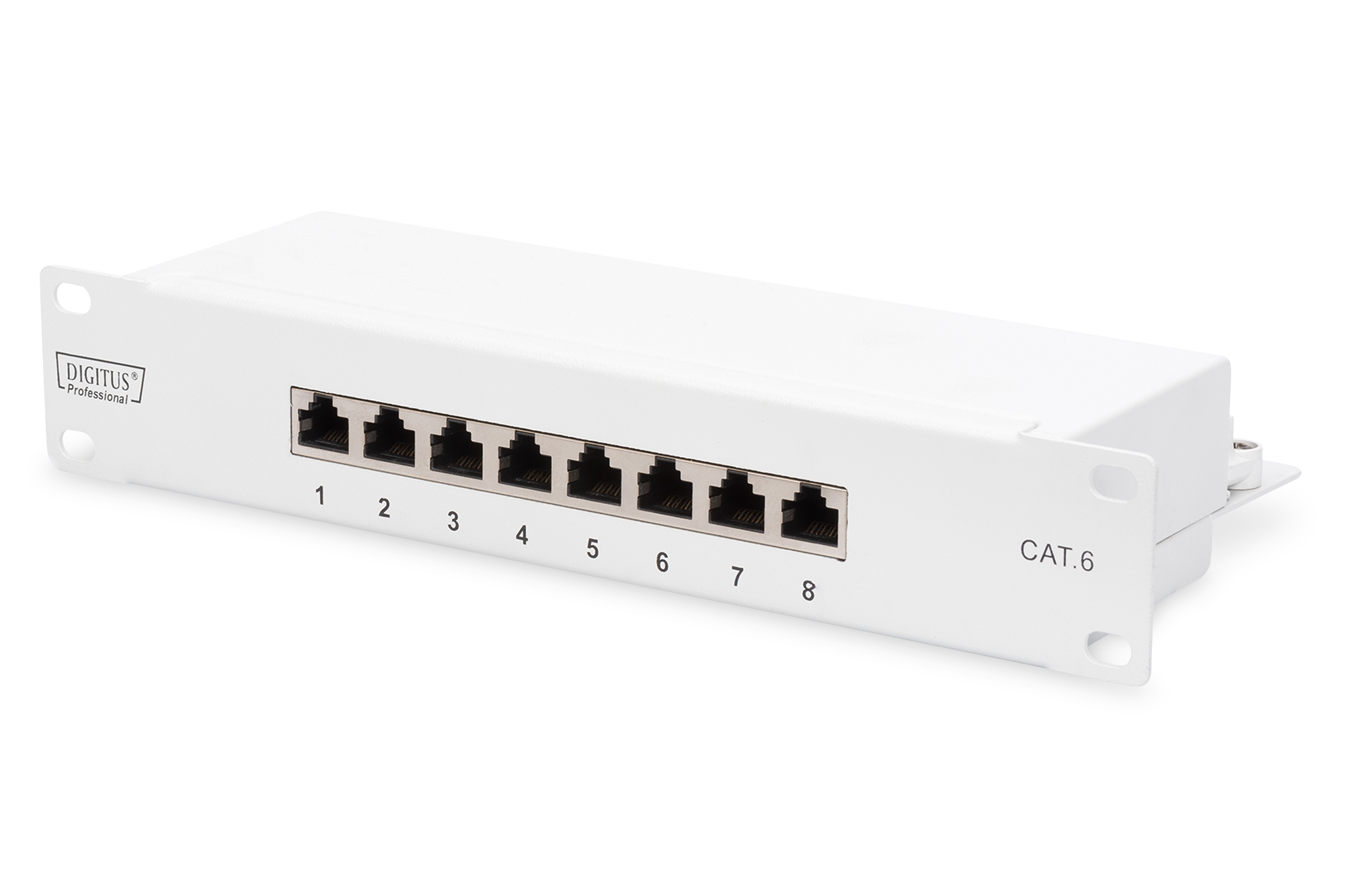

Including CAT 6, Class E, Patch Panel, 8-port, screened (DN-91608S-G)
Including 10 x CAT 6, Cable E, S-FTP patch cable, 1 m (DK-1644-010)
Including dummy cover, 1 rack unit (DN-10-BPN-01)
Including cable brush strip (DN-10-ORG-1/2U)
Including cable management panel (DN-10-ORG-1U)

DESCRIPTION
Whether for private areas, office or sub-distribution units with limited space: With the compact 254 mm (10”) solutions, you can install your network wherever you like. The wall housings available in three rack units (6 rack units, 9 rack units, 12 rack units) are supplemented in these network sets by perfectly coordinated components to ensure fast and easy usability of IT cabling. The network cabinet and relevant accessories (such as switch, patch panel, socket strip, shelf, cable guidance panel, patch cable, etc.) are delivered in a compact box.

TECHNICAL DETAILS
Wall housing dimensions (H x W x D): 592 x 312 x 300 mm
Power strip with 3 safety plug sockets 250VAC 50/60Hz / 16A / 4000W
Power strip with 2 m mains cable H05VV-F 35 1.5 mm² with safety plug sockets
Switch complies with network standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3x
Patch panel for applications up to 250 MHz, 1GBase-T
Cable installation on patch panel via LSA rails, color coded in accordance with EIA/TIA 568 A - B
CAT 6 S-FTP Patch Cable, Cu, LSZH AWG 27/7, Length 1 m, Color gray
1 rack unit dummy cover plate, 45 x 255 x 10 mm, gray (RAL 7035)

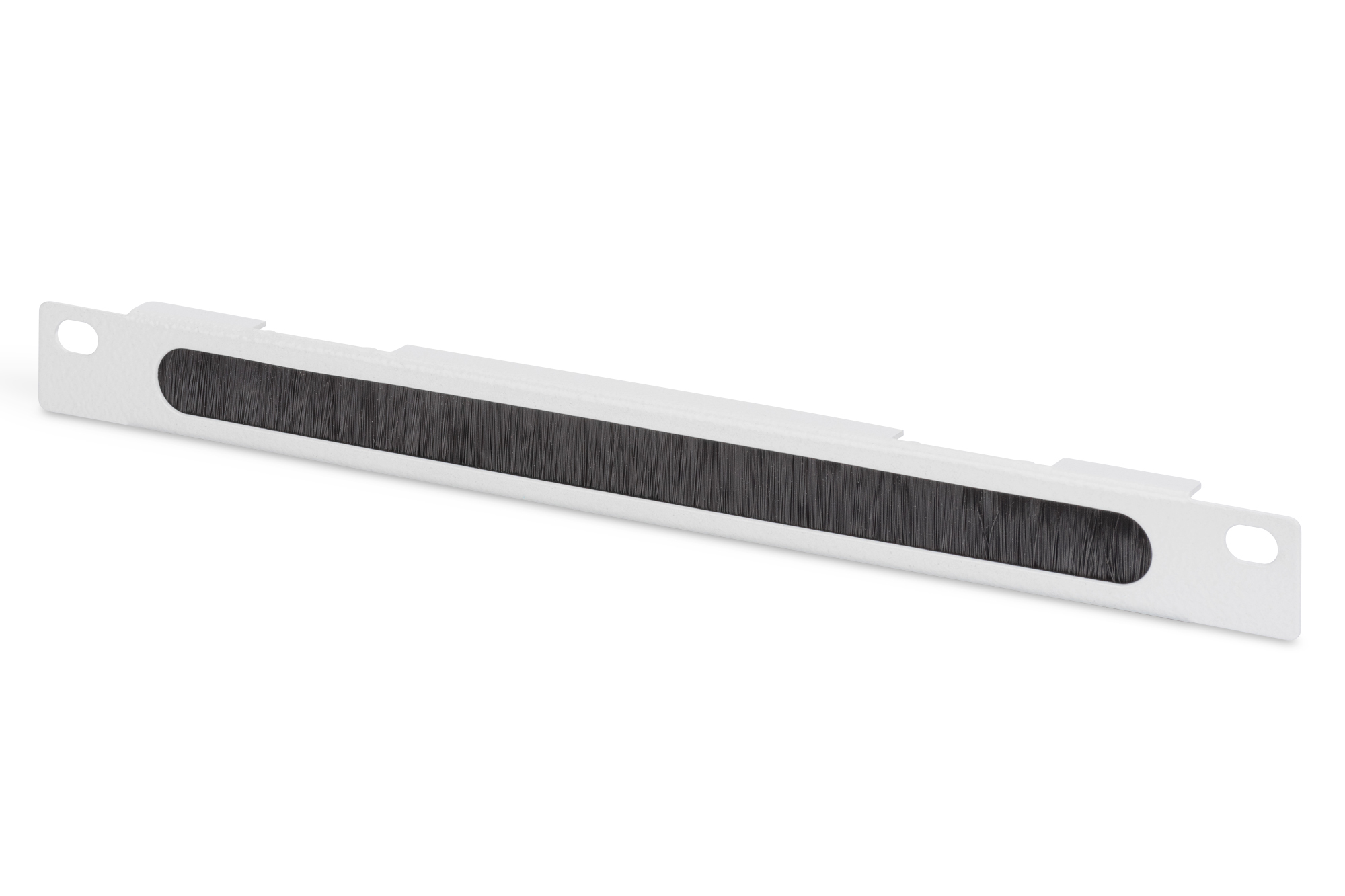

0.5 rack unit cable brush strip, 22 x 254 x 12 mm, gray (RAL 7035)

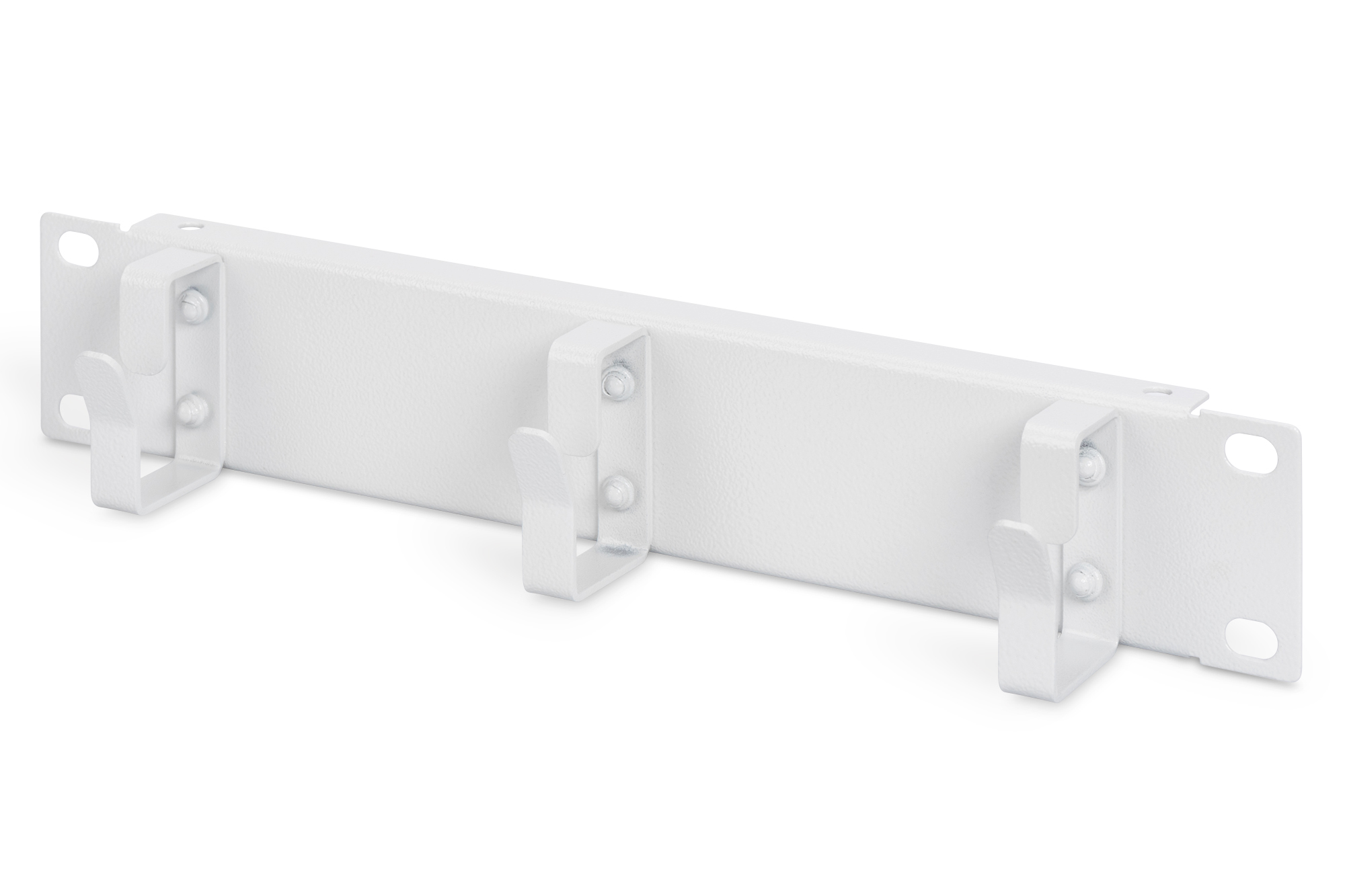

1 rack unit cable management panel, 3x cable rings, 44x254x60 mm, gray (RAL 7035)
Cabinet type: Wall mounting cabinet
Color: light grey, RAL 7035
Depth: 300 mm
Front door: Glass door, single opening
Load capacity: 30 kg
Side panels: Both sides
Units: 12
Width: 312 mm
IP protection class: IP20
Mounted: yes
PACKAGE CONTENT
1x wall mounting cabinet
1x shelf
1x power strip
1x network switch
1x patch panel
10 x patch cable
2 x dummy cover
2 x cable brush strip
1 x management panel
2 x keys
