DIGITUS Cat.7 S/FTP installation cable, 1000 m, simplex, B2ca
Product number: DK-1745-VH-10
EAN: 4016032435891

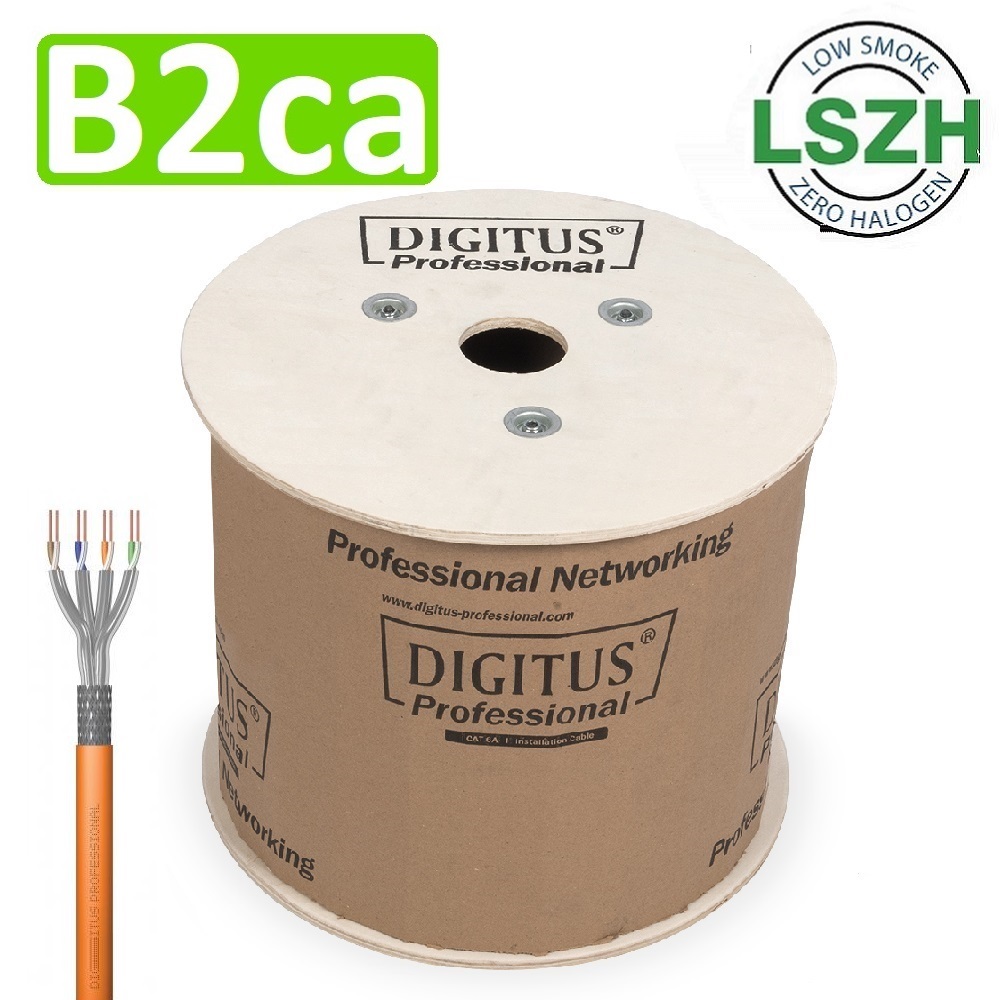

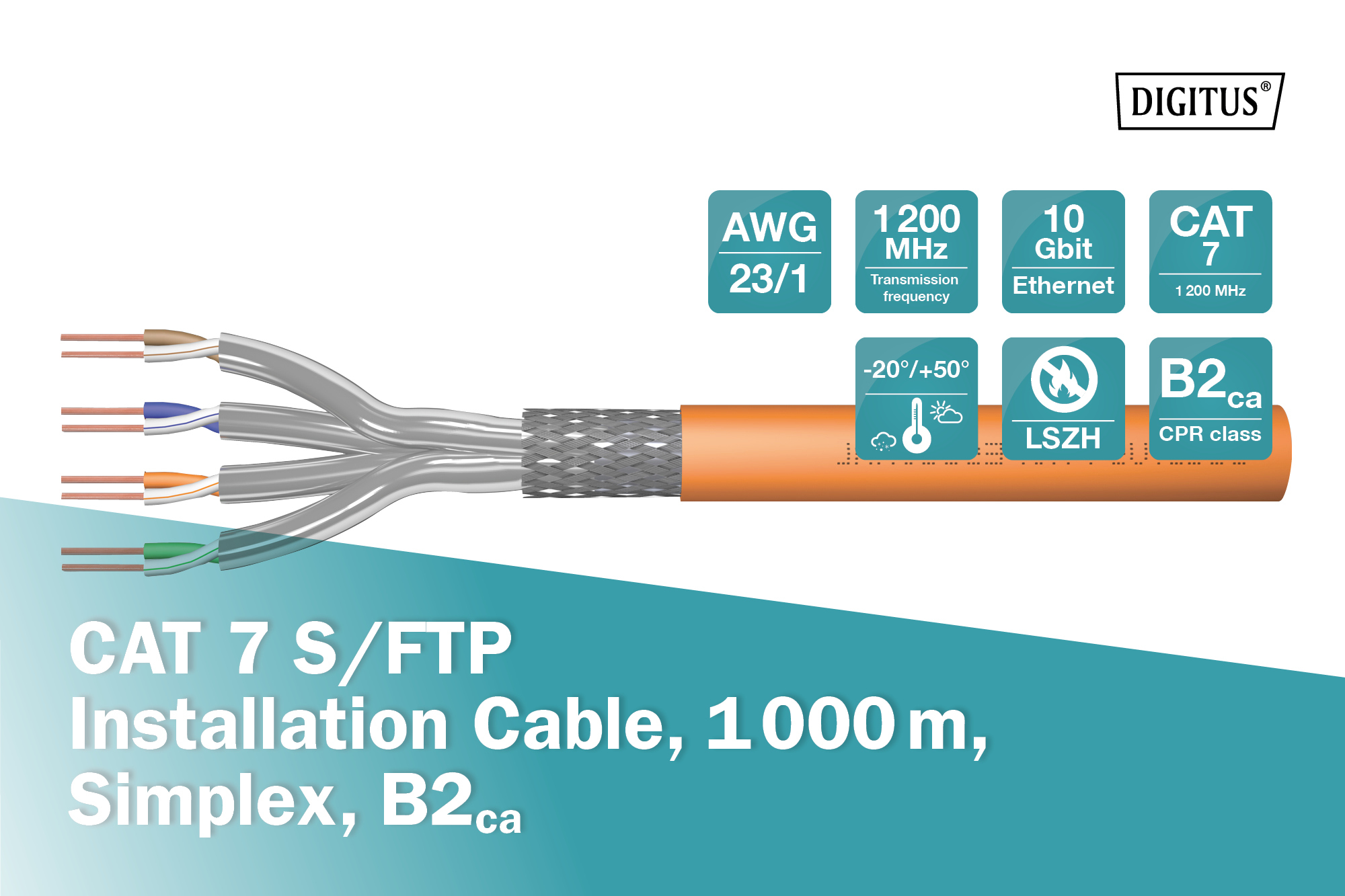

CAT 7 S-FTP installation cable, 1200 MHz B2ca (EN 50575), AWG 23/1, 1000 m drum,

Future-oriented standards and high-end quality for your network.

10GBit Ethernet
1200 MHz transmission frequency
Permanent link certified
PoE Power over Ethernet support
CPR class B2ca (check DoP for further classification)

Description
The Digitus Cat 7 installation cable is designed for use in the structured data center and the building cabling according to ISO/IEC 11801, DIN EN 50288-4-1, DIN EN 50173, IEC 61156-7, EN 50288-9-1. The cable is perfectly suitable for the transmission of both analog and digital data and also supports POE and POE+. The shielding structure is composed of single shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values.

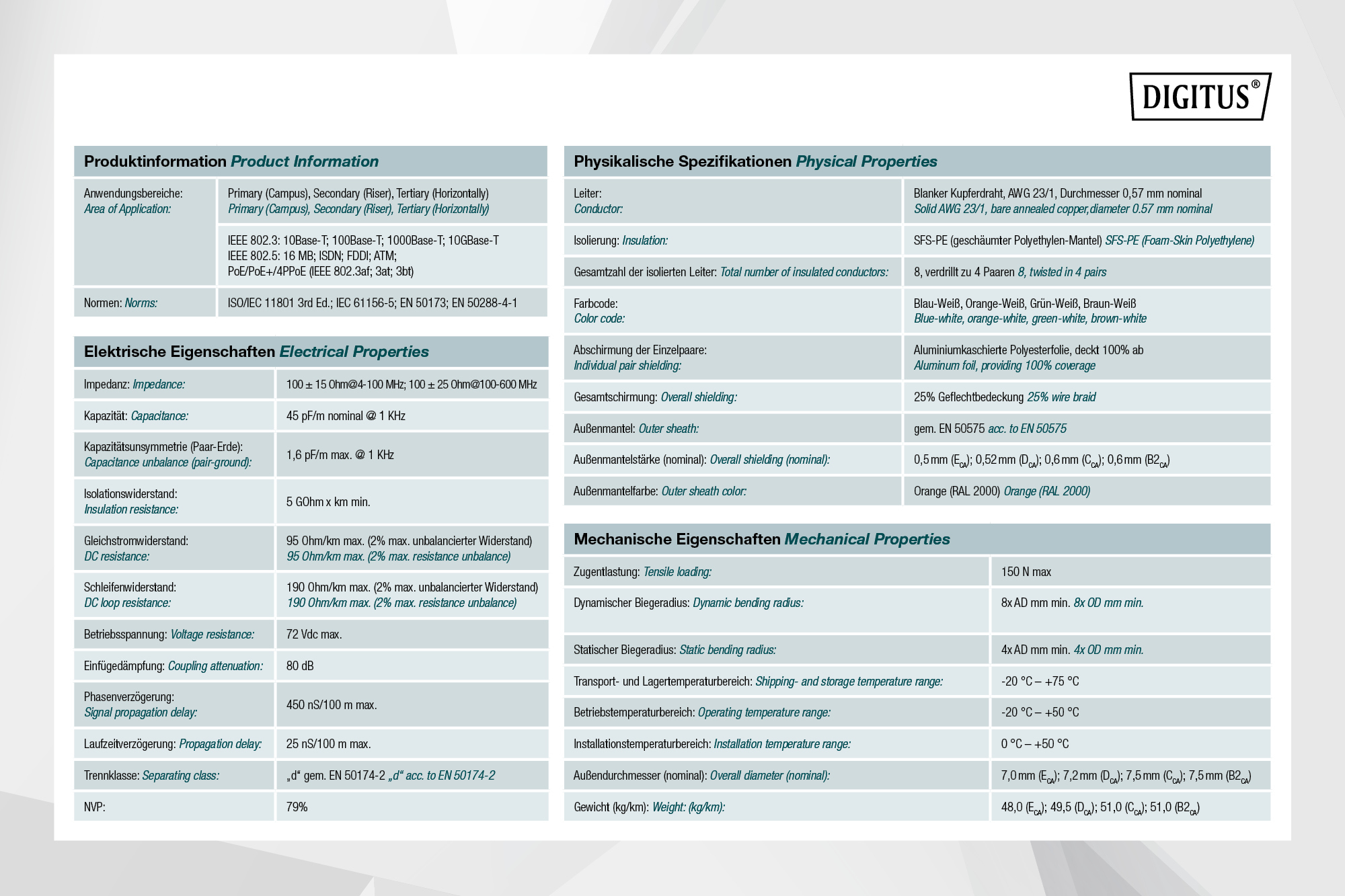

Technical details
Physical properties:
Conductor: Bare copper wire, AWG 23/1
System(s) of assessment and verification of constancy of performance: System 3
Insulation: SFS-PE (foamed polyethylene jacket)
Total number of insulated conductors: 8, twisted into 4 pairs
Color code: Blue-white, orange-white, green-white, brown-white
Shielding of the individual pairs: aluminum-laminated polyester film, covers 100%
Overall shielding: copper braiding
Outer sheath: Eca to B2ca in accordance with EN 50575; LSZH
Outer sheath thickness (nominal): 0.50 mm (Eca); 0.52 mm (Dca); 0.60 mm (Cca); 0.60 (B2ca)
Color: Orange (RAL 2008)
Mechanical properties:
Strain relief: 150N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Transport and storage temperature range: -20 °C to +60 °C
Operating temperature range: -20 °C to +50 °C
Installation temperature range: 0 °C to +50 °C
Outer diameter simplex (nominal): 7.0 mm (Eca); 7.2 mm (Dca); 7.5 mm (Cca); 7.5 mm (B2ca)
Weight (kg/km): 49.5 kg (Eca); 51 kg (Dca), 53 kg (Cca); 53 kg (B2ca)
Electrical properties:
Impedance: 100±15 Ohm @ 4 - 1000 MHz; 100±25 OHM @ 100-600 MHz
Capacitance: 45 pF/m nominal @ 1 KHz
Capacitance unbalance (pair-earth): 1.6 pF/m max. @ 1 KHz
Insulation resistance: 5 GOhm x km min.
DC resistance: 95 Ohm/km max. (2% max. unbalanced resistance)
Loop resistance: 190 Ohm/km max. (2% max. unbalanced resistance)
Operating voltage: 72 Vdc max.
Outer sheath: Dca-s2 d1 a1 according to EN 50575; LSZH
Coupling attenuation: CA-Type 1b
Phase delay: 450 nS/100 m max.
Time delay: 10 nS/100 m max.
Separation class: -d- according to EN 50174-2
NVP: 79%
Assortment: Twisted Pair Installation Cables
Category: CAT 7

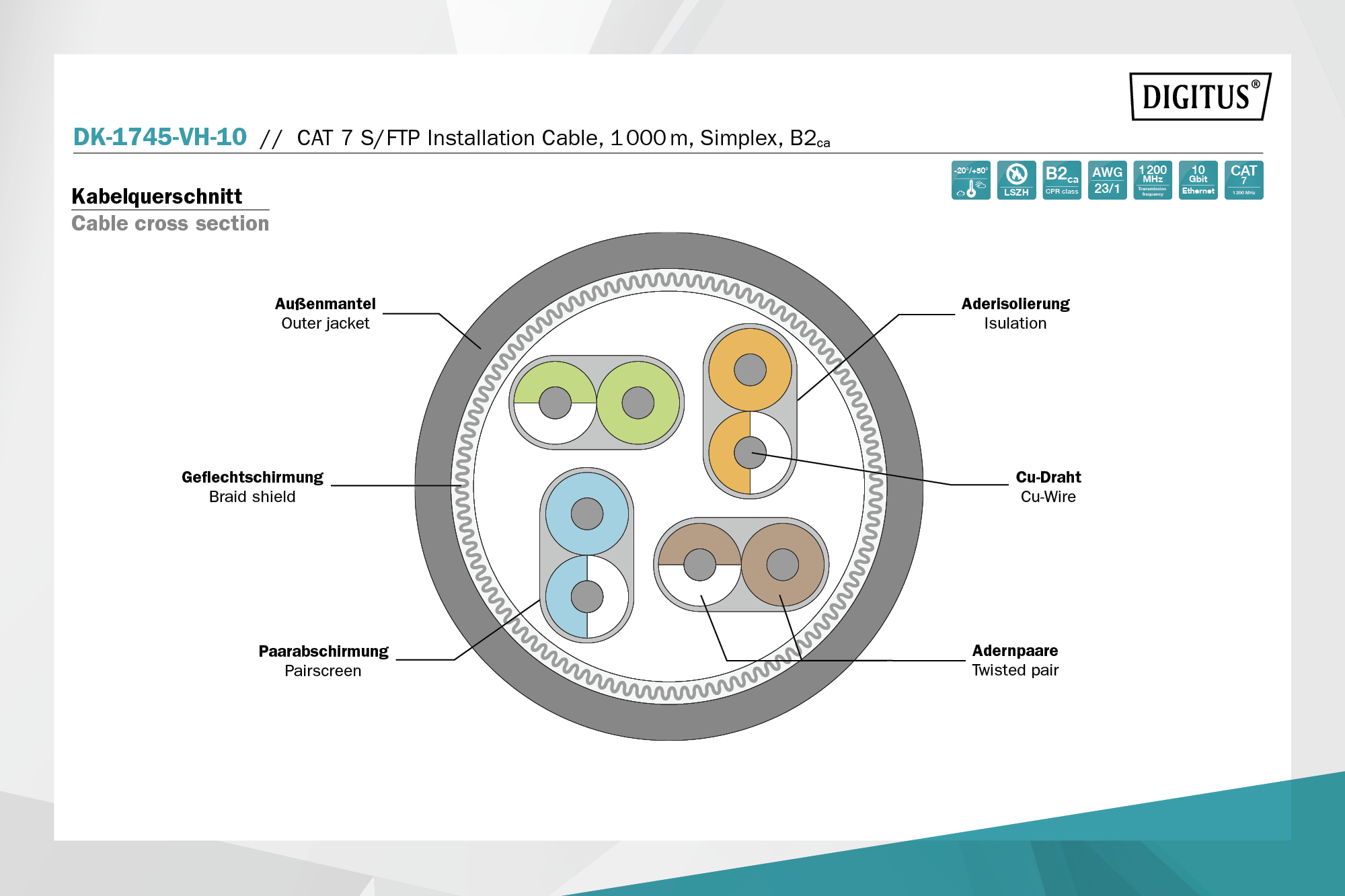

Shielding: S-FTP, pairs in metal foil and braid shielding
CPR: B2ca
Length: 1000 m
Color: orange
Jacket: LSOH
Structure: 4 x 2 AWG 23/1, solid twisted pair
