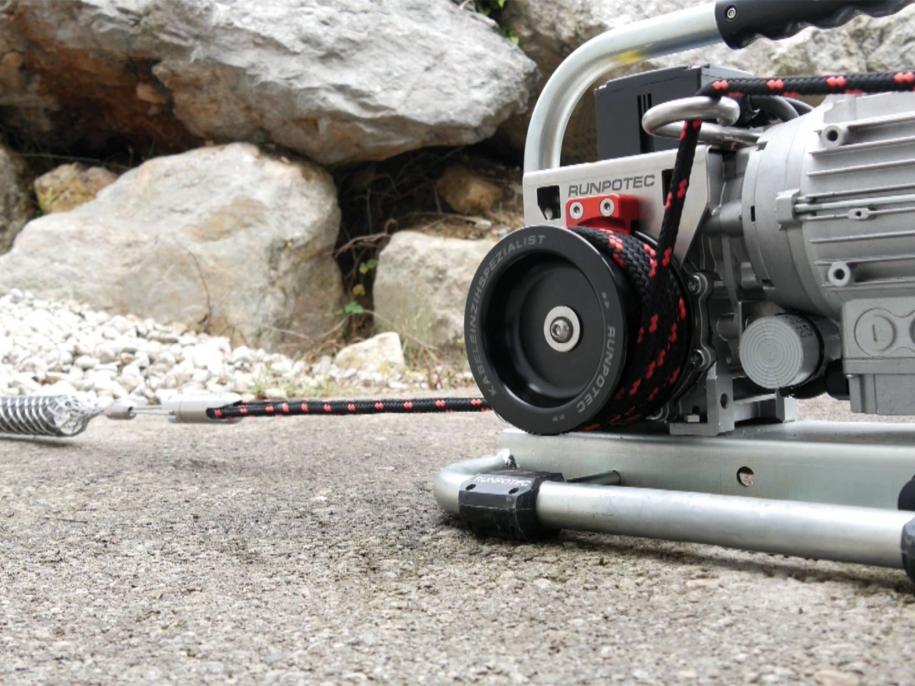

Ideal for pulling one or several cables horizontally. Where in other cases several people are required for higher tensile loads, the Capstan winch CW 800 E by RUNPOTEC can be operated by one person to pull either 800 kg or 400 kg.

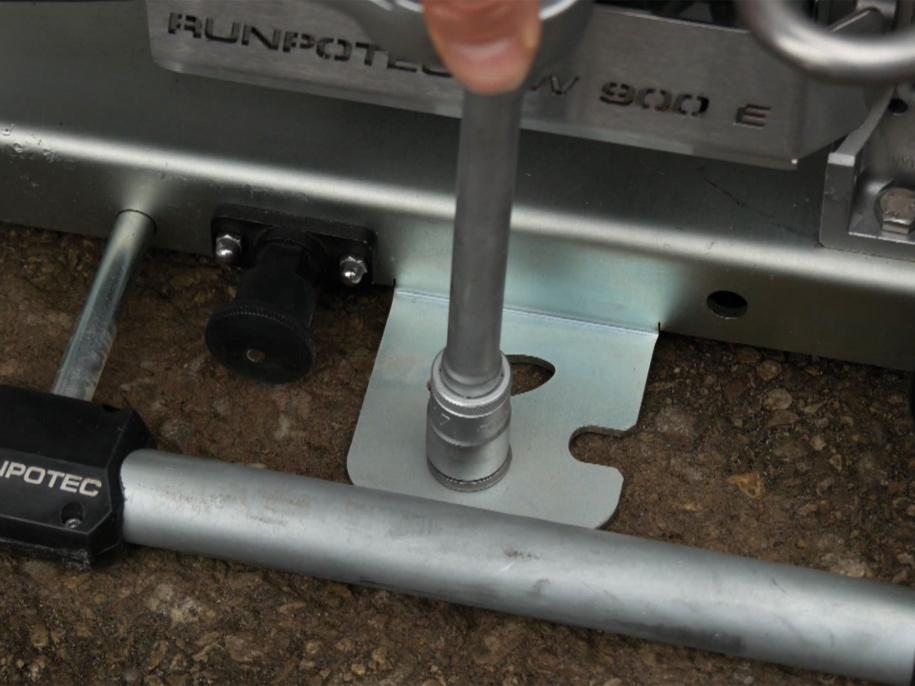

The capstan winch can be fixed in place via the mounting holes, or attached to solid objects using the enclosed strap. The trolley mounting rail is another very convenient fastening option. A special coupling opening enables it to be attached to a car’s trailer hitch.
It is also possible to mount the rail vertically or horizontally to enable the CW 800 E capstan winch to be suspended with ease and attached via the two fixing bolts.
WHERE -TO-USE VIDEO:
A short but highly informative demonstration-video where to use the device can be viewed by scanning the QR code on the data sheet (top left) or visiting www.runpotec.com


Dimensions: L 1000 x B 370 x H 330 mm
Weight: 41,20
Strap length: 3 Meter
Motor connection: 230 V / 50 Hz
Motor drive power: 0,75 KWh / 5,1 A
Motor speed: 1400 U / min
Capstan (Small) Pulling force: up to 800 kg at 4m per min.
Capstan (Large) Pulling force: up to 400 kg at 8m per min.
Protection rating: IP 55
