DL-SE 10-200/T-EN54-C
frameless design
also suitable for very thin ceilings
WAGO terminal block 221

Designer ceiling-mounted loudspeaker with metal fire bowl for voice alarm, certified according to EN 54-24, suitable for voice announcements and background music with very good sound quality in buildings.

The frameless design of the new ceiling speakers is inspired by current LED lighting and already has the potential to become a classic. The 10W speaker is equipped with a 200mm full-range driver and a 100V transformer with three power settings. The plastic-coated metal construction with a perforated grille in RAL 9016 guarantees lasting stability. The speakers moisture-proof treatment ensures additional operational reliability.

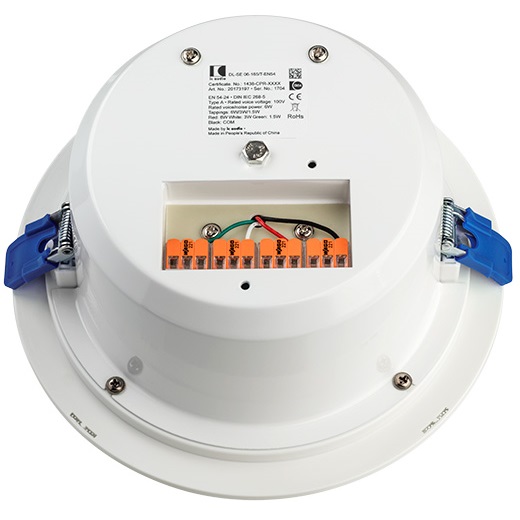

The speaker is also protected against environmental influences with protection class IP 21C. Quick and easy installation is enabled by the WAGO 221 terminal block. The spring-loaded snap-in connection with short clamping stroke facilitates effortless installation. Protective caps on the spring ends minimize potential vibrations.

The connecting cables can be fed to the loudspeaker via a rubber grommet in the fire pot.

Custom paint finishes for the speaker in a 4-digit RAL or NCS color are available for an additional charge. The fire pot is included with the speaker.

This speaker is suitable for ceiling thicknesses of approximately 1-45 mm. Our specifications primarily apply to solid ceilings; for soft ceiling materials, greater ceiling thicknesses may be necessary. Thicker cables and other installations may also change the relevant specifications. Given the wide variety of materials and manufacturers, we recommend installing a sample in the intended ceiling material to achieve optimal results.
