DK 10/T-EN54-PG | Horn speaker. 10 watts (100V & 20ohms). RAL 7035. ABS. with thermal fuse and ceramic block

< BACK

SECURITY SYSTEMS > MASS NOTIFICATION SYSTEMS > ANNOUNCEMENT SYSTEMS LOUDSPEAKERS > LOUDSPEAKERS EN 54-24 > HORN SPEAKERS EN 54-24

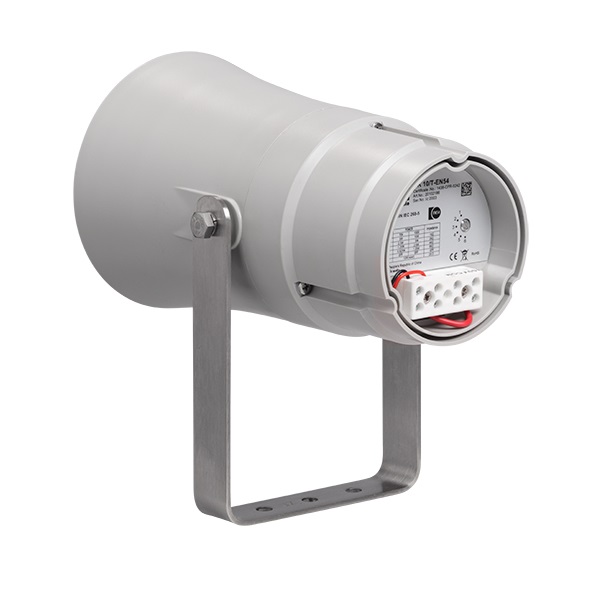

DK 10/T-EN54-PG | Horn speaker. 10 watts (100V & 20ohms). RAL 7035. ABS. with thermal fuse and ceramic block

Product appearance may be different from picture

PRICE

€ 0.00 / pcs

inc. VAT

excl. VAT

Not available

Article:	20205823-PG_ICAUDIO
Manufacturer:	ic audio
Web:	katalog.ic-audio.com...

Specifications, Certificates and declarations

Only for registered users

Description

DK 10/T-EN54-PG
High sound pressure level
Weather-proof
BS 5839

Weather-proof horn speaker for voice alarm applications, certified according to EN 54-24, suitable for industrial indoor and outdoor use with high sound pressure level.

The 10W powered speaker is equipped with a 100V line transformer with 4 power adjustments, also low-impedance operation (20 ohms) is possible. The impact-resistant ABS housing UL94V0 in RAL 7035 guarantees long-term stability. For additional reliability, a ceramic block and a thermal fuse are provided.

The speaker is also secured with the high protection class IP 66 against the security risks of environmental influences. The speaker is compliant with the British Standard BS 5839, Part 8.

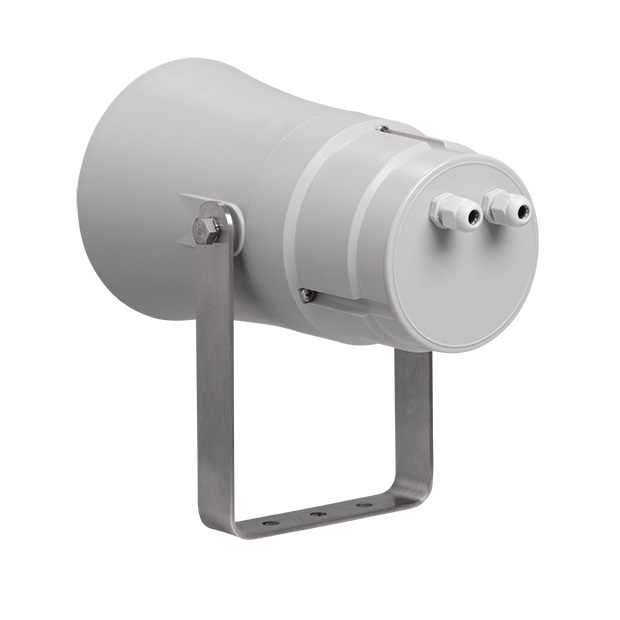

The PG11 cable glands on the back of the speaker allow quick and easy connection.

Included is a U-shaped, stainless steel universal mount for flexible installation. Optionally available is a mast bracket (MB) for approx. 90-200 mm mast diameter.

To operate the product according to EN 54-24, an equalizer has to be used as described in the user manual.
